Description

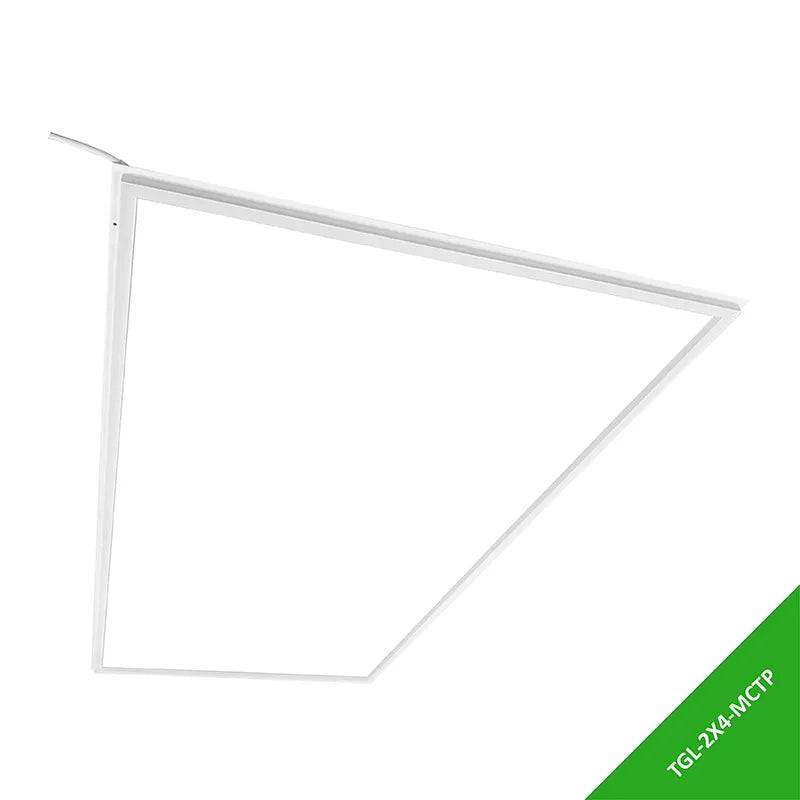

Westgate TGL 2x4 35W/45W/54W LED T-Bar Grid Light, CCT
The LED Frame Light luminaire is a new design that creates innovative and outstanding lighting performance available to replace the 2x4 LED panel. It has a modern design and is easy to install. Ideal for new construction and remodeling/replacement of fluorescent troffers or LED panels in commercial office spaces, schools, healthcare facilities, and retail merchandising areas compact ultra-thin appearance, simple installation, and outstanding performance. Assembling type in an individual package is easy to take away.
- :: Extruded Aluminum with White Finish
- :: High-quality LED chips provide high efficiency, heat dissipation, stability and lumen maintenance
- :: Performance lens assembly delivers unique beam angles and reduces glare
- :: Driver/Junction box is separate and connects to the fixture with a 3Ft. Dongle.
- :: Driver/Junction box installs on adjacent grid, on top, using your choice of T-Bar bracket or Westgate T-Bar bracket model (ELB-TBAR1)
- :: Driver disconnect provided where required to comply with US and Canadian codes
- :: Surge protector
- :: Multi-Color temperature & Multi-Power (Selectable switch in driver box)
- :: Dimmable: 0 ~ 10V Driver for continuous dimming
- :: Lumens: 4050LM/5250LM/6000LM/6750LM/8100LM
- :: Wattage: 27W/35W/40W/45W/54W
- :: Voltage: 120-277V
- :: Efficacy: 150LPW
- :: Power Factor: >0.92
- :: Maximum Ambient Temperature: -22°F to 104°F
- :: Color Rendering Index: CRI ≥ 80
- :: Color Temp: 3000K/4000K/5000K
- :: Lifespan: 50,000 hours
- :: 5-year warranty
- :: IP Rating: IP20 Indoor use only

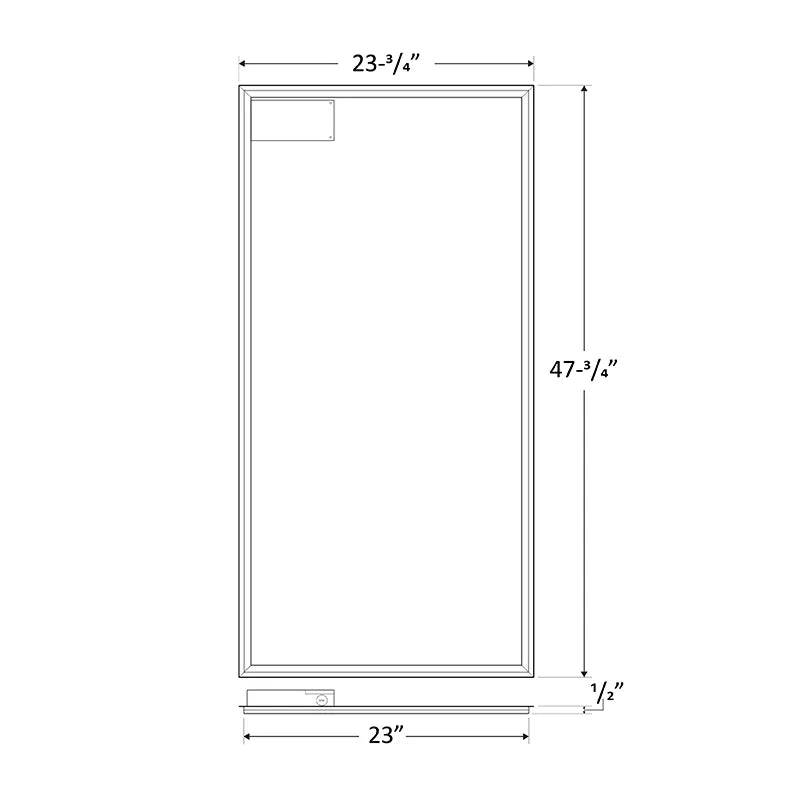

Dimension
- Length: 47-6/8"
- Width: 23-3/4"
- Height: 5/8"
