Description

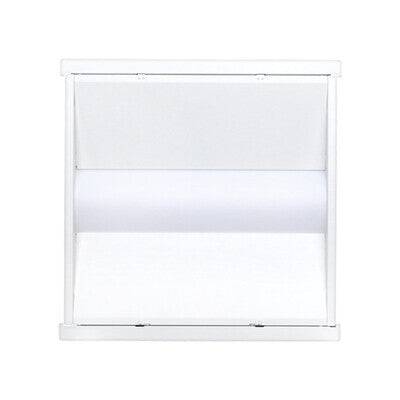

Volumetric Retrofit 2x2 PowerSet 39/32/24/19W 3500K 120-277V 0-10V Dimming
F E A T U R E S
• Architectural recessed LED retrofit luminaire, designed to deliver energy savings and code compliance in minutes
• Clean styling complements today’s modern office decor and provides direct and indirect
illumination
• One-for-one alternative LED solution to fluorescent luminaires provides greater than 50% energy savings
• PowerSet allows for multiple “set and forget” lumen stops per fixture
• FieldCCeT feature allows for multiple “set and forget” CCT options in each fixture
• Technology partner Silvair
• Multiple controls options, including 0-10V, occupancy sensors, and DLC Qualified
Bluetooth mesh wireless controls systems when paired with a DLC Listed Network Lighting Control System. Contact EiKO for details
• 130 lumens per watt
| Product Specifications | |
|---|---|
| Input Voltage | 120-277VAC |
| Lumens (lm) | 2,500 / 3,100 / 4,100 / 5,000 lm |
| Wattage | 39W / 32W / 24W / 19W |
| Efficacy (lm/W) | 130 |
| CCT | 3500K |
| CRI | 80+ |
| Dimming | Yes |
| Nominal Size | 2x2 |
| Replacement For/Equivalent | 3x 17WT8, 2U31T8 Fluorescent |
| DLC Version | DLC 5.1 Standard |
| TITLE 20 | Exempt |
| TITLE 24/JA8 | No |
| Energy Star | No |
| UL Location Rating | Dry |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| UL / ETL | Yes - UL |
| Operating Temp Range (°F/°C) | -4F to 104F (-20C to 40C) |
| Surge Protection (kV) | 2.5kV |
| Brand | EiKO |
