Description

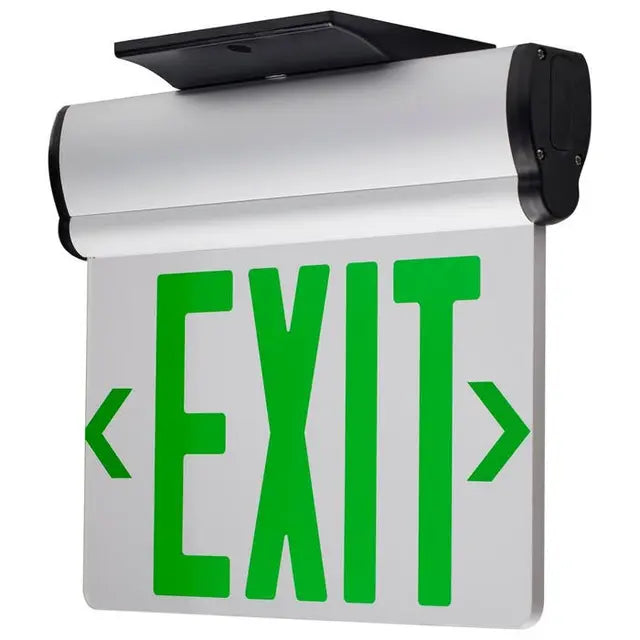

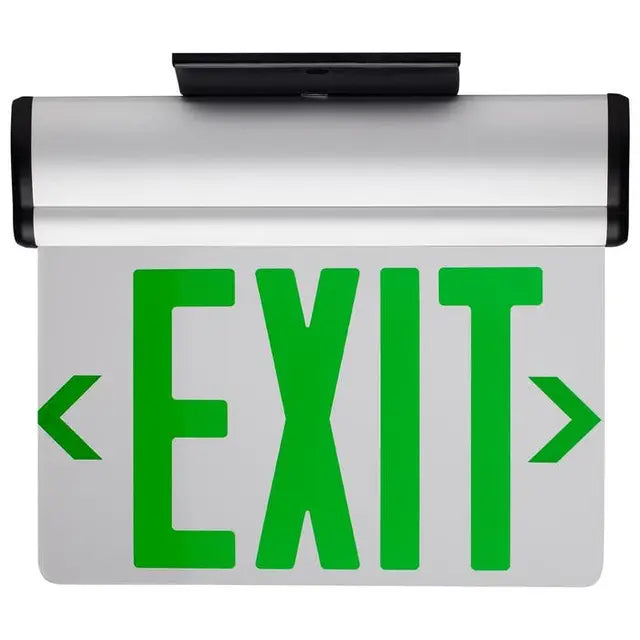

Single Face Green (Clear) EdgeLit LED Exit Sign, 90min Ni-Cad backup, Top/Back/End Mount
General
| Company | NUVO |
|---|---|
| Bulb Included | Integrated |
| Material | Aluminum |
| Fixture Type | Exit Sign |
| Includes | Mounting hardware and accessories |
| Product Notes | Aluminum, Acrylic Panel, 4.8V AA300mAh Ni-Cad Battery, 90 minutes duration, 24 hour charge time, 10C-40C; Letter Height: 6 in.; Letter Stroke: 0.75 in. |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 3KV |
| CCT Selectable | False |
| Wattage Selectable | False |
| Finish Family | Silver |
| Additional Info | Input Wattage: 2.94W; Output Wattage: 0.5W; Energy Used in Maintenance Mode: 2.94W |
| Amps | 0.025/0.011A |
| Has Camera | False |
| IOT Enabled | False |
| SDS Class | LED_Fixture |
| Sloped Ceiling Compatible | No |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
Electrical
| Dimmable | Non-Dimmable |
|---|---|
| Operating Frequency | 60Hz |
| Operating Temp | +10C (+50F) to +40C (+104F) |
| Volts | 120V/277V |
| Watts | 2.94W |
