Description

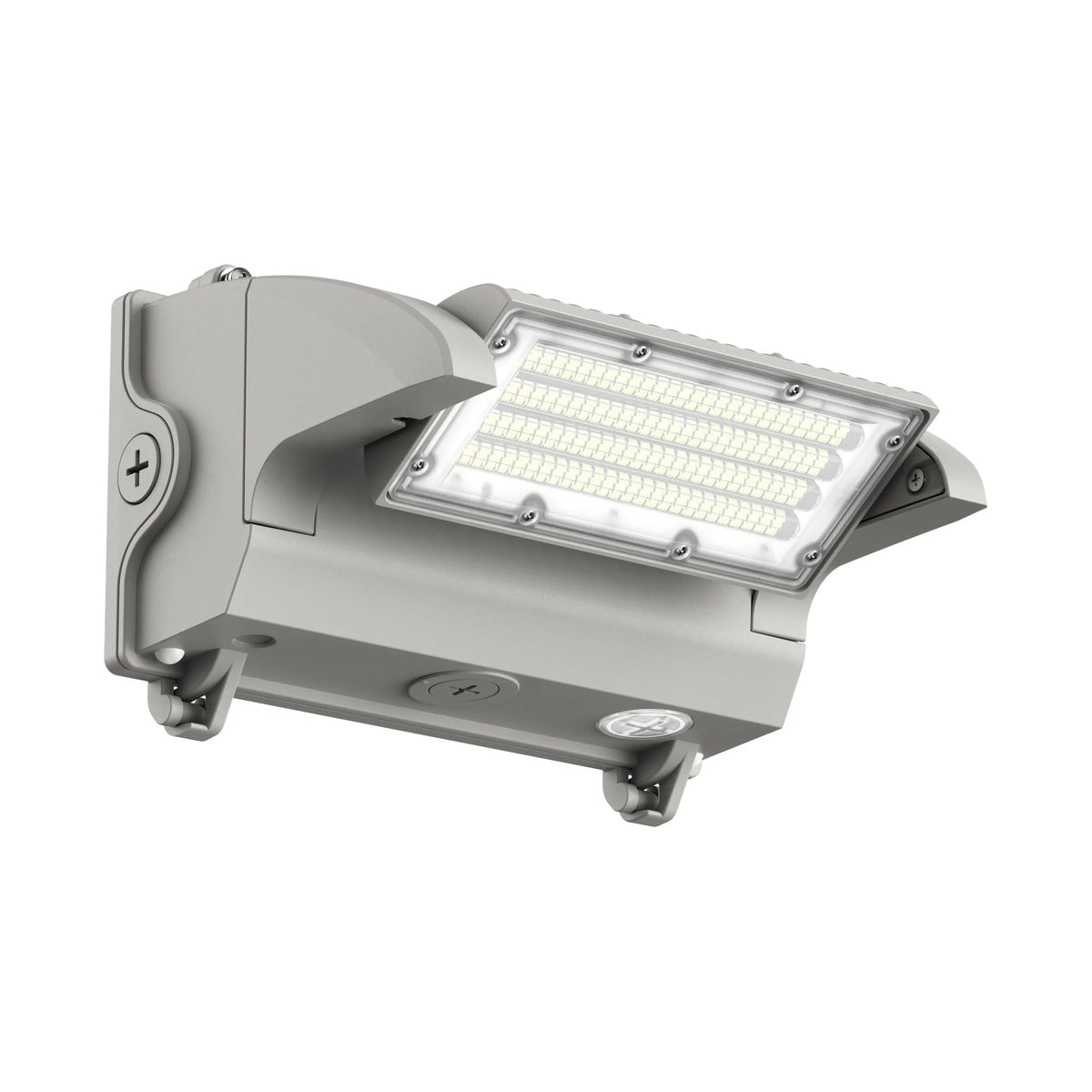

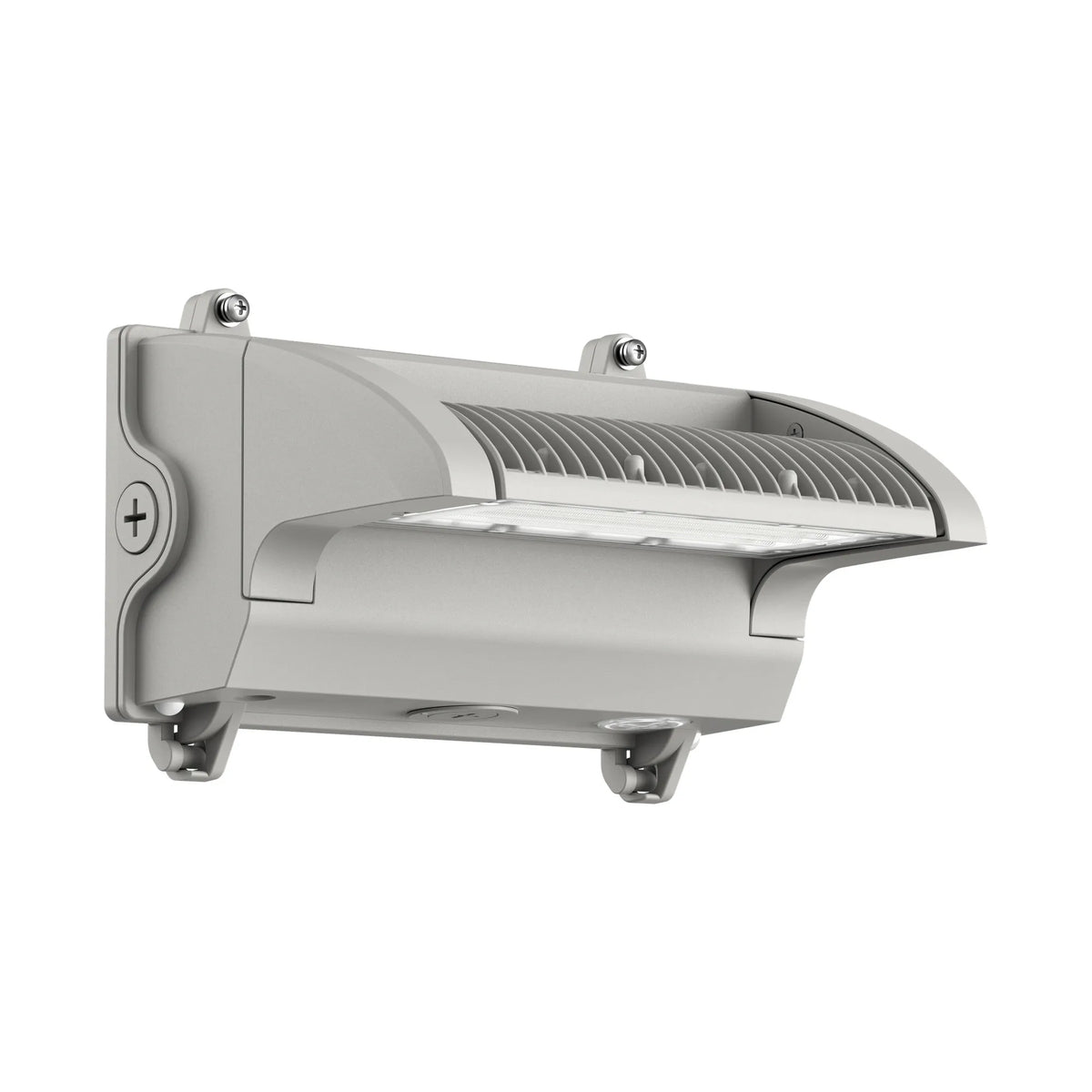

Silver Rotatable LED Wall Pack w/ Photoeye- Wattage Select 15-40W and CCT 30/40/50K
FEATURES:
–IP65 wet-location construction
–Polycarbonate lens, high-output polycarbonate lens
–Adjustable light distribution
–Pre-installed dusk-to-dawn photocell with ON/OFF control
– Sensor-ready design
– Sensor sold separately
–7-year warranty
ELECTRICAL:
–120-277VAC, 50/60 Hz
– Selectable wattage: 15W / 25W / 30W / 40W
–0-10V dimming
–Power factor: ≥0.90
–THD: <20%
–Integrated dusk-to-dawn photocell with ON/OFF selector
– Factory default setting: photocell ON, maximum wattage and 5000K
–Operating temperature: -40°F to 122°F
–Operating temperature with emergency backup: 32°F to 104°F
– Surge protection: 6kV line-to-neutral / 6kV line-toground
–Class 2 auxiliary output for compatible sensor controls
Technical Specs
- :: Fixture type: adjustable-head LED wall pack, photocell and sensor ready
- :: Body: LW360-15 (standard output, single-lens)
- :: Input voltage: 120-277 VAC, 50/60 Hz
- :: Wattage: field-selectable 15W / 25W / 30W / 40W
- :: Dimming: 0-10V
- :: Power factor: >=0.90
- :: THD: <20%
- :: Lumen output: 2,250LM / 3,750LM / 4,500LM / 6,000LM
- :: Efficacy: up to 150 LM/W
- :: Color temperature: 3CCT selectable, 3000K / 4000K / 5000K
- :: CRI: 80
- :: LED: SMD2835
- :: Optic: Type III; adjustable optical assembly for directional illumination
- :: Lens: polycarbonate, single-lens design
- :: Photocell: integrated dusk-to-dawn with ON/OFF selector; factory default photocell ON, max wattage, 5000K
- :: Surge protection: 6kV line-to-neutral / 6kV line-to-ground
- :: Auxiliary output: Class 2 for compatible sensor controls
- :: Housing: die-cast aluminum, silicone-gasketed, with bottom drain openings

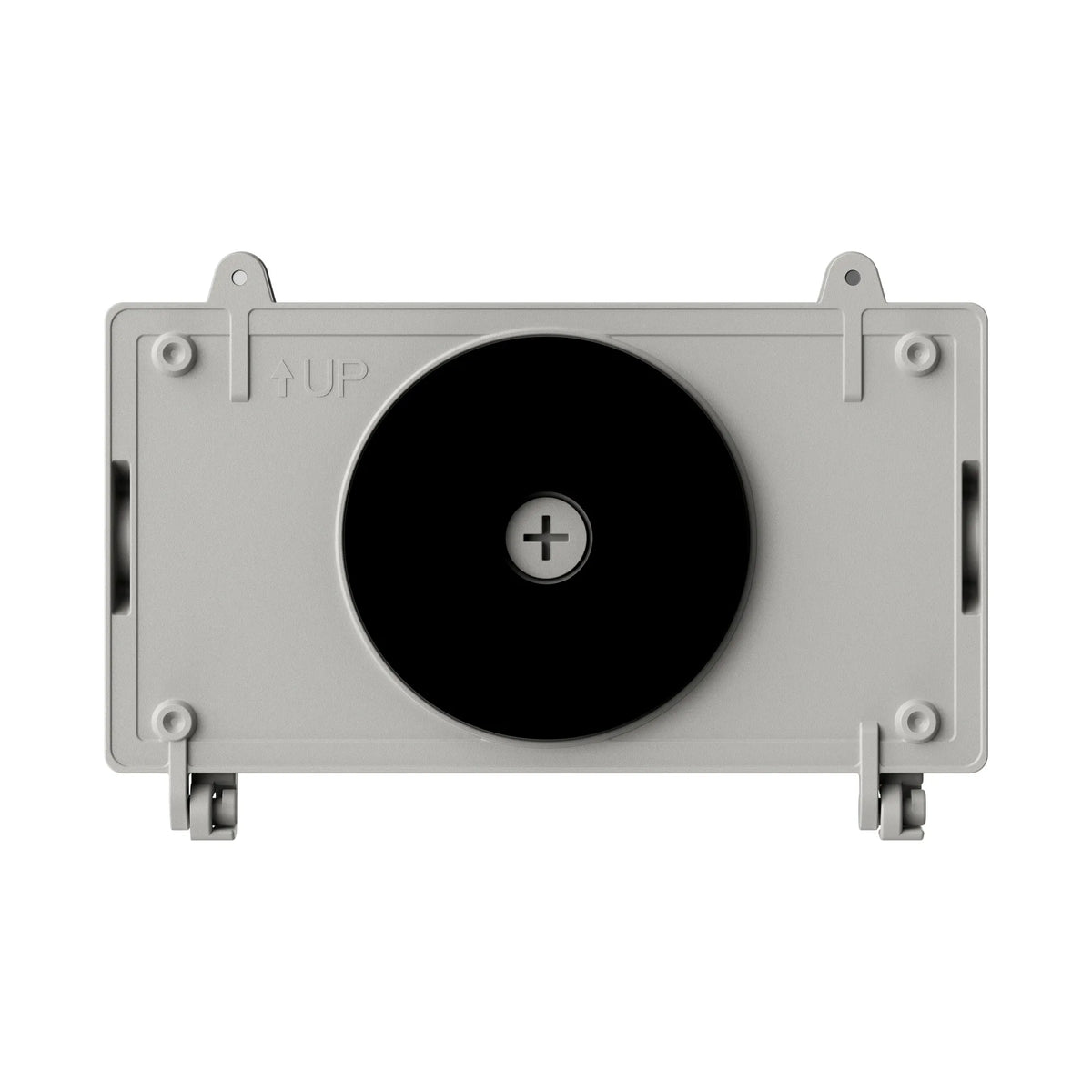

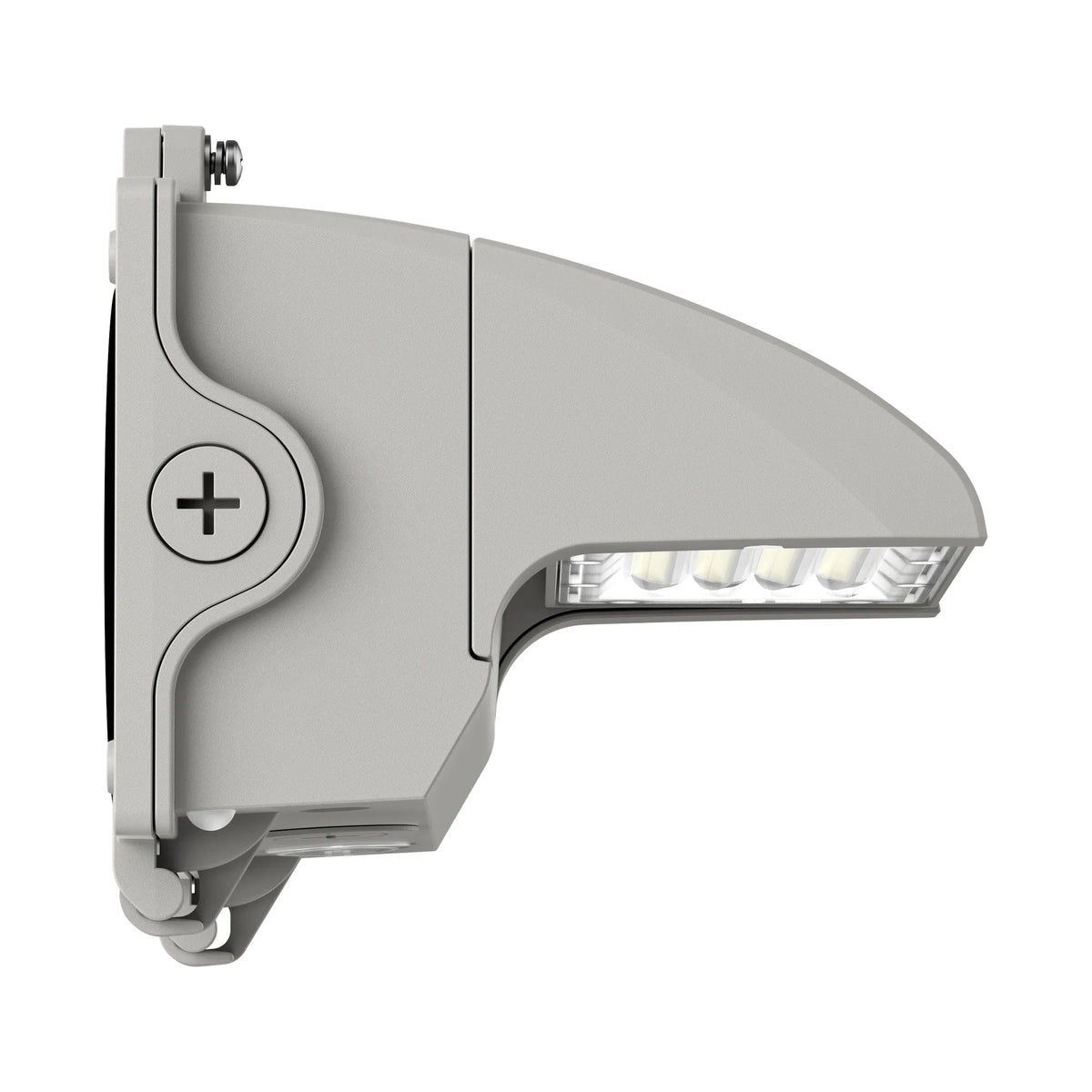

- :: Mounting: wall mount only; toolless adjustable head; adjustable head range -15-degree to 210-degree; four 1/2-inch knockouts
Applications
- :: The LW360-15-40W-MCTP-PSR-SIL is the standard-output, single-lens member of the LW360 family from Westgate in a silver finish, a clean neutral that suits metal-clad, industrial, and contemporary building exteriors. Its toolless adjustable head aims light where needed, and field-selectable wattage and color temperature, an integrated dusk-to-dawn photocell, and sensor-ready wiring keep it flexible. Choose silver on the standard body for lower-output modern or industrial installations; Westgate offers the high-output LW360-60 body, and bronze, black, and white finishes.
