Selectable 6 in. Oil-Rubbed Bronze Remodel LED Downlight Kit

Part : REL61120SRDOB

Price:
Sale price$29.33

Please contact us for quantity discount

Description

Selectable 6 in. Oil-Rubbed Bronze Remodel LED Downlight Kit

Back-ordered 11/16/2024

Features

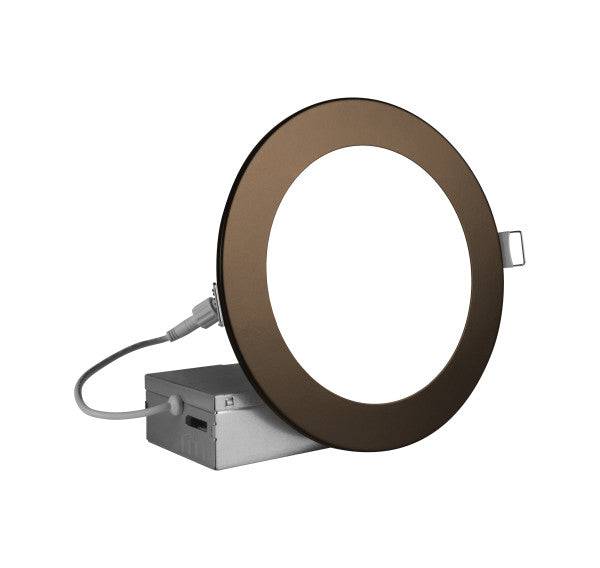

  • Includes downlight with oil-rubbed bronze trim, driver/junction box, and linking cable
  • Five selectable color temperatures (2700K, 3000K, 3500K, 4000K, and 5000K)
  • Available in four sizes: 3-inch, 4-inch, 6-inch, and 8-inch fixtures
  • Produces up to 1019 Lumens using less than 13-Watts
  • Installs directly into ceiling, no housing required
  • 6.25” diameter cut-out template included
  • Dimmable to 5% using standard TRIAC or ELV dimmers
  • Airtight, Wet-Location, and Insulation Contact Rated (IC-Rated)
  • Energy Star rated, Title 24, JA8, and RoHS Compliant
  • Protected by NICOR's 5-year limited warranty
Model Number
REL61120SRDOB
Product Title
REL Selectable 6 in. Oil-Rubbed Bronze Remodel LED Downlight Kit
UPC
767706203011

NICOR’s REL Series 6-inch Selectable CCT Round Canless LED Downlight offers a clean and attractive aesthetic with a low-profile. The edge-lit technology allows for a very thin recessed design measuring less than an inch in depth. Easily change between 5 color temperature options (2700K, 3000K, 3500K, 4000K, 5000K) with the CCT selector switch on the driver. The high-performance REL Fixture features an impressive 93 CRI rating (R9 >50) to produce an incredible light output quality. Installation no longer requires a recessed housing, but rather a simple 6.25” diameter drywall cut-out using the provided template. The ultra-thin fixture depth and off-board driver (included) allows for a more flexible installation and increased product lifespan through superior heat management. The adjustable, spring-loaded retention tabs provide a secure fit, eliminating the need for a junction box or recessed housing. The REL comes ready to install right out of the box, no other parts or components are required. Protected by NICOR's 5-year limited warranty.

SPECS

Size (in.)
6
Product Color
Oil-Rubbed Bronze
Finish
Powder Coat
Light Source
LED
Wattage
11.75 (2700K)
12.27 (3000K)
12.44 (3500K)
12.45 (4000K)
12.51 (5000K)
Wattage Equivalent
75
Voltage
120VAC
Lumen Output
901 (2700K)
943 (3000K)
984 (3500K)
1013 (4000K)
1019 (5000K)
Lumens Per Watt
76.7 (2700K)
76.8 (3000K)
79.1 (3500K)
81.4 (4000K)
81.5 (5000K)
Color Temperature (CCT)
5CCT Selectable (27K-30K-35K-40K-50K)
CRI
93
R9 Value
56
Dimmable?
Yes
Dimming Type
TRIAC
ELV
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
Listings/Certifications
cETL Intertek Listed
Wet-Location (cETLus 1598)
Energy Star
Title 24 (Except 5000K)
JA8 (Except 5000K)
IC-Rated
Airtight
ASTM 283 Compliant
NFPA 70 Compliant
NEC 410.16 (A)(3)
NEC 410.16 (C)(5)
RoHS Compliant
FCC Class B
Other Certifications
Testing performed in accordance with IESNA standards
Meets or exceeds ASTM-283 air tight requirements
Warranty (Years)
  1. 5
