Description

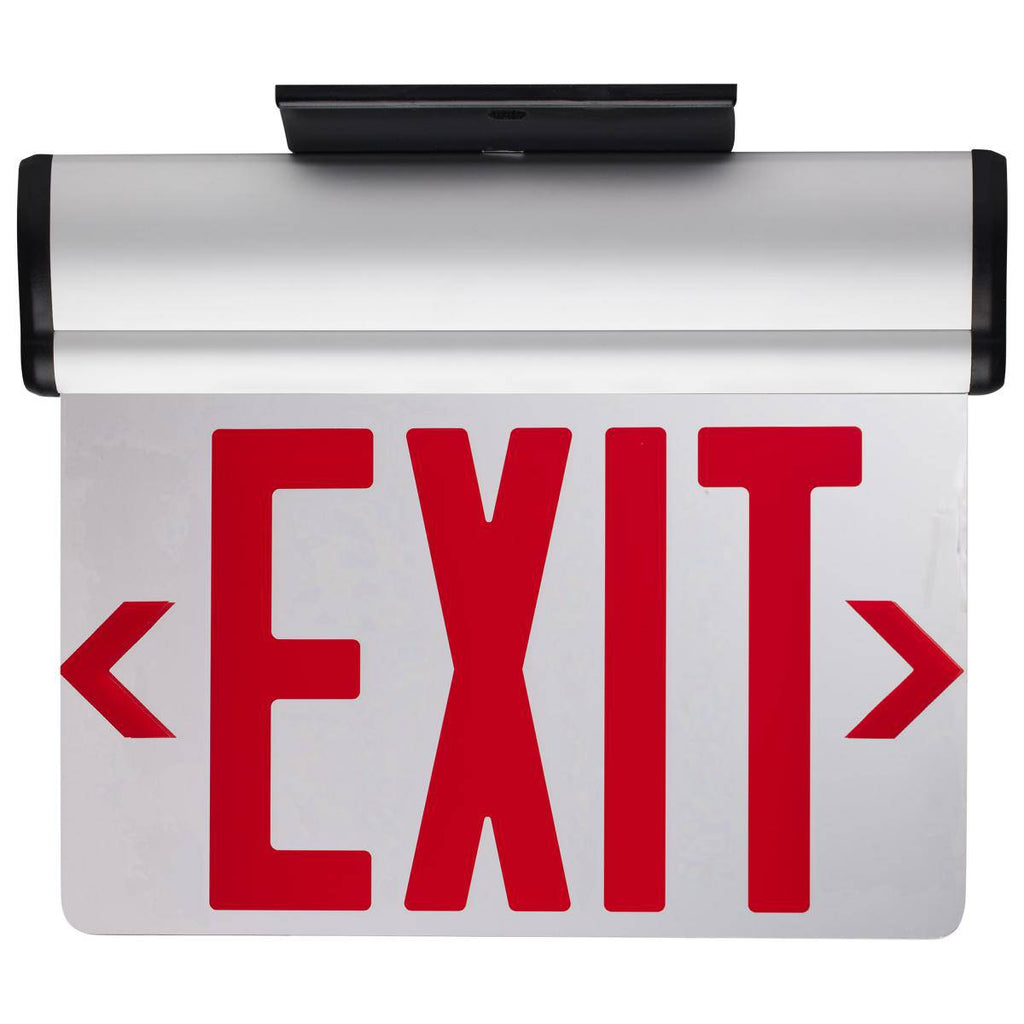

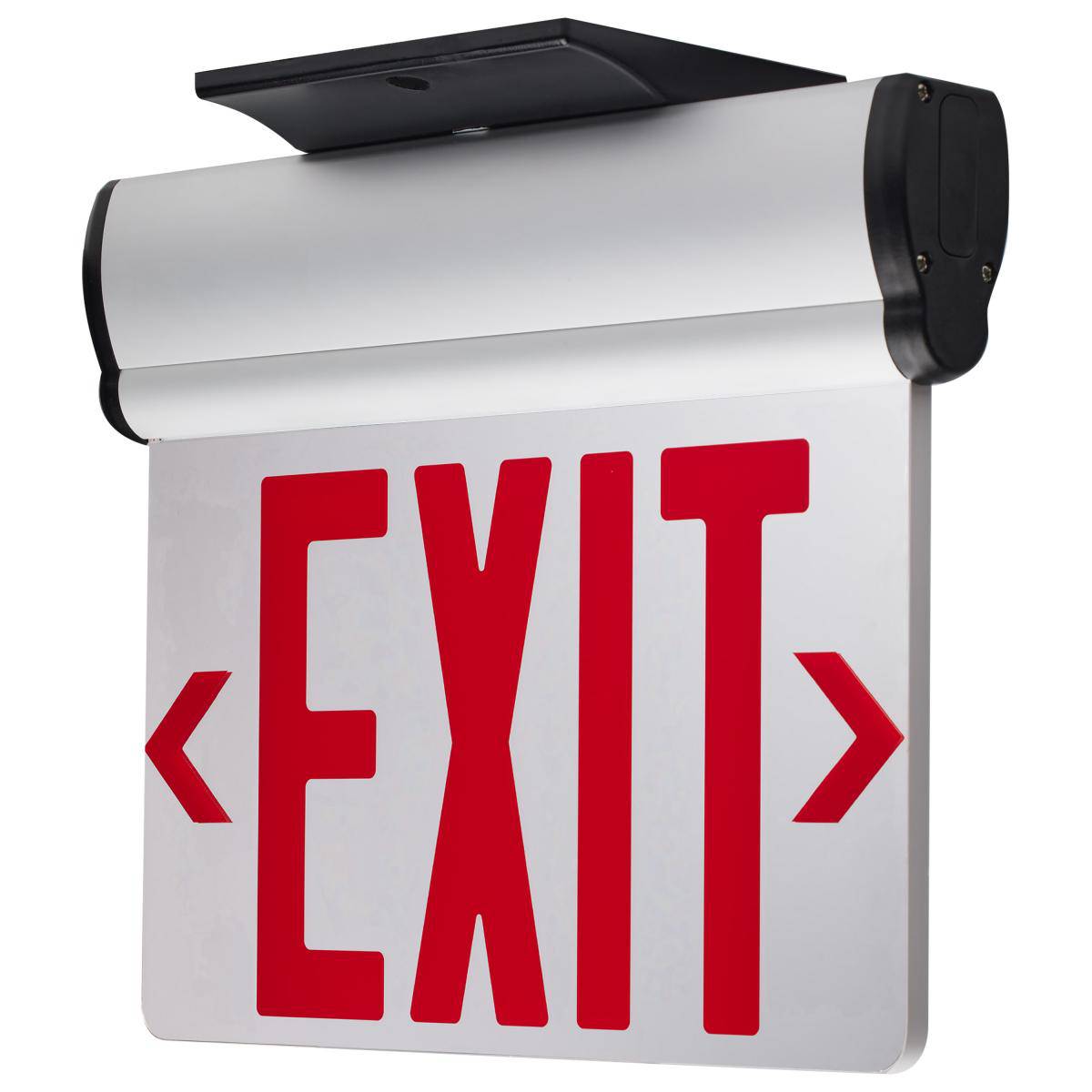

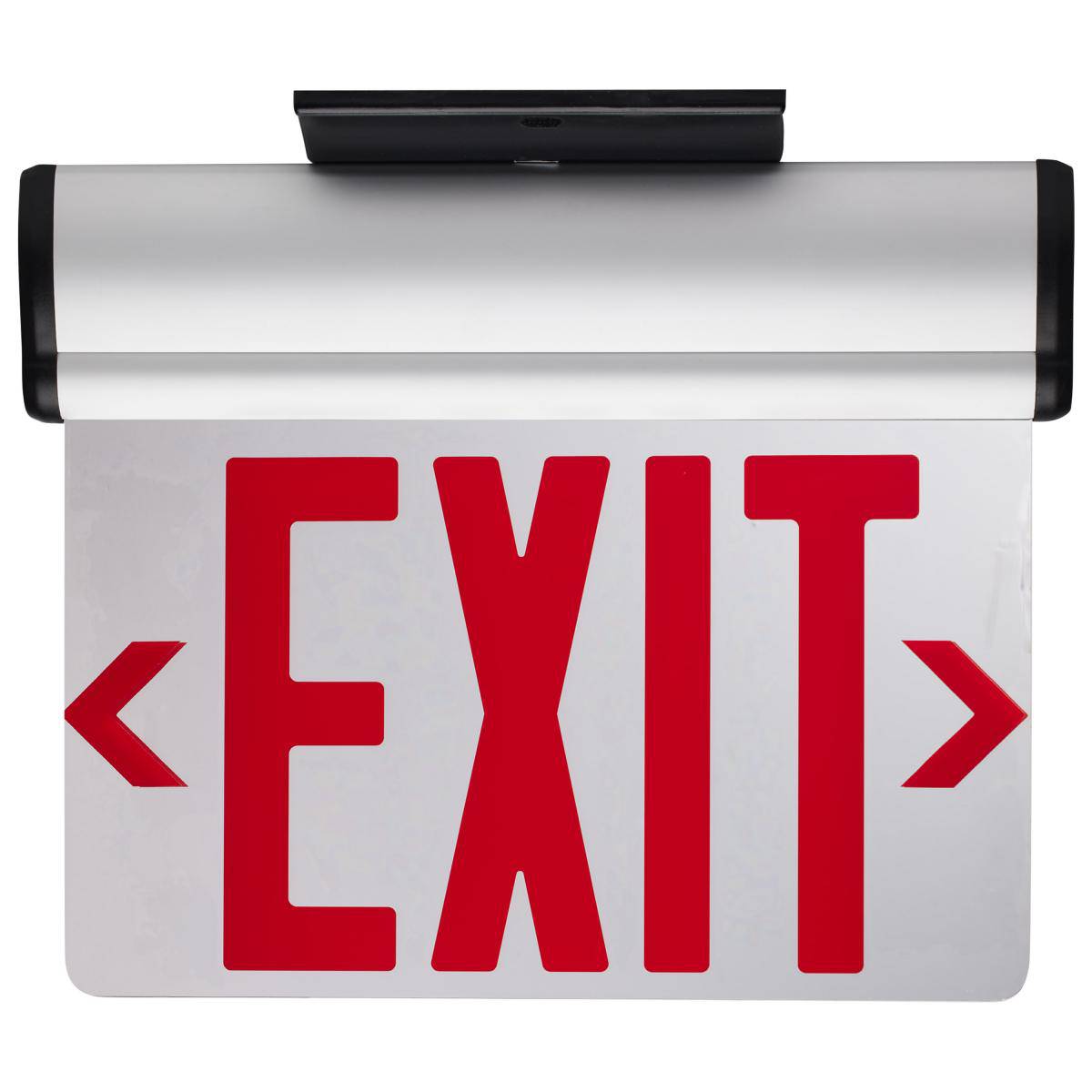

Red (Mirror) Edge Lit LED Exit Sign, 90min Ni-Cad backup, 120/277V, Dual Face, Top/Back/End Mount
| Fixture Type | Exit Sign |
| Finish | Silver |
| Wattage | 3.14W |
| Indoor or Outdoor Fixture | Indoor |
Specifications
| Technology | LED |
| Wattage | 3.14W |
| Voltage | 120V/277V |
| Operating Temperature | +10C (+50F) to +40C (+104F) |
| Dimmable | Non-Dimmable |
| Surge Protection | Built-in surge protection - 3KV |
| Weight (lb.) | 2.76 |
| Material | Aluminum |
Dimensions
| Height (in.) | 9.69 |
| Width (in.) | 12.06 |
| Length (in.) | 1.81 |
Compliance
| Safety Listing | ULus - Certified |
| Location Rating | Damp |
| Energy Star | No |
| DLC Approved | No |
| CA T20 / T24 Rationale | T20 Listed |
| California Prop 65 |
Lead
|
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
Additional Information
| Additional Information | Input Wattage: 3.14W; Output Wattage: 0.4W; Energy Used in Maintenance Mode: 3.14W |
| Specification Note | Aluminum, Acrylic Panel, 4.8V AA300mAh Ni-Cad Battery, 90 minutes duration, 24 hour charge time, 10C-40C; Letter Height: 6 in.; Letter Stroke: 0.75 in. |
| Includes | Mounting hardware and accessories |
| Warranty | 2 Year Limited |
Packaging
| Each UPC | 045923675713 |
| Each Quantity | 1 |
| Each Length (in.) | 12.60 |
| Each Width (in.) | 8.46 |
| Each Height (in.) | 2.76 |
