Description

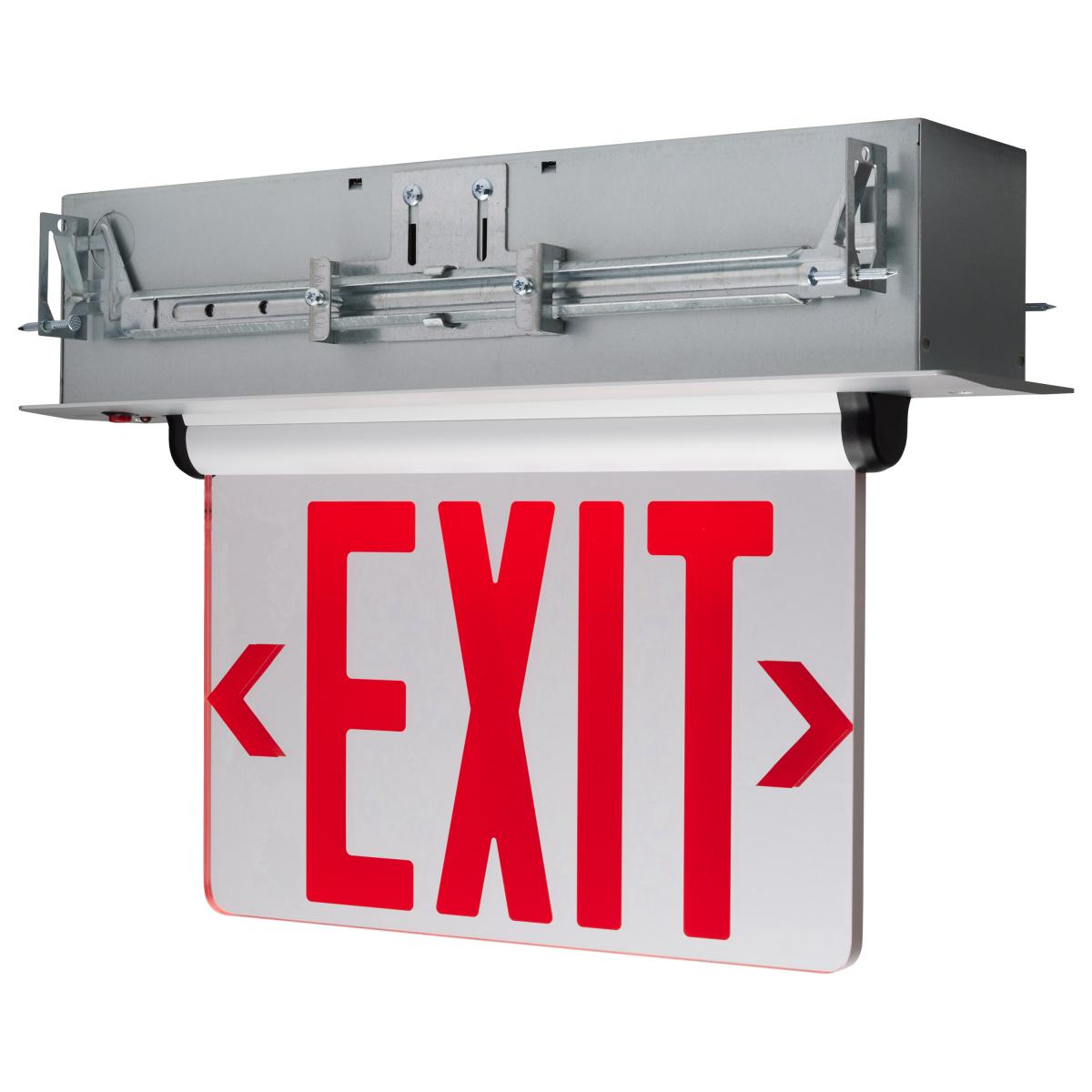

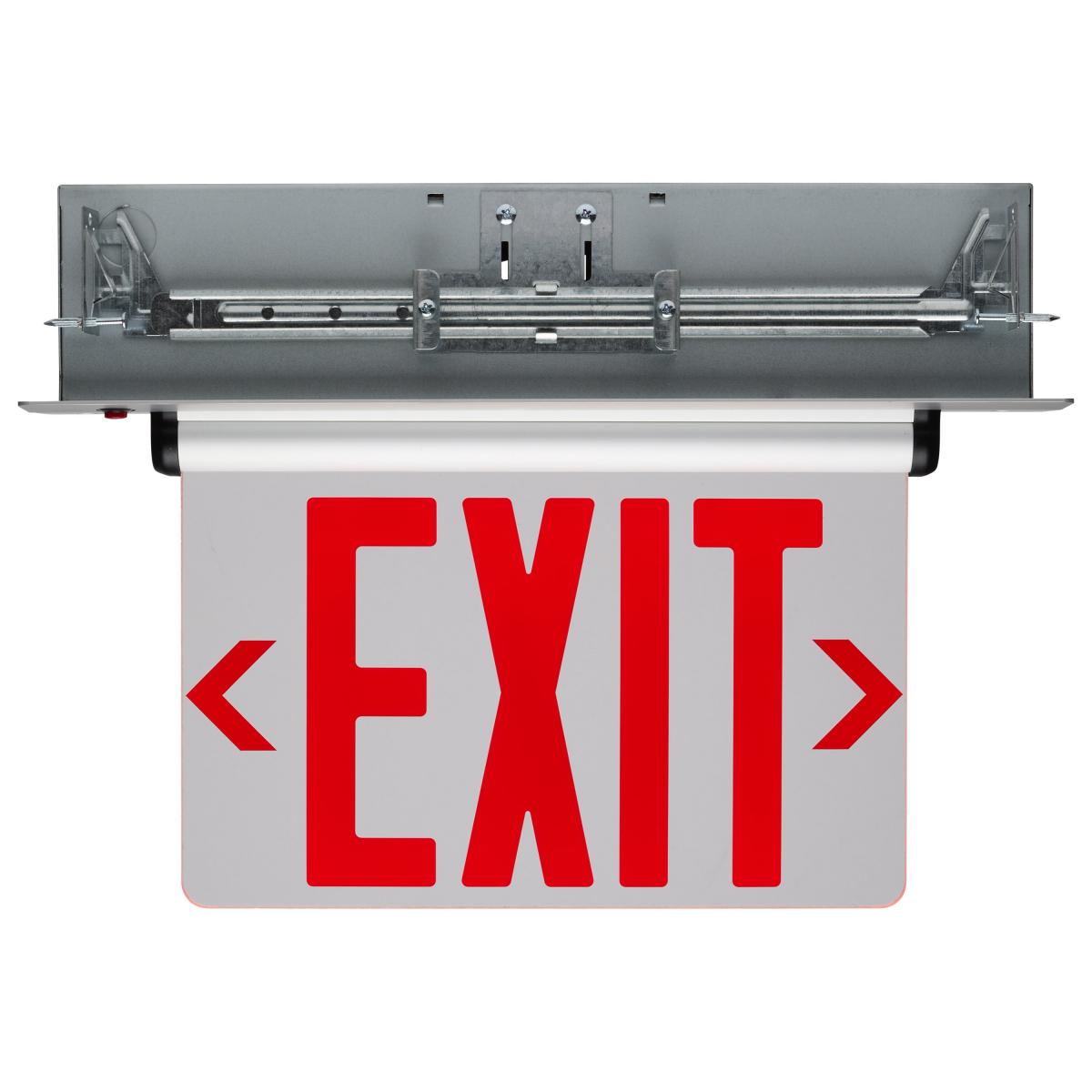

Red (Mirror) Edge Lit LED Exit Sign; 3.14 Watt; Dual Face; 120/277 Volts; Silver Finish
General
| Status | Active |
| Fixture Type | Exit Sign |
| Finish | Silver |
| Wattage | 3.14W |
| Indoor or Outdoor Fixture | Indoor |
Specifications
| Technology | LED |
| Wattage | 3.14W |
| Voltage | 120V/277V |
| Operating Temperature | +10C (+50F) to +40C (+104F) |
| Dimmable | Non-Dimmable |
| Lens Material | Acrylic |
| Weight (lb.) | 5.2 |
| Material | Aluminum |
Dimensions
| Height (in.) | 11 |
| Width (in.) | 15.75 |
| Length (in.) | 4 |
Compliance
| Safety Listing | ULus - Certified |
| Location Rating | Damp |
| Energy Star | No |
| CA T20 / T24 Rationale | T20 Listed |
| California Prop 65 |
Lead
|
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
Additional Information
| Additional Information | Input Wattage: 3.14W; Output Wattage: 0.5W; Energy Used in Maintenance Mode: 3.14W |
| Specification Note | Aluminum, Acrylic Panel, 4.8V AA300mAh Ni-Cad Battery, 90 minutes duration, 24 hour charge time, 10C-40C; Lumens/Illuminance: 61 cd/m2 average; Letter Height: 6 in.; Letter Stroke: 0.75 in. |
| Includes | Mounting hardware and accessories |
| Warranty | 2 Year Limited |
Packaging
| Each UPC | 045923670268 |
| Each Quantity | 1 |
| Each Length (in.) | 16.34 |
| Each Width (in.) | 4.72 |
| Each Height (in.) | 8.66 |
