Description

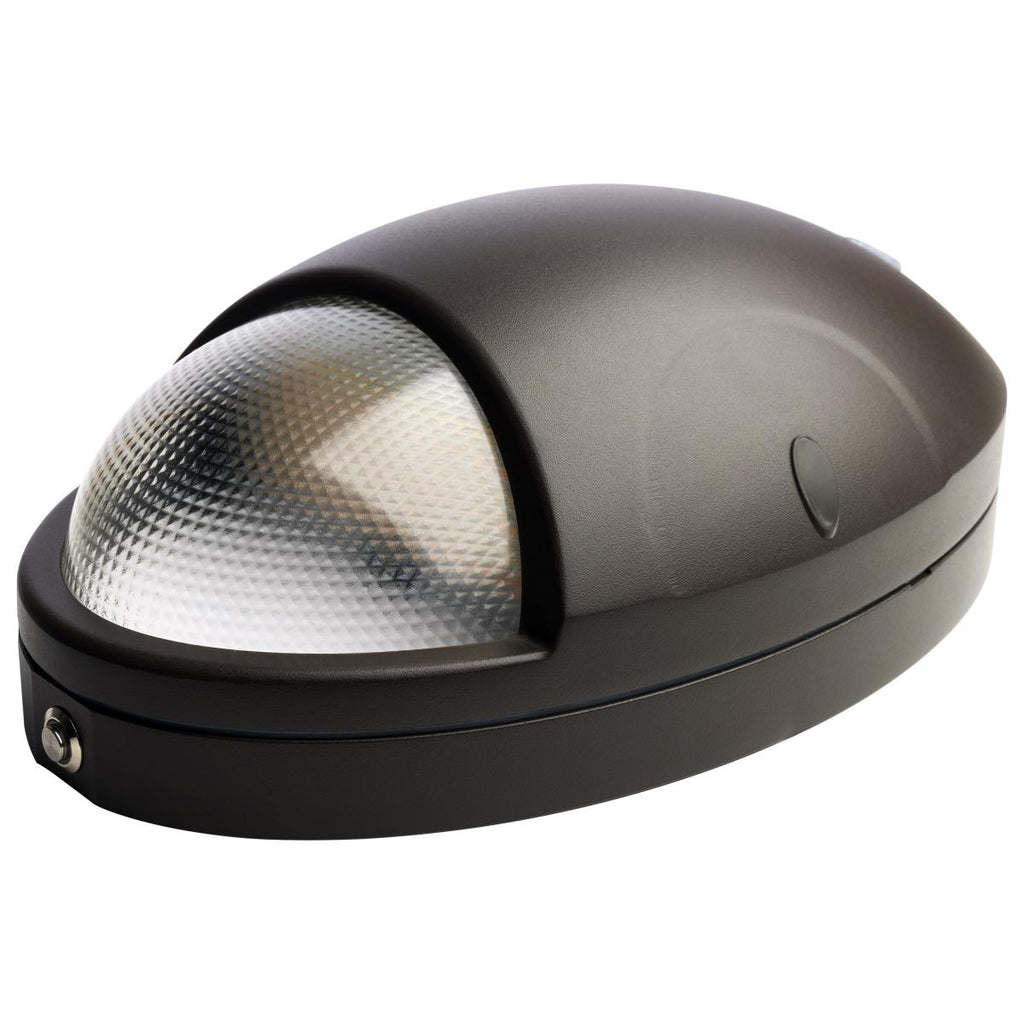

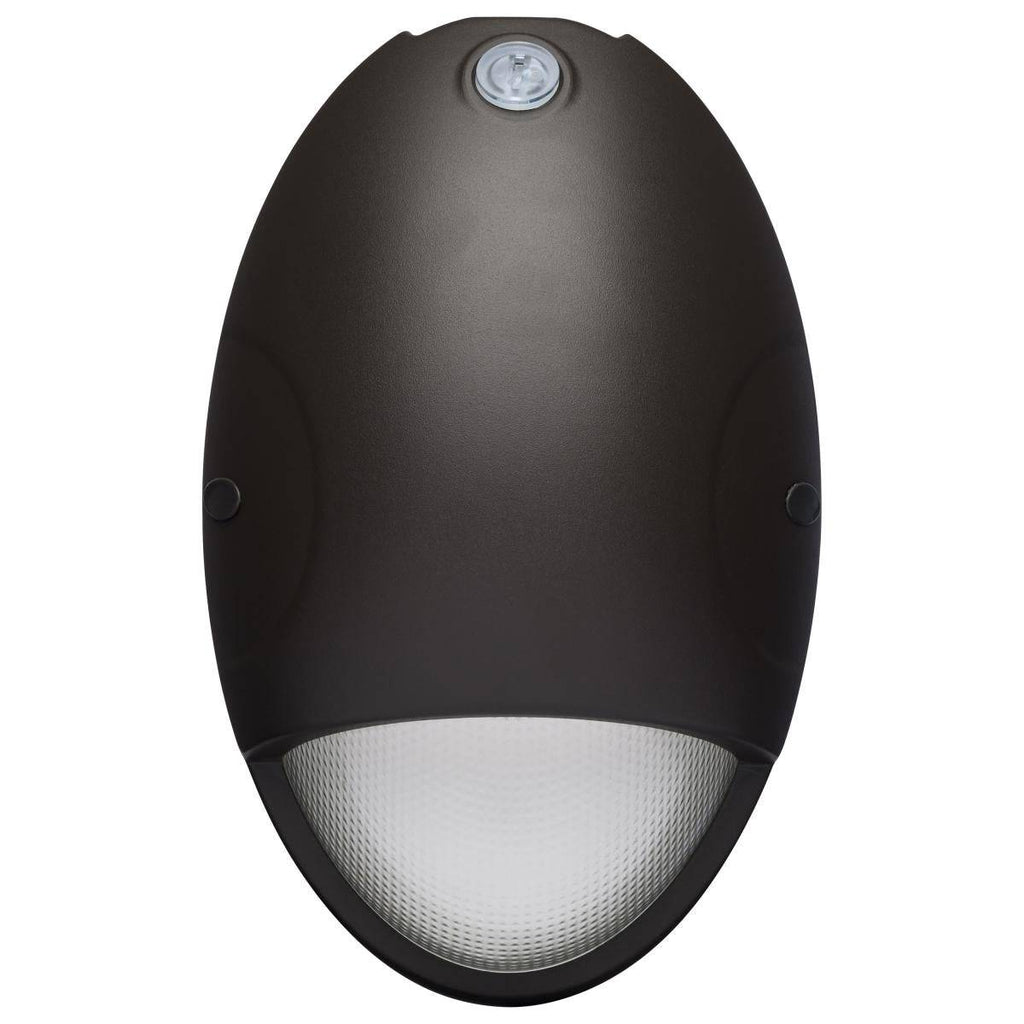

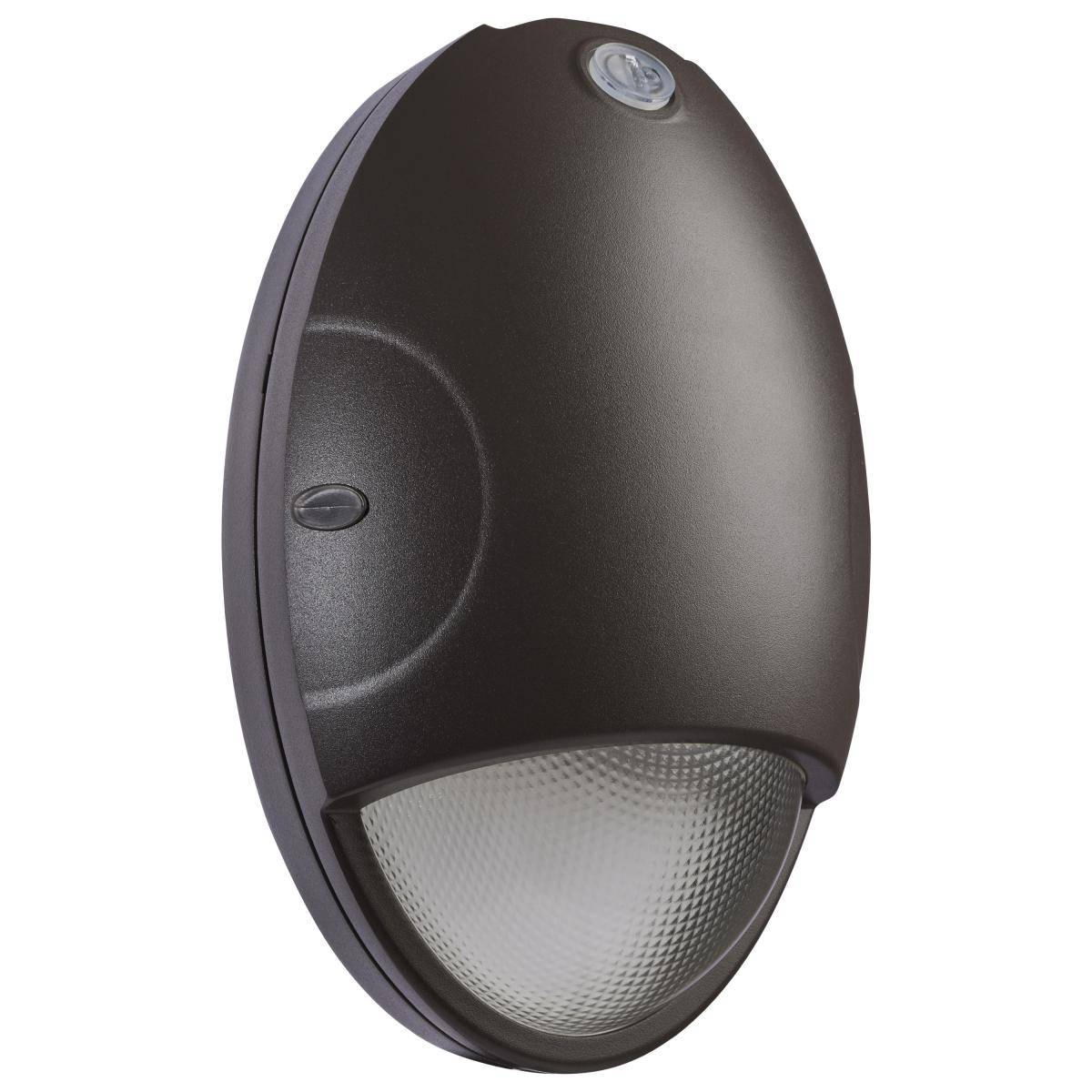

Oval Small Emergency Wall Pack; LED; CCT Selectable; Photocell; Bronze Finish
| Fixture Type | Wall Pack |
| Finish | Bronze |
| Wattage | 15W |
| Lumen Output | 1740L-1814L |

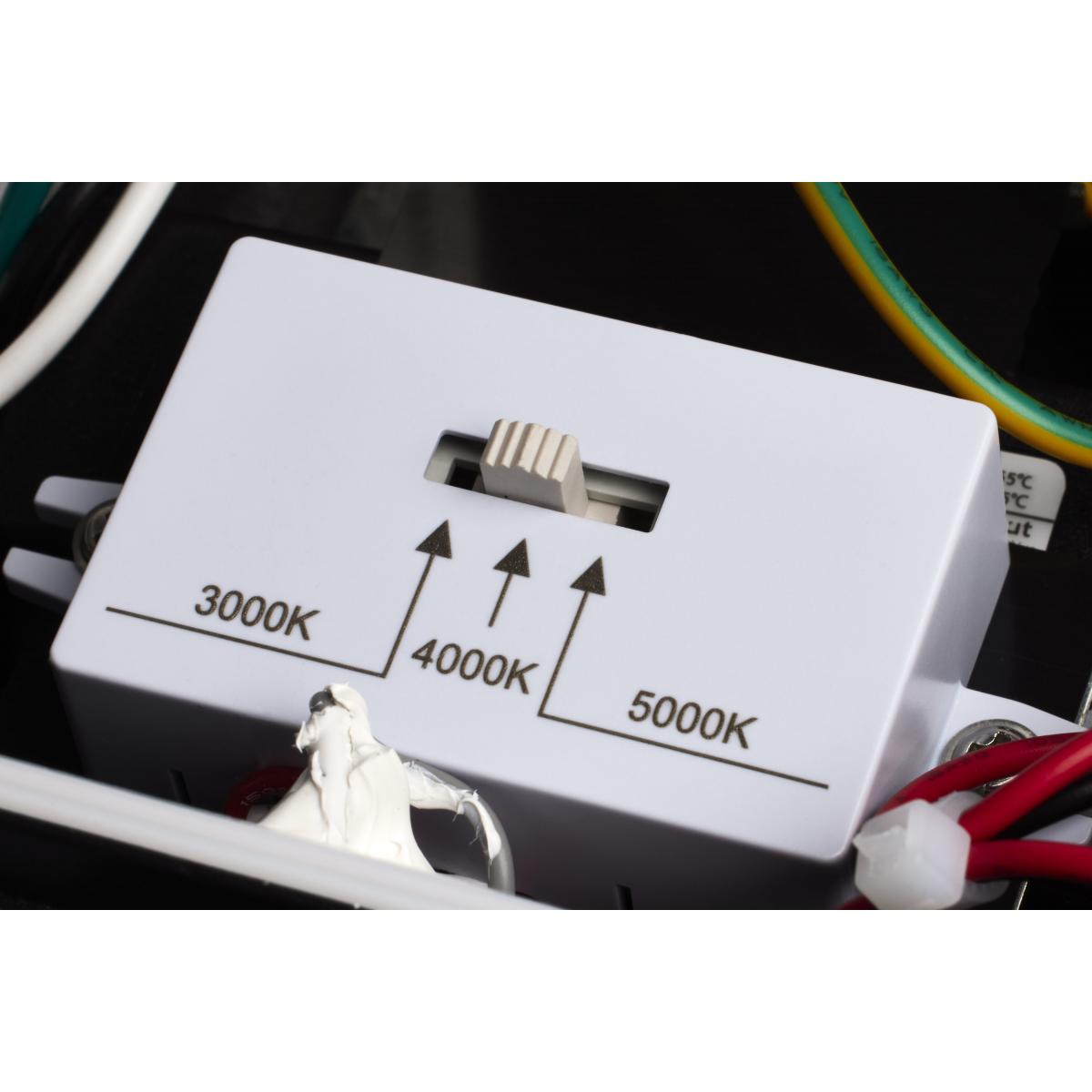

| CCT (Kelvin) | 3500K/4000K/5000K |
| Temperature | Neutral White to Natural Light |
| IP Rating | IP65 |
| Indoor or Outdoor Fixture | Indoor; Outdoor |
Specifications
| Technology | LED |
| Wattage | 15W |
| Lumen Output | 1740L-1814L |
| CCT (Kelvin) | 3500K/4000K/5000K |
| Color Temperature | Neutral White to Natural Light |
| CRI | 80 |
| Voltage | 120V-277V |
| Beam Angle | 100 |
| Rated Hours | 50000 |
| Operating Temperature | 0C (+32F) to +45C (+113F) |
| Dimmable | Yes-Dimmable |
| Dimming Note | 0-10V Dimming |
| Photocell or Sensor | Has Photocell |
| Lens Material | Polycarbonate (PC) |
| Surge Protection | Built-in surge protection - 2.5KV |
| Weight (lb.) | 3.61 |
| IP Rating | IP65 |
| Material | Die-Cast Aluminum |
Dimensions
| Height (in.) | 10.47 |
| Width (in.) | 6.54 |
| Extension (in.) | 3.78 |
Compliance
| Safety Listing | cULus |
| Location Rating | Wet |
| DLC Approved | Yes |
| DLC ID | S-FW6VDL |
| ADA Compliant | Yes |
| B.U.G. Rating | B1-U3-G1 |
| CA T20 / T24 Rationale | T20 Exempt - Fixtures Not Regulated |
| California Prop 65 |
Lead
|
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| Flicker Free | No |
| SDS Sheet | LED Fixture |
Additional Information
| Additional Information | Battery Mode: 5 Watts, 90 Minute Run Time |
| Warranty | 5 Year Limited - Fixtures |
Packaging
| Each UPC | 045923650406 |
| Each Quantity | 1 |
| Each Length (in.) | 6.77 |
| Each Width (in.) | 4.06 |
| Each Height (in.) | 10.83 |
