Description

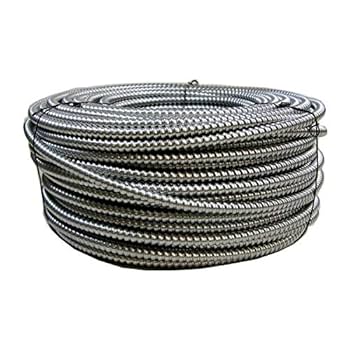

MC Luminary Cable, 16/2 (Purple/Pink) 12/3 (Black/White/Red/Green Ground, 250 Foot Reel
Combines power and control circuits under a single interlocked armor.
Reduces installation time and materials on the job site.
Designed for LED and fluorescent dimming systems.
Applications:
For use in smart buildings
LED and fluorescent dimming
Allows control circuits to be placed in a cable with light or power circuits.
For exposed wiring or concealed wiring in dry locations
May be embedded in plaster
Features:
Rated at 90°C dry,
Excellent crush resistance
Provides long service life
Cost effective alternative to installations in conduit
250 Foot Reel
Soild Copper
Conductor:
Bare 12 AWG. solid soft drawn copper
Bare 16 AWG. solid soft drawn copper
Insulation:
Thermoplastic high heat resistant nylon coated (THHN) / Thermoplastic heat water resistant nylon coated
Color Coding:
12 AWG. black, white, green, red
16 AWG. pink, purple
Bonding Conductor (Ground):
One (1) insulated solid soft drawn
copper
Inner jacket:
Polyvinyl Chloride (PVC), blue
Armor:
Aluminum interlocked armor
UL Listing:
E189204
