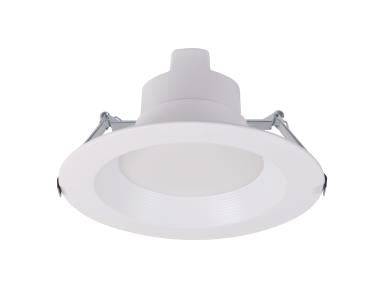

Maxlite LED Downlight 8 Inch Wattage/CCT Selectable 18W/27W/34W 2700K/3000K/3500K/4000K/5000K 120-277V

Part : RCF8T18WCSTA

MaxLite: MaxLite
Price:
Sale price$39.50

Please contact us for quantity discount

Description

Maxlite LED Downlight 8 Inch Wattage/CCT Selectable 18W/27W/34W 2700K/3000K/3500K/4000K/5000K 120-277V

pdf download

Product Description
The Universal Commercial downlight is an economical, all-in-one solution
for adding recessed downlighting to hospitality, retail, office and other
commercial lighting applications. The downlight is designed with an integral
whip, which connects directly to a junction box (existing or independently
mounted), and a universal driver that eliminates the need for a traditional
recessed housing, saving installers time and money. The downlight combines
5 CCTs and 3 wattages in one product. Easy to install in new construction,
remodel and retrofit projects, the downlight has a slim body that fits into
shallow ceilings. Its white baffle trim blends seamlessly into interiors and
reduces glare for soft, eye-pleasing illumination.
Features:
• 2700/3000K/3500K/4000K/5000K CCT Selectable
• Qualified as a fixture and a retrofit
• Mounts directly into ceiling, no housing required
• Extra wide flange to cover oversize openings
• Input Voltage 120-277V, Triac Dimming on 120V
• >90 CRI
• Beam angle 100°
• IC rated and wet location listed


Dimensions
Size 8"
Product Weight (lbs.) 1.49
Product Height (Inches) 4.29
Product Length (Inches) 10.25
Product Width (Inches) 10.25
Performance
Watts (W) 18W/27W/34W
Voltage (V) 120-277
Delivered Lumens (lm) 1700/2600/3300
Efficacy (lm/W) 100
Color Rendering Index (CRI) ≥90
Color Temperature (K) 2700/3000/3500/4000/5000
Equivalent Wattage 2x32W/2x42W CFL
Beam Angle 110
Beam Type MEDIUM
Power Factor 0.90
Min. Ambient Temp (°F) -4
Max. Ambient Temp (°F) 104
