Description

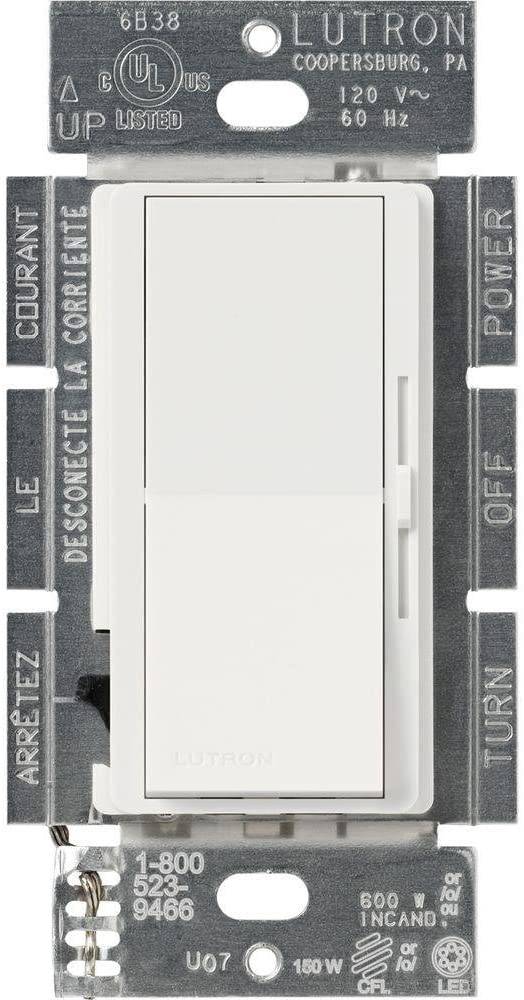

Lutron Diva LED+ Dimmer Switch, 150-Watt/Single-Pole or 3-Way in White
Dimmer for dimmable LED, CFL, halogen, and incandescent bulbs.
Features

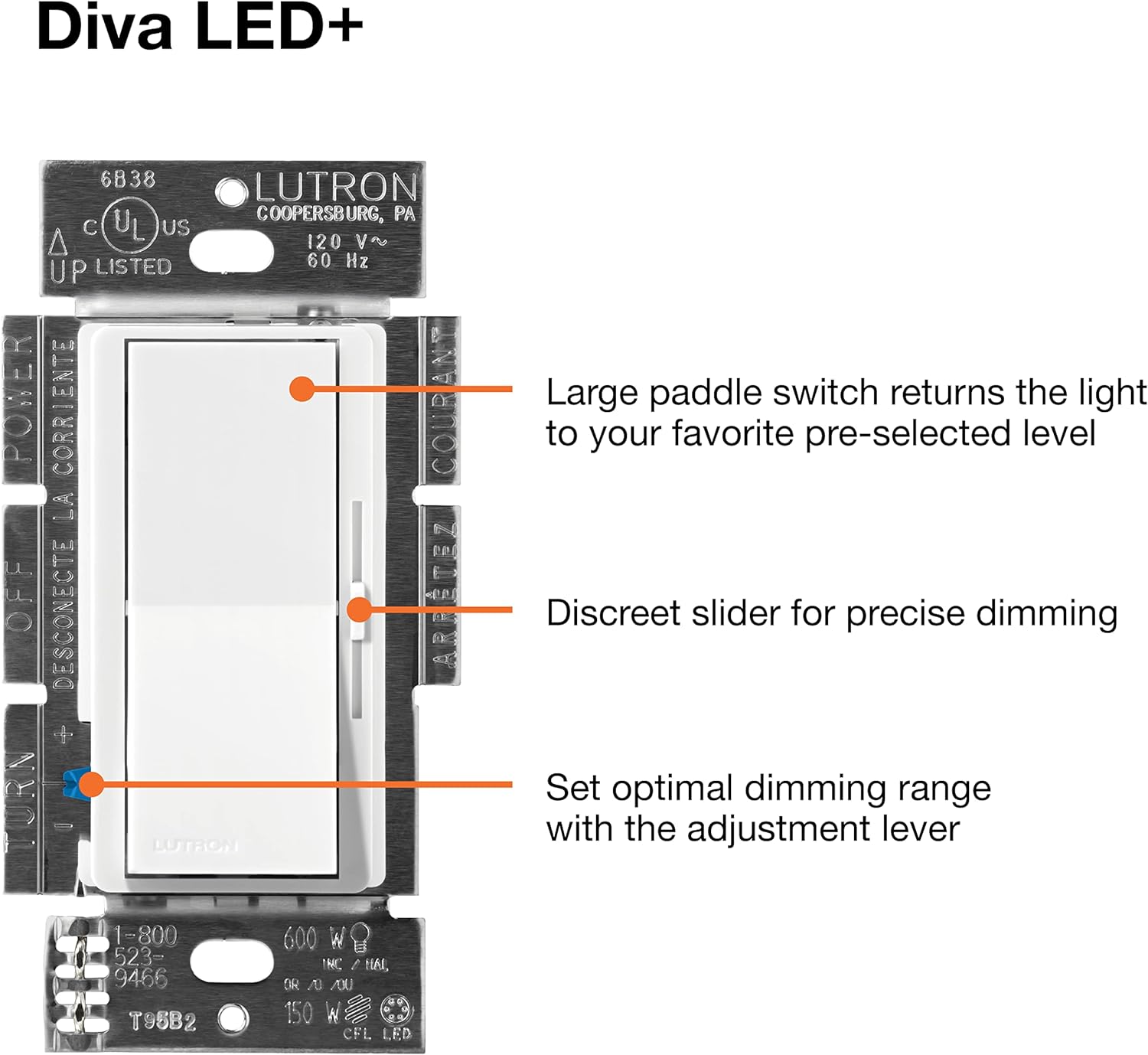

• Large paddle switch with a captive linear-slide
dimmer for a standard designer wallplate opening.
• LED+ includes the most advanced technology for
superior dimmng of LED, CFL, incandescent, and
halogen bulbs.
• Low-end adjustment to accommodate a wide range
of bulbs.
• 100% factory tested.
Specifications
Regulatory Approvals
• ULR Listed to US and Canadian safety requirements
UL1472 / CSA C22.2 184.1
• NOM
Power and Ratings
• 120 V~ 60 Hz
• 150 W dimmable LED / CFL
or
• 600 W incandescent / halogen
or
• Mixed bulb type per Multigang and Mixed Bulb Type
Ratings table (see page 3)
or
• 250 W Lutron LTEA Hi-lume 1% forward-phase
LED driver (maximum 6 drivers)
Environment
• For indoor use only.
• Operating temperatures 32 °F to 104 °F (0 °C to 40 °C).
Performance
• Power-failure memory
• Captive linear slider
• Electrostatic discharge tested
• Precise color matching
• Mechanical air-gap switch to disconnect load
power
