Description

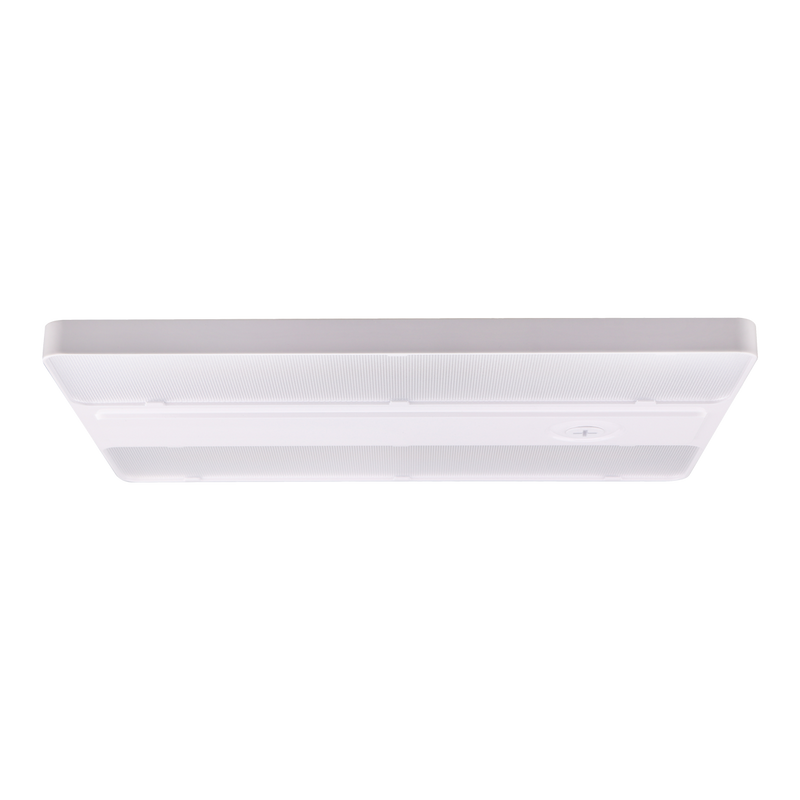

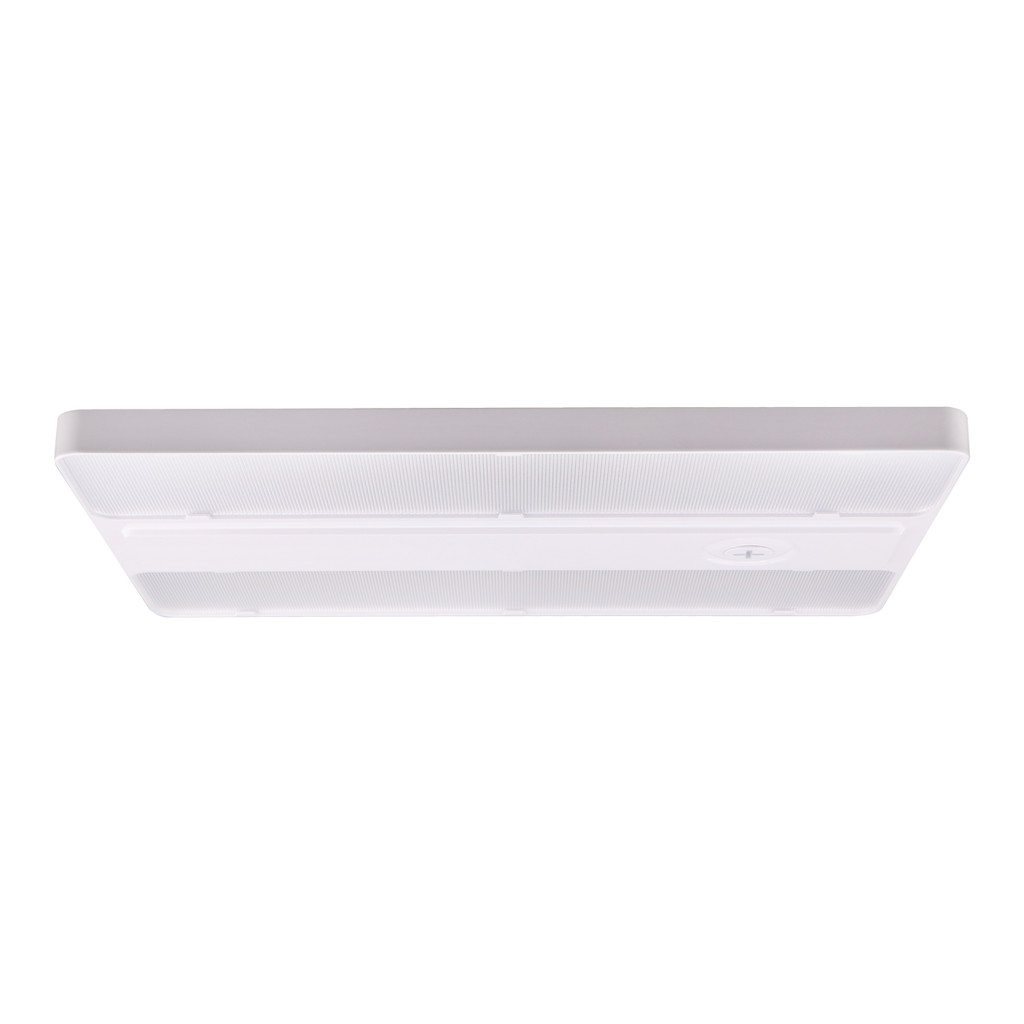

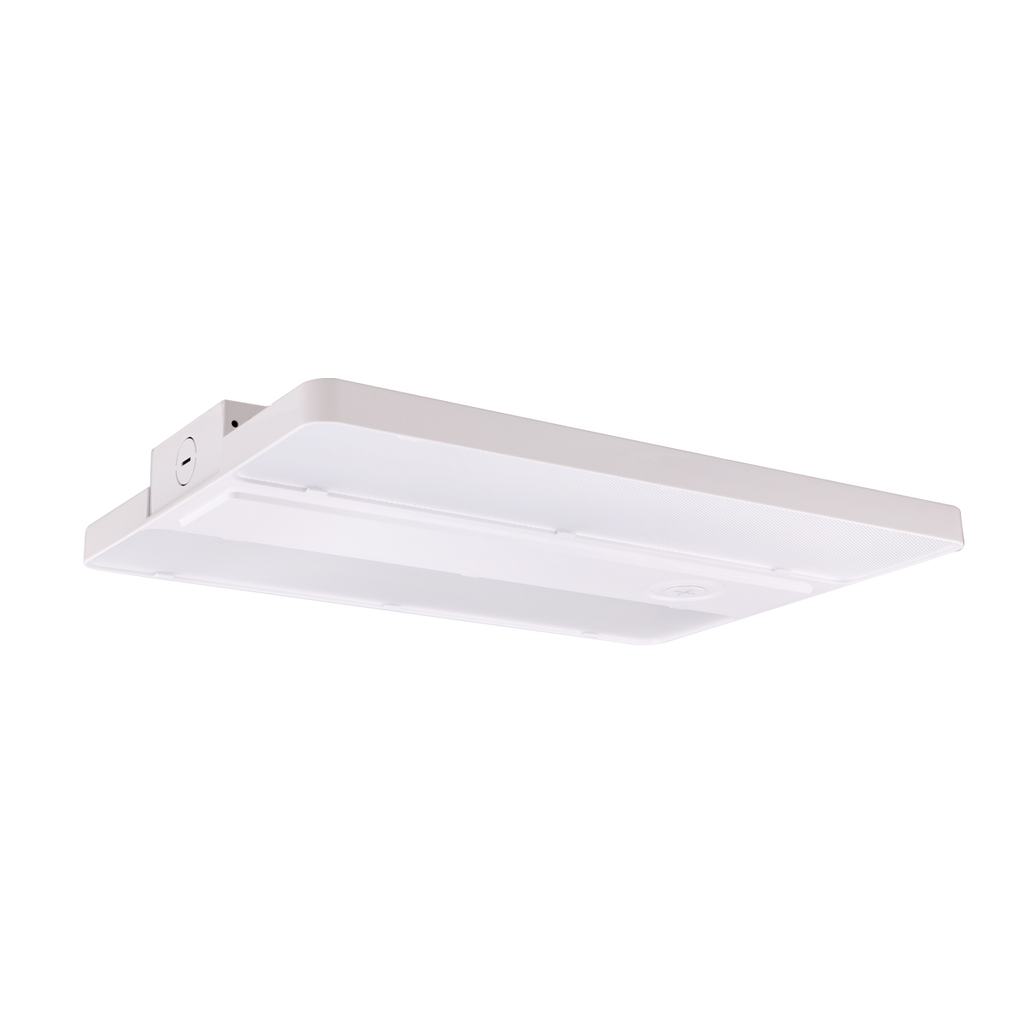

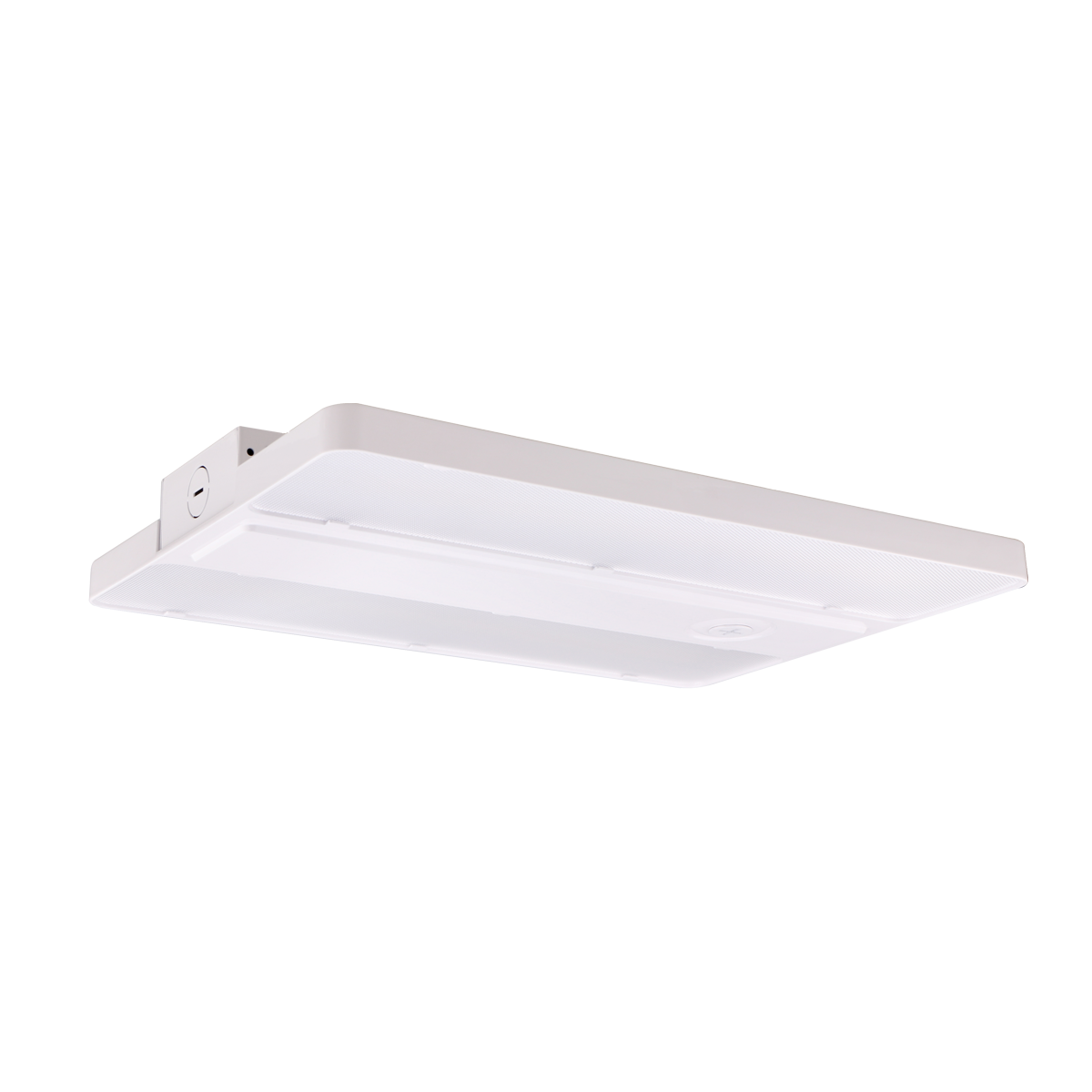

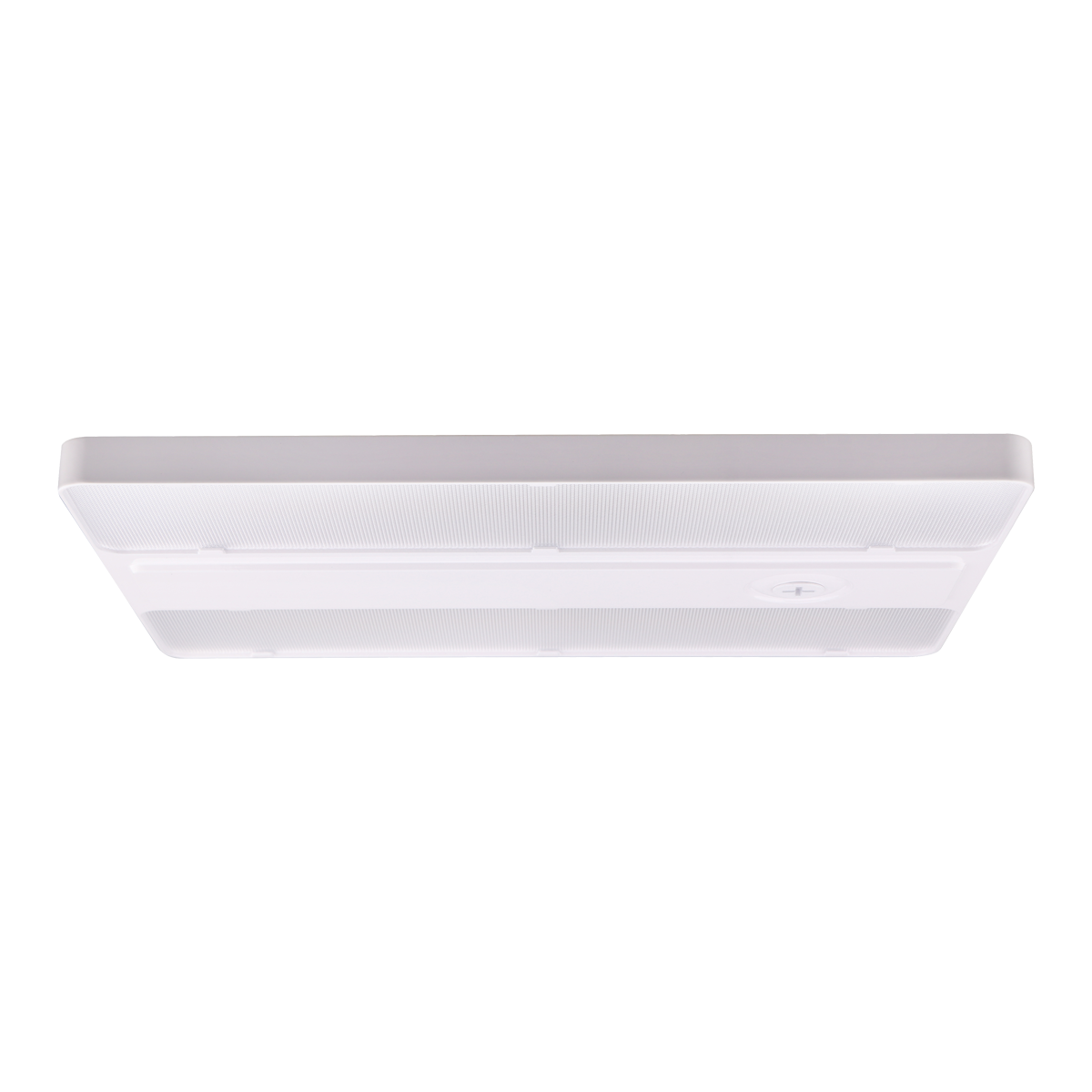

Linear High Bay Compact, PowerSet 150/130/110/90W, 5000K, 120-277V, 0-10V Dimming
LHC1-PS150-50-U
Order Code:13142
| Product Specifications | |
|---|---|
| Voltage | 120-277VAC |
| Lumens (lm) | 21,000 lm / 18,200 lm / 15,400 lm / 12,600 lm |
| Wattage | 150W / 130W / 110W / 90W |
| Efficacy (lm/W) | 140 lm/W |
| CCT (K) | 5000K |
| CRI | 80+ |
| Dimming | 0-10 |
| Replacement for | 6 lamp 4ft 32W T8 / 4 lamp 4ft 54W T5 / 400W HID (150W LHC1) 4 lamp 4ft 32W T8 / 250W HID (90W LHC1) |
| DLC Version | DLC Premium |
| T20 Status | Exempt |
| IP Rating | IP20 |
| Wet/Damp/Dry Location | Damp |
| Dimensions (L x W x H) | L: 14 3/16" (360 mm), W: 11" (280 mm), H: 1 7/8" (48 mm) |
| Housing Color | White |
| Lens Material New | Polycarbonate (PC) |
| Ambient Temp Range | Without Motion Sensor: -40F to 122F (-40C to 50C), With Motion Sensor: -22F to 122F (-30C to 50C) |
| Driver Surge Protection (kV) new | L/N-PE: 6kV, L-N: 6kV |
| Auxiliary Output | 12V |
