Description

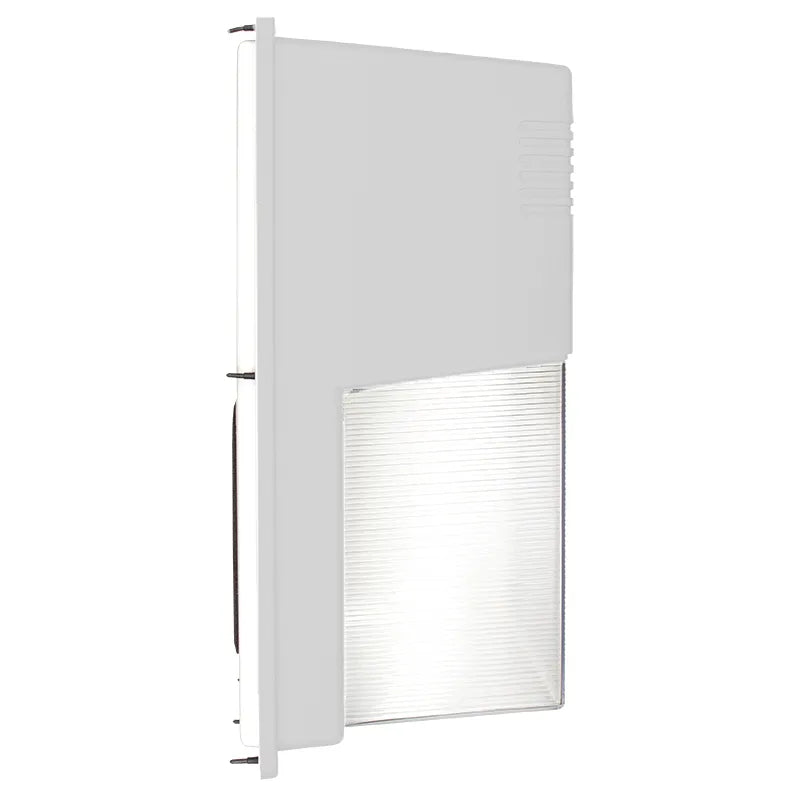

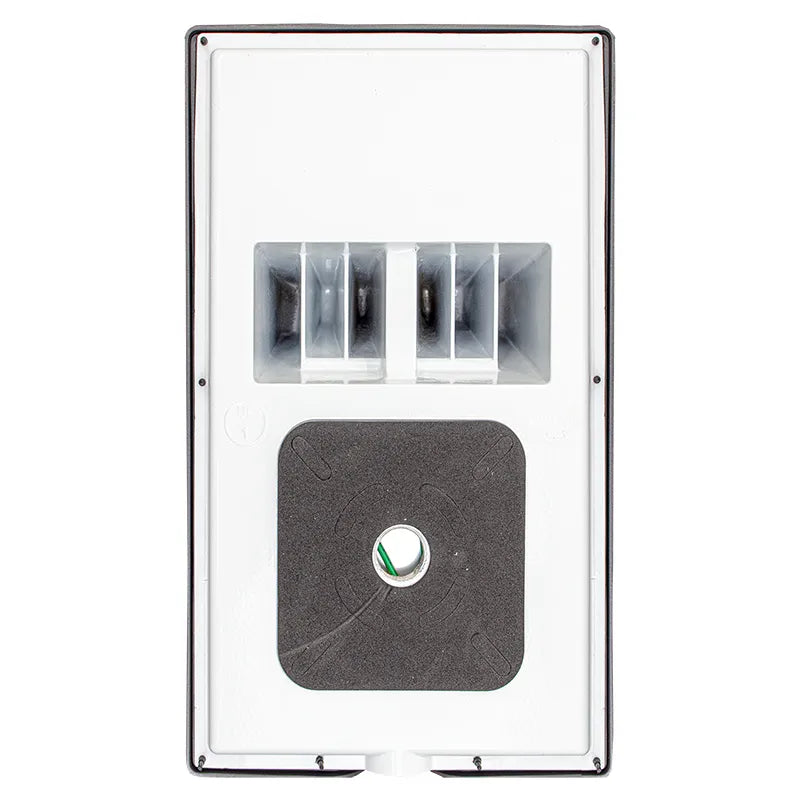

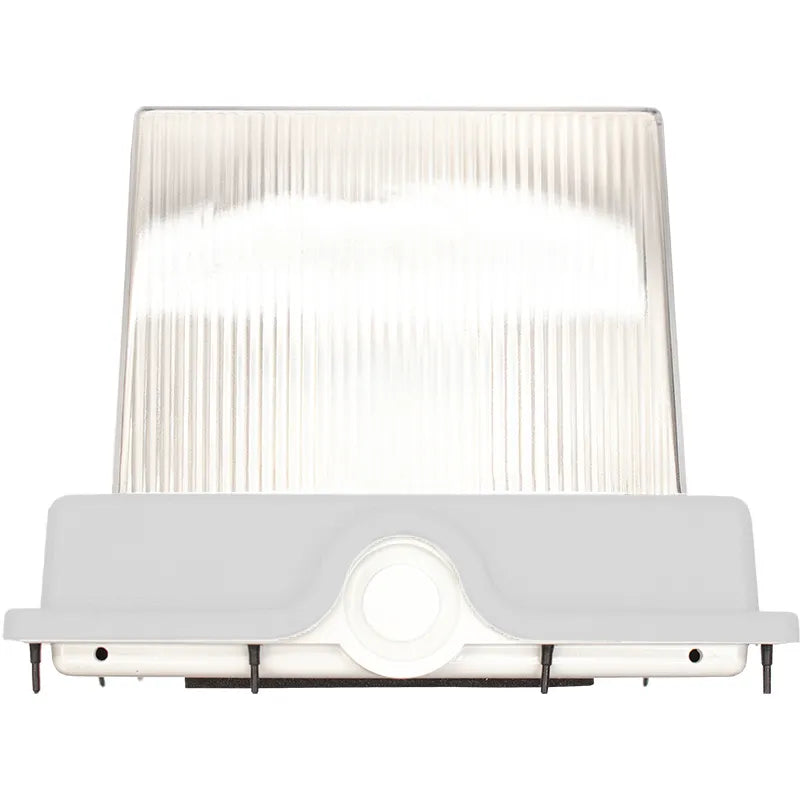

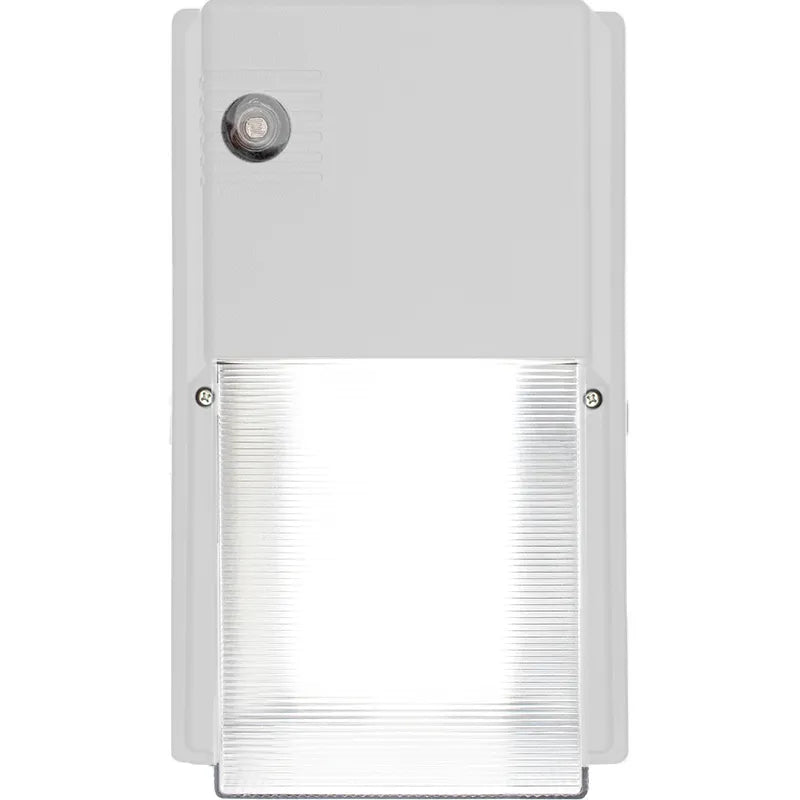

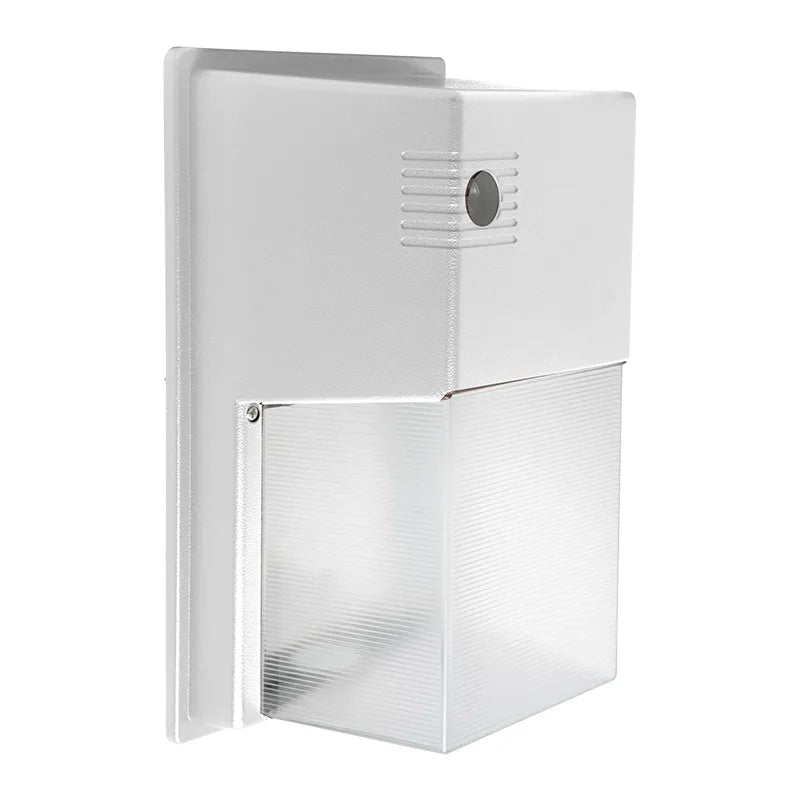

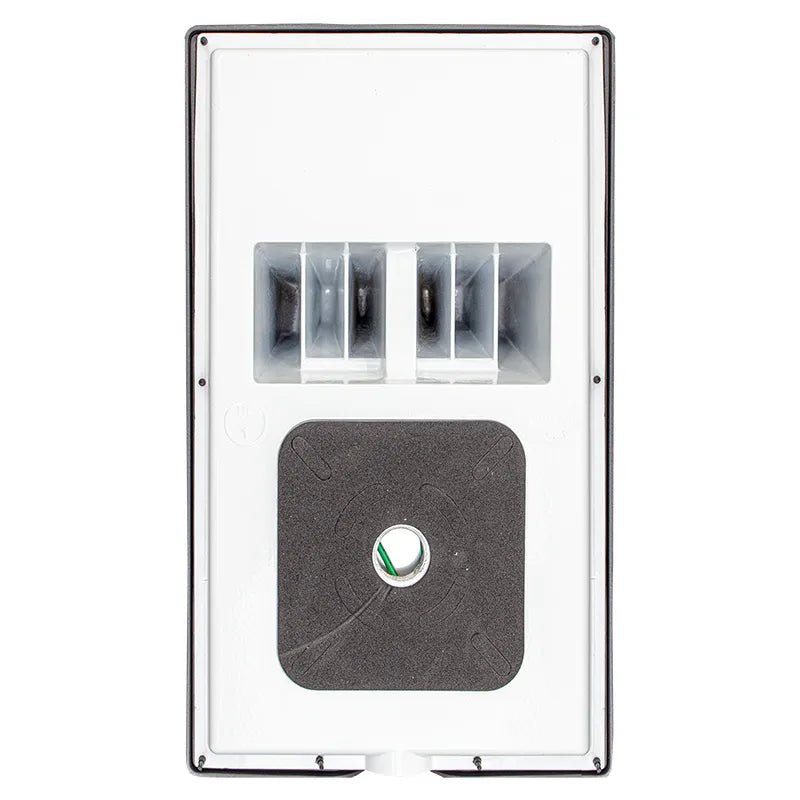

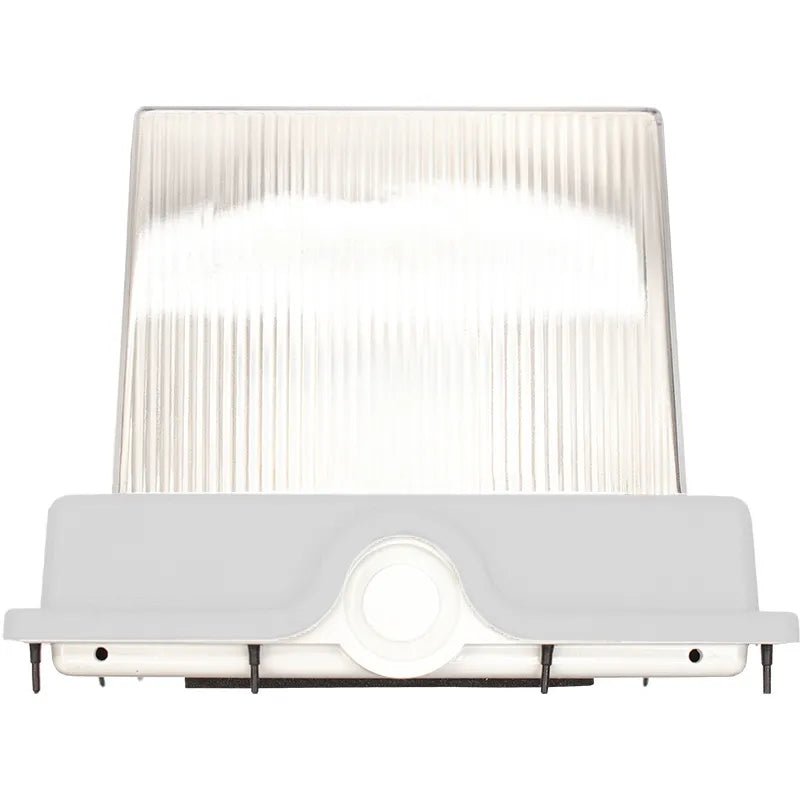

LED White Mini Wall Pack with Photocell, 13W/20W/26W, CCT
Technical Specs
- :: Voltage: 120-277V AC 60Hz
- :: Wattage: 13W/20W/26W
- :: Power Factor: >0.90
- :: Efficacy: 162 LPW
- :: Includes Pre-wired Photo Electric Control (Dusk to Dawn Photocell), 120 Volt, Removable
- :: Photocell Response Time: Maximum 3 Seconds
- :: Back plate: Aluminum LED board: High Conductive, Waterproof, Aging Resistance, Salt Mist Resistance
- :: Threaded 1/2” Knockout Provided on Top Section of the Back
- :: Polycarbonate Housing & Lens
- :: Non-Cutoff Optics Ideal for Maximum Light Distribution
- :: Operating Temperature: -4ºF -104ºF
- :: Wet Location
- :: 7-Year Warranty
- :: IP54
- :: LED Type/Brand: 2835LUMILEDS
- :: Front: Polycarbonate Lens and Housing
- :: Multi-Power (The switch is inside the fixture)
- :: Total Lumens: 4231LM Max.
- :: Color Temperatures: 3000K/4000K/5000K
- :: Color Rendering Index: CRI ≥ 70
- :: Beam Angle: 90° x 110°
- :: Rated life: 70,000 Hrs
Applications
- :: Ideal for general site lighting, loading docks, doorway, pathway and parking areas.
Back plate: Aluminum LED board: High Conductive, Waterproof, Aging Resistance, Salt Mist Resistance
Mechanical:
• Threaded 1/2” Knockout Provided on Top Section of the
Back
• Polycarbonate Housing & Lens
• Non-Cutoff Optics Ideal for Maximum Light Distribution
• Operating Temperature: -4ºF -104ºF
• Wet Location
• 7-Year Warranty
• IP54
