Description

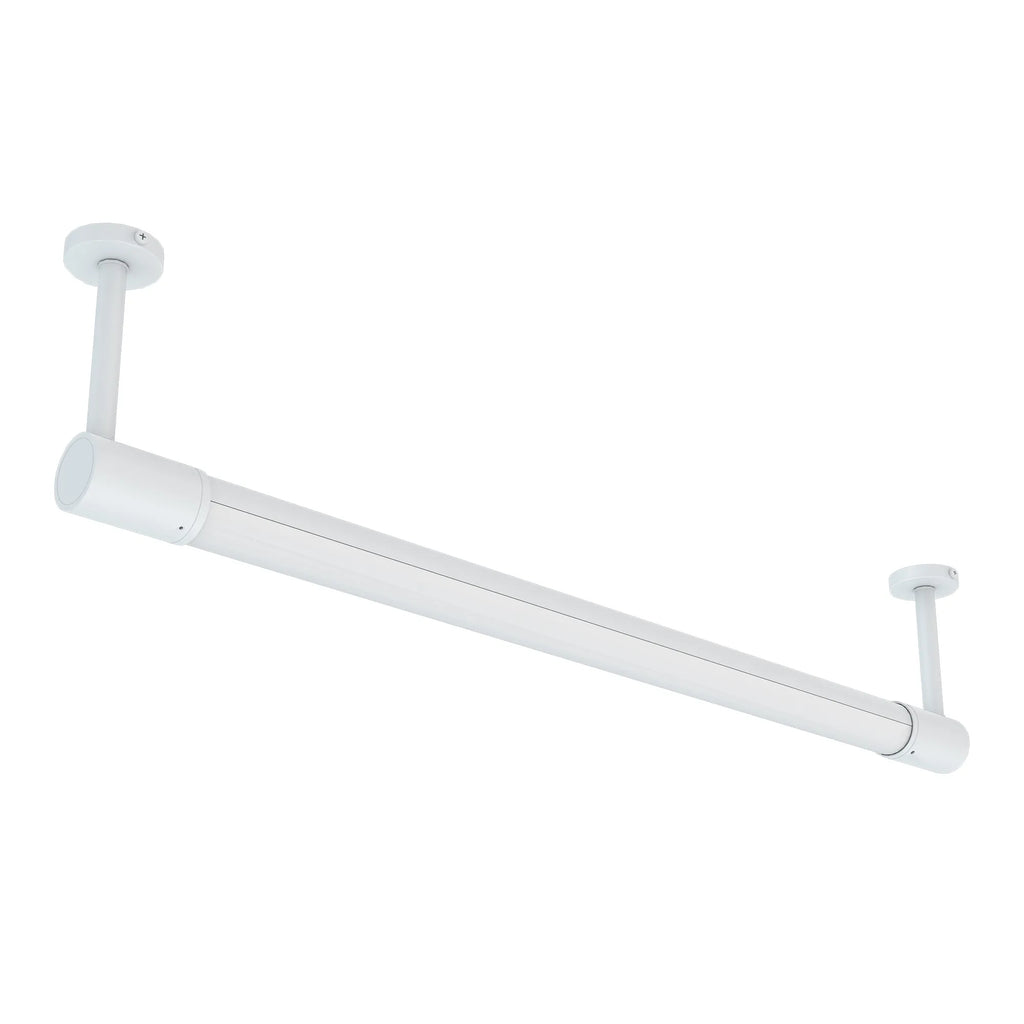

LED White 4ft. 80-Degree Tubular Rotatable IP66 Sign Light with Mount Canopy- CCT
Technical Specs
- :: Input Voltage: 120–277VAC, 50/60Hz
- :: Power Factor: ≥0.90
- :: Wattage: 30W
- :: Total Harmonic Distortion: <20%
- :: Luminous Efficacy: Up to ~130 lm/W
- :: Driver Type: Constant current, isolated
- :: Inrush Current: Low inrush design suitable for multiple fixtures on a circuit
- :: Class: Class I luminaire
- :: Dimmable: 0 ~ 10V Dimming
- :: Total Lumens: 2790LM
- :: Color Temperature: 3000K/3500K/4000K/5000K
- :: Multi-CCT (Selectable Switch Inside Fixture)
- :: Up Light Option Available
- :: Color Rendering Index: ≥ 80
- :: Beam Angle: 80° beam for close and medium throw
- :: Ambient Operating Temperature: -22°F to 122°F(-30°C to 50°C)
- :: Rated Life: 50,000 hrs
- :: 5-Year Warranty
- :: Housing Material: Extruded aluminum body
- :: Finish: Polyester powder coat, corrosion-resistant
- :: Standard Colors: White, Black
- :: Mounting Arms: Dual arms with locking gripper system
- :: Rotation Locking: Mechanical locking once aimed
- :: Wall mount standard using surface canopy
Applications
- :: Exterior sign illumination
- :: Channel letters and cabinet signs
- :: Architectural facade washing
- :: Wayfinding signage
- :: Retail storefronts
- :: Hospitality and mixed-use buildings
DESCRIPTION:
- Architectural IP66-rated LED sign light / wall-mounted tubular luminaire
- Designed for exterior sign illumination, facade washing, and architectural accent lighting
- Rotatable light tube with dual adjustable mounting arms for precise aiming
- Modular system allows continuous linear runs using inline coupling accessories
- Suitable for wet locations and harsh outdoor environments
MECHANICAL:
- Housing Material: Extruded aluminum body
- Finish: Polyester powder coat, corrosion-resistant
- Standard Colors: White, Black
- Mounting Arms: Dual arms with locking gripper system
- Rotation Locking: Mechanical locking once aimed
- Wall mount standard using surface canopy
- Ceiling mount capable using the mounting base plate
- Dual-arm mounting provides stability for longer runs
- Field-adjustable tilt and rotation without opening the optical chamber
- Compatible with extension arm accessories for increased stand-off from the wall or sign face
- Gasketed construction to prevent water and dust
- IP Rating: IP66
- Suitable for Wet locations
LIGHTING:
- Dimmable: 0 ~ 10V Dimming
- Total Lumens: 2790LM
- Color Temperature: 3000K/3500K/4000K/5000K
- Multi-CCT (Selectable Switch Inside Fixture)
- Up Light Option Available
- Color Rendering Index: ≥ 80
- Beam Angle:
• 80° beam for close and medium throw
- Ambient Operating Temperature: -22°F to 122°F (-30°C to 50°C)
- Rated Life: 50,000 hrs
- 5-Year Warranty
