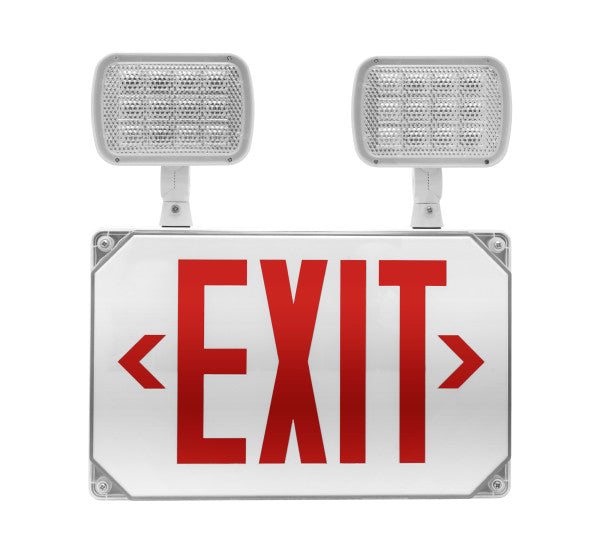

LED Wet Location Emergency Exit Sign with Adjustable Light Heads
LED Wet Location Emergency Exit Sign with Adjustable Light Heads
LED Wet Location Emergency Exit Sign with Adjustable Light Heads
LED Wet Location Emergency Exit Sign with Adjustable Light Heads

LED Wet Location Emergency Exit Sign with Adjustable Light Heads, Red Lettering

Nicor
Part : ECL51UNVWHR2
Price:
$83.95

Please contact us for quantity discount

Description

LED Wet Location Emergency Exit Sign with Adjustable Light Heads, Red Lettering

Features
  • Suitable for Outdoor and Wet-Location settings
  • Adjustable LED heads tilt up to 120° vertically and rotate up to 360°
  • Sealed Polycarbonate shield protects internal components
  • 90-minute emergency battery backup (UL 924 compliant)
  • 3.6-Volt maintenance-free Nickel Metal Hydride 1200mAh battery
  • Injection molded thermoplastic ABS housing (UL94-V-0 rated)
  • Dual-Voltage for residential and commercial applications (120/277V)
  • Features a Push-To-Test button with an indicator light
  • Includes universal mounting plate for back or end mount installation
  • Mounting Hardware and installation instructions included
  • Available with red or green lettering
  • Removable covers for directional chevron arrows
  • Protected by NICOR’s 1-Year Limited Warranty
Model Number
ECL51UNVWHR2
Product Title
ECL5 Series LED Wet Location Emergency Exit Sign with Adjustable Light Heads, Red Lettering
UPC
767706172386

The NICOR ECL5 Series Outdoor LED Exit Sign Combo with Emergency Lighting is code compliant for Outdoor, Wet Location, and Battery Backup requirements. It features a durable corrosion-resistant polycarbonate shield to ensure a wet-location rating. It’s constructed using a new injection-molded ABS thermoplastic housing that’s flammability (UL-94-V-0) rated. The ECL5 includes a Nickel Metal Hydride battery to provide 90-minute emergency run-time that kicks on if the power goes out. The ECL5 uses less than 3.8-Watts of electricity and can be installed in both 120-Volt and 277-Volt applications. The low-profile design keeps the fixture lightweight and easy to install. Two independent LED light heads (6400K) produce 190 lumens and are adjustable to 120° vertical tilt and 360° rotation. It can be surface mounted using the included mounting bracket with EZ quick-connect. The ECL5 includes an additional faceplate for the backside (if required) and removable chevron arrows. The ECL5 is Wet-Location rated and protected by NICOR’s 1-Year Limited Warranty.

SPECS

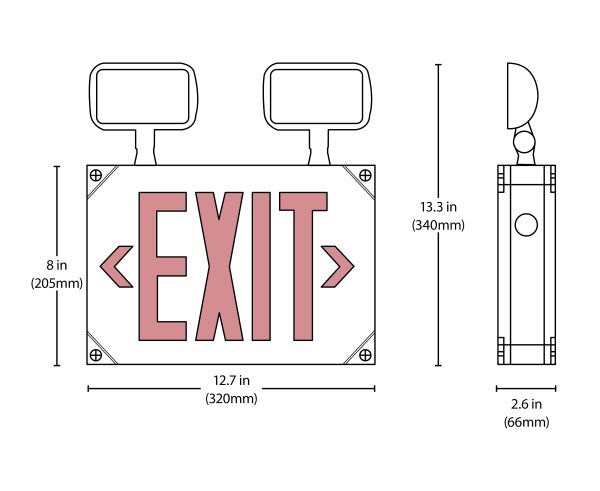

Size (in.)
12.7
Product Color
White, Red Letters
Finish
Textured
Light Source
LED
Wattage
2.9 (120 VAC)
3.8 (277 VAC)
Wattage Equivalent
25
Voltage
120/277VAC
Lumen Output
190
Color Temperature (CCT)
6400K
CRI
73
Operating Temperature
5°F to 104°F (-15°C to 40°C)
Listings/Certifications
UL Listed
cUL Listed
UL 924 Listed
UL-94-V-0 Flame Retardant
BC
Wet-Location
