Description

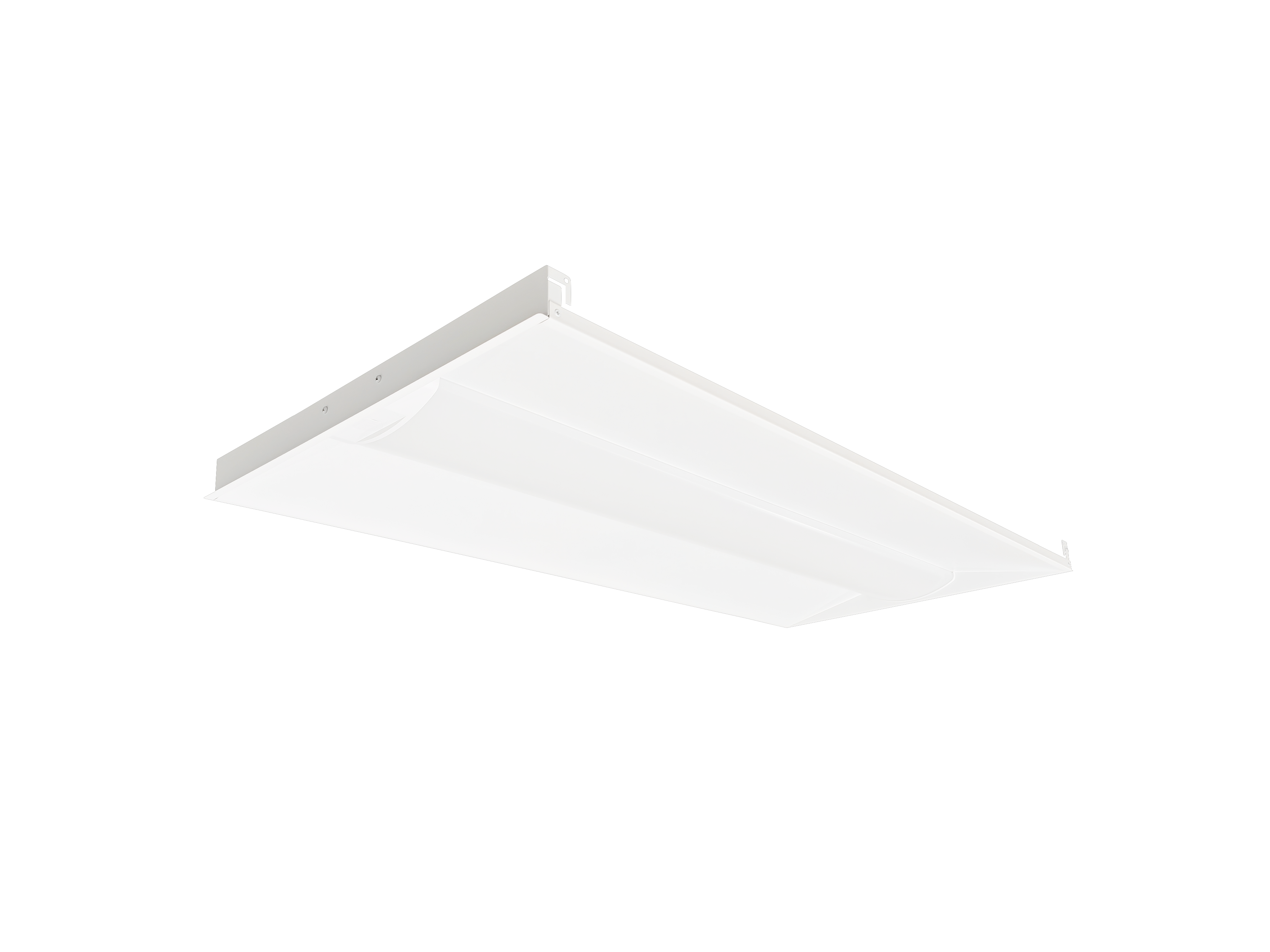

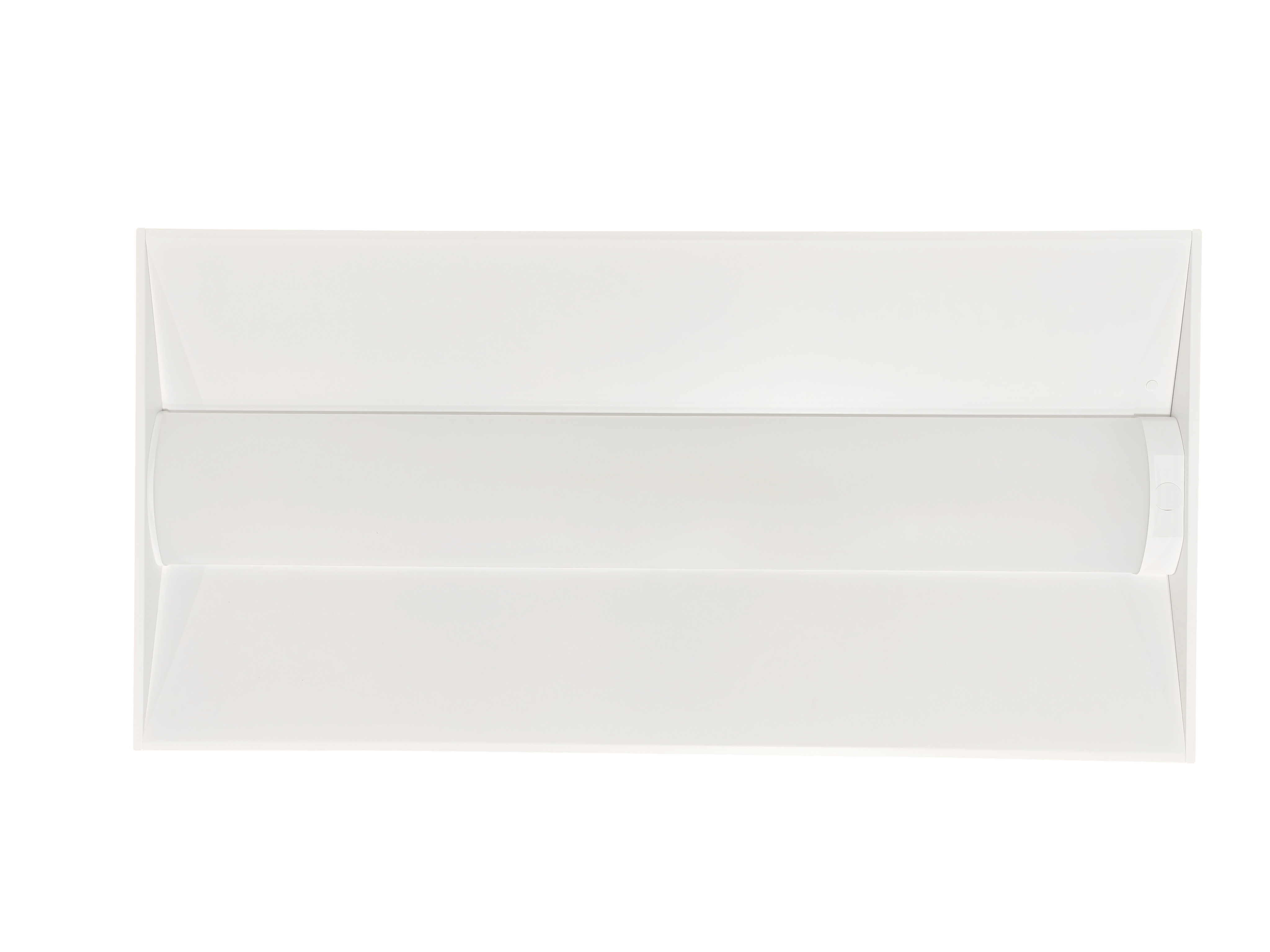

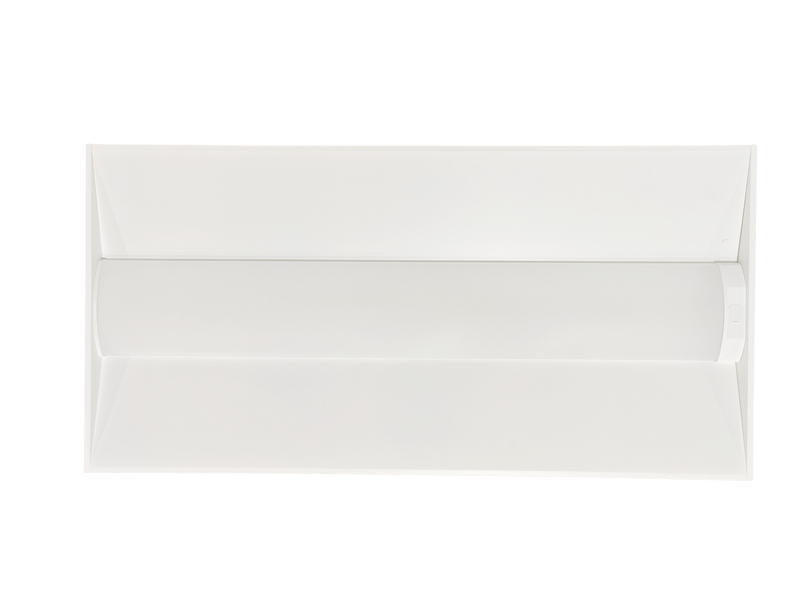

LED Volumetric Troffer, 2x4, PowerSet 90/75/65W, FieldCCeT
| Product Specifications | |
|---|---|
| Voltage | 120-347VAC |
| Lumens (lm) | 12600/10500/9100 lm |
| Wattage | 90/75/65W |
| Efficacy (lm/W) | 140 lm/W |
| CCT | 3500/4000/5000 |
| CRI | 80+ |
| Dimming | 0-10 |
| Nominal Size | 2x4 |
| DLC Version | DLC Standard |
| T20 Status | Exempt |
| T24/JA8 Status | No |
| Energy Star | No |
| IP Rating | IP20 |
| Wet/Damp/Dry Location | Damp |
| RoHS Compliant | Yes |
| NSF Rating | No |
| FCC Compliant | Yes |
| UL | Yes |
| Dimensions (L x W x H) | 1213*603*54mm |
| Housing Color | White |
| Lens Material | Acrylic (PMMA) |
| Operating Temp Range (°F/°C) | -40F to 122F (-40C to 50C) |
| Driver Surge Protection (kV) | 2.5 kV |
| Auxiliary Output | 100mA |
| Warranty | 5 Years |
| Brand | EiKO |
H I G H L I G H T S
• Architectural recessed luminaire featuring Controls Ready
• Controls Ready makes adding controls quick and easy. Includes snap-in receptacle for
Standalone (Sept ‘23) and Networked Lighting Controls
• Flat modern lens featuring high-quality, non-yellowing PMMA acrylic lens ensures optimal
light uniformity
• Multiple mounting options: recessed, suspended, surface mount
• Available in 1’x4’, 2’x2’ and 2’x4’ sizes
• PowerSet feature allows for multiple lumen stops out of the box
• FieldCCeT features provides multiple color temperature settings in one fixture
