Description

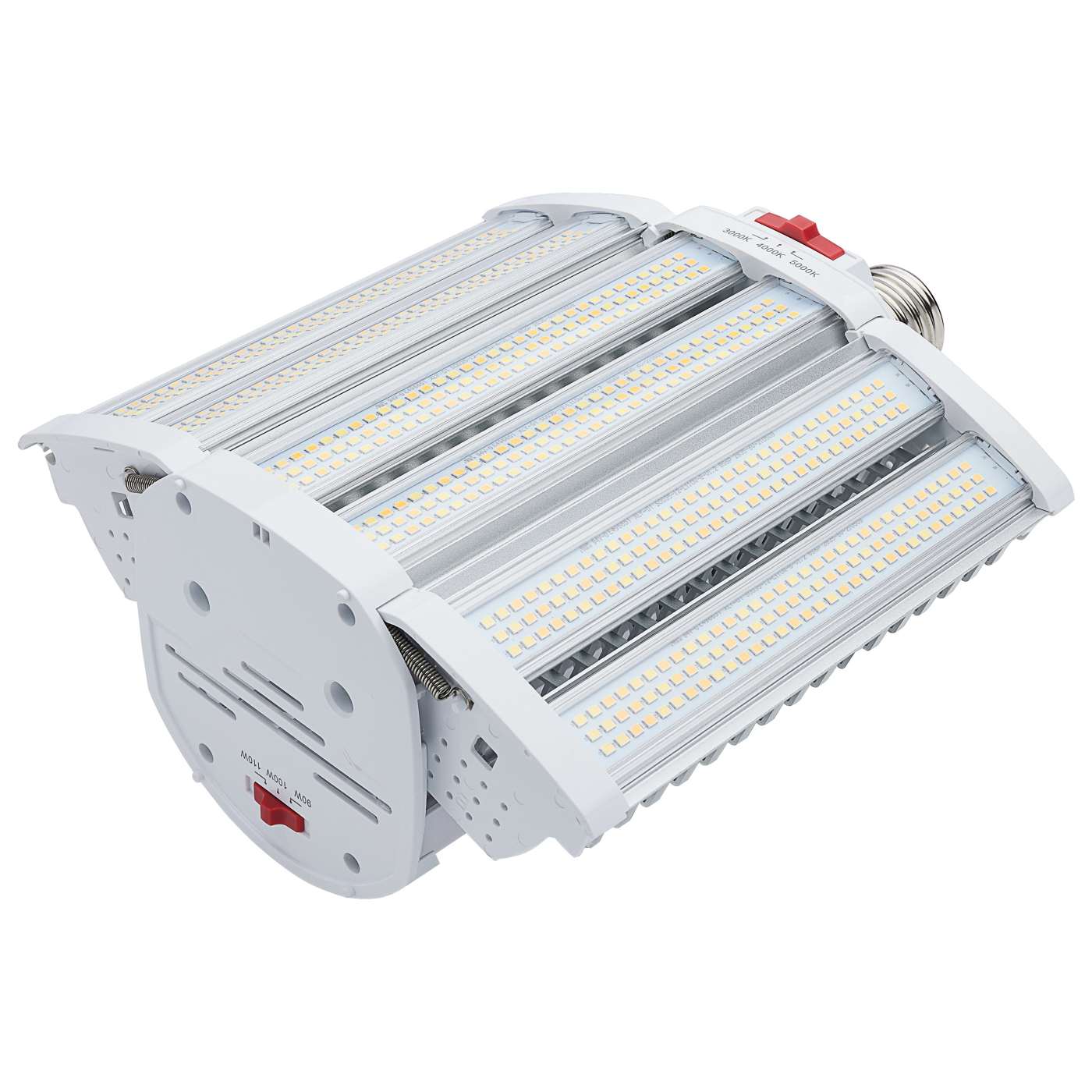

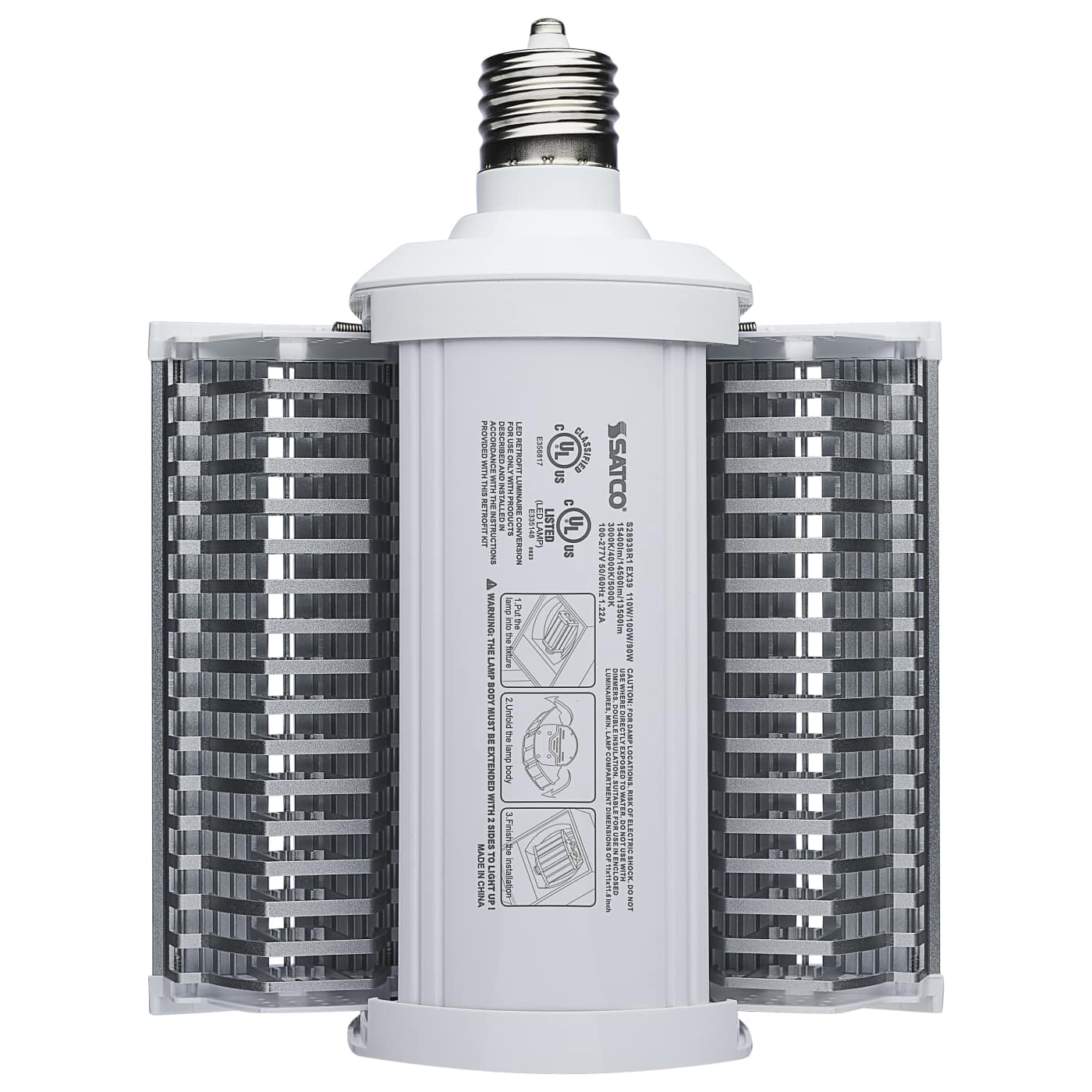

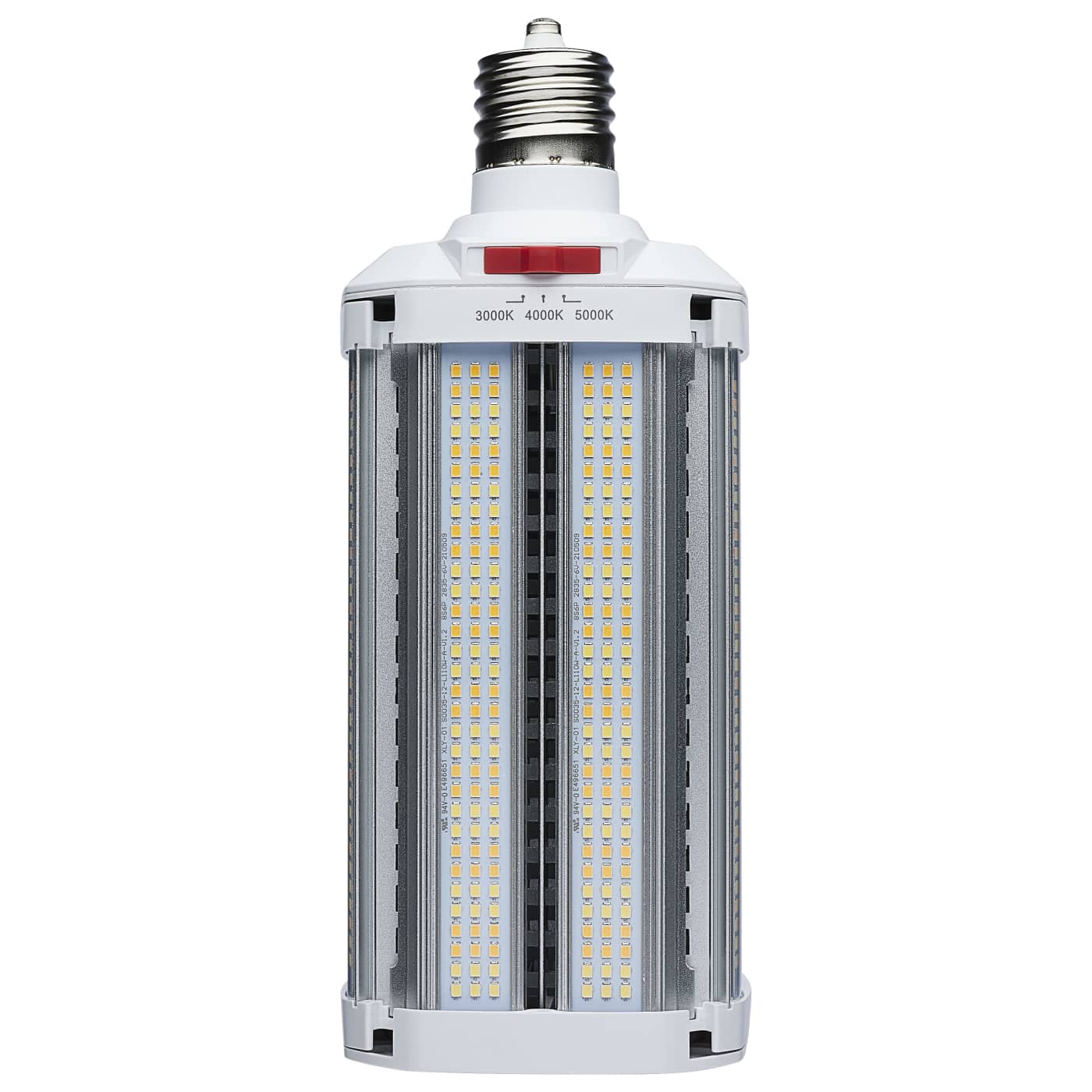

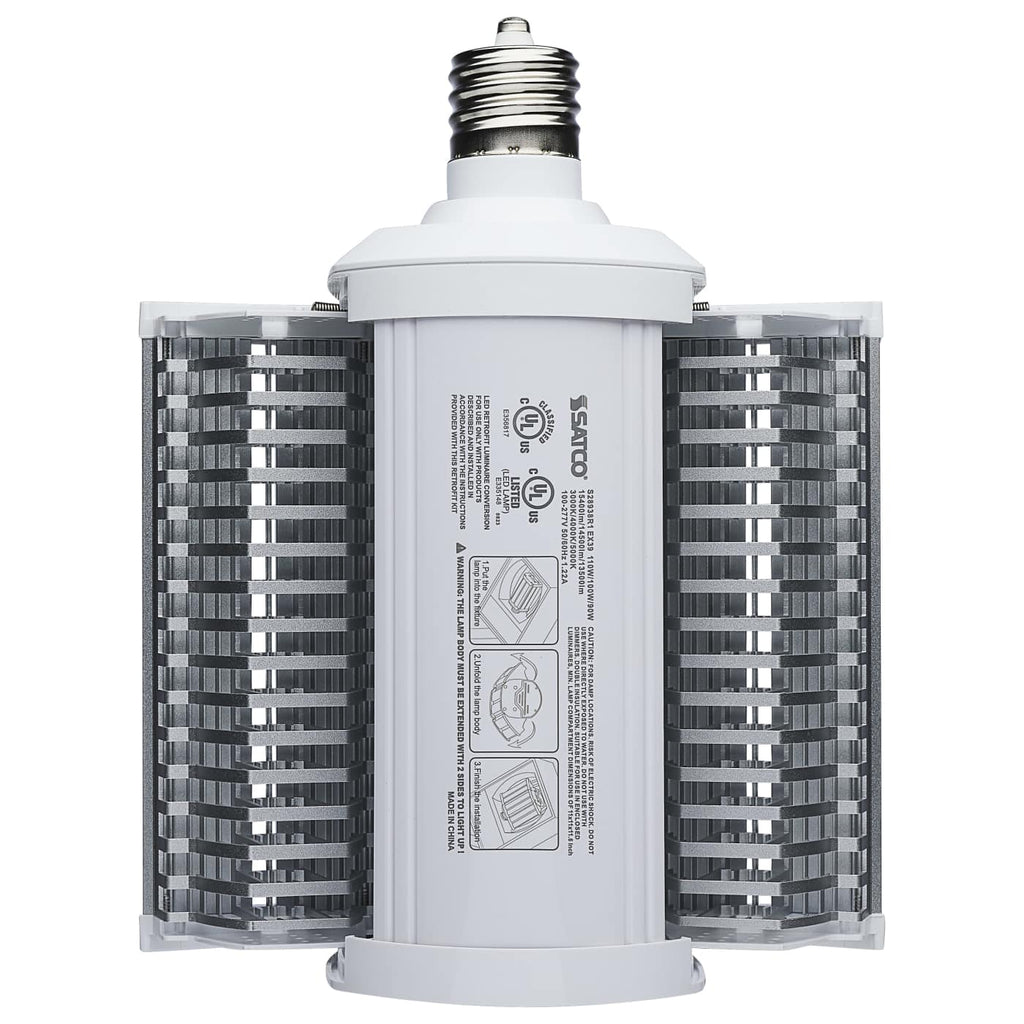

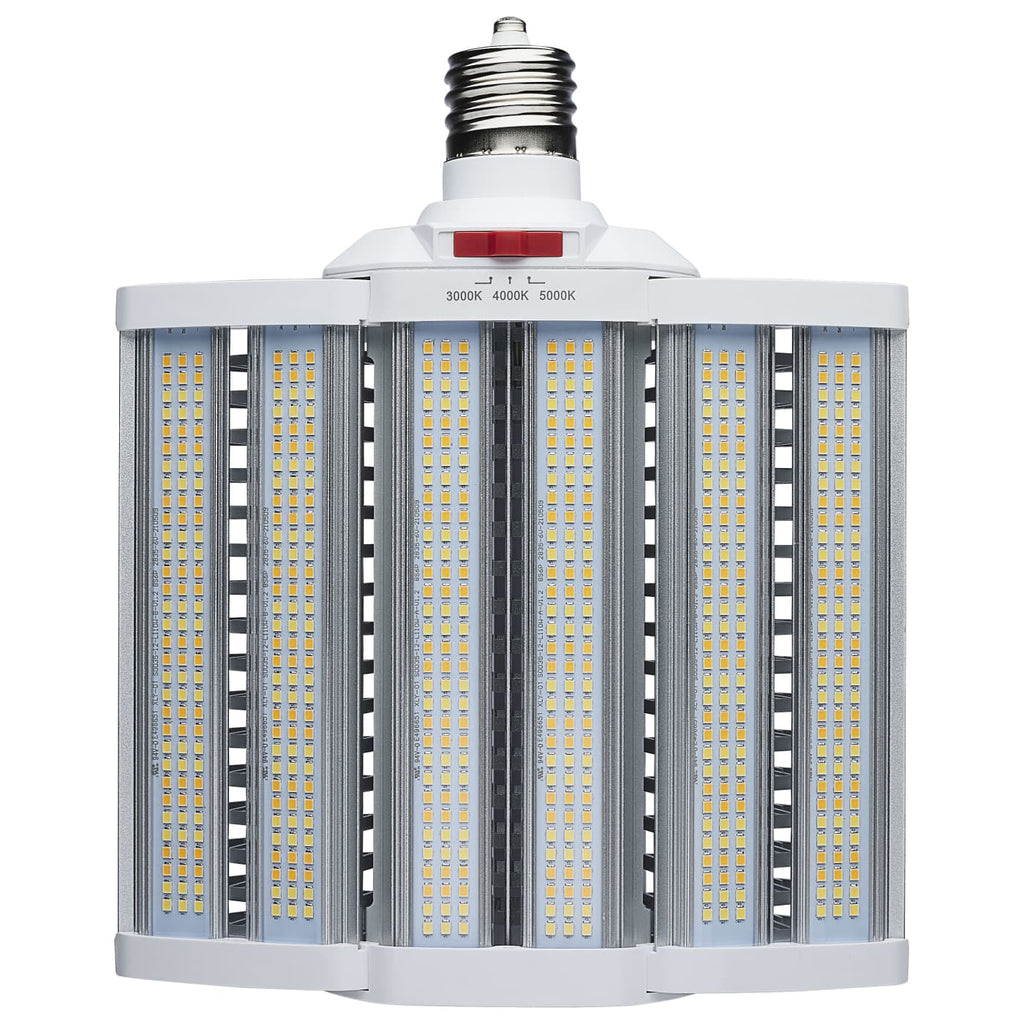

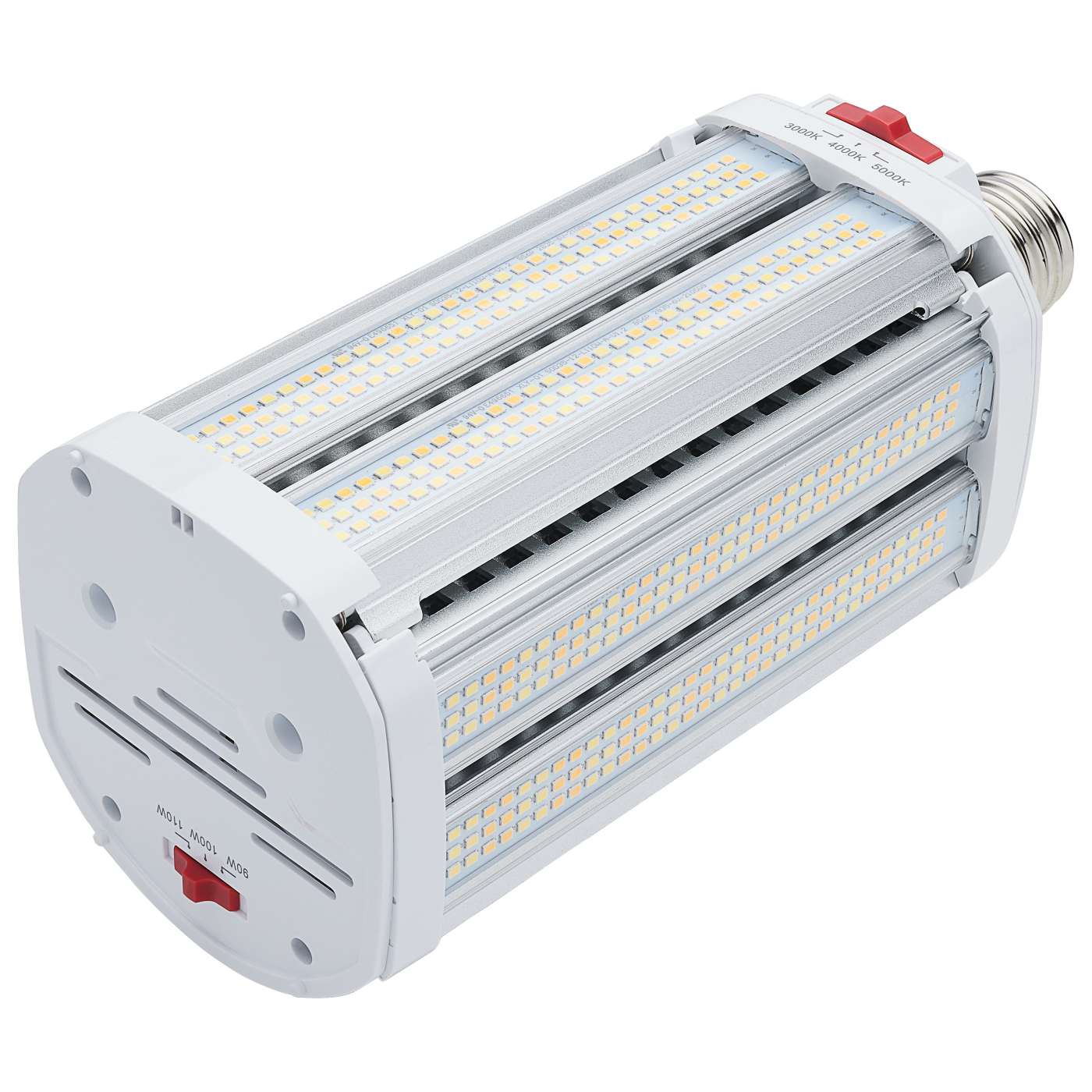

LED Shoe Box Lamp; 90/100/110 Wattage Select; 3K/4K/5K CCT Selectable; 120-277V
- LED Shoe Box Lamp
- 90/100/110 Wattage Selectable
- 3K/4K/5K CCT Selectable
- 120-277 Volt
- White Finish
Electrical
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 180 |
| Color Temp | Soft White to Natural Light |
| CRI | 80+ |
| Dimming Type | Step Dimming |
| Operating Frequency | 50/60Hz |
| Operating Temp | -30C (-22F) to +45C (+113F) |
| HID Equivalent | 250W/320W/400W |
| Lumens | 13500L/14500L/15400L |
| Volts | 120V-277V |
| Watts | 90W/100W/110W |
General
| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required |
| Dimmable Text | Step Dimming; Only dimmable through wattage selection switch on lamp. NOT dimmable with wall dimmers or any other dimming controls. |
| Lamp Filament | LED |
| Material | Aluminum |
| Fixture Type | Expandable Hi-Pro |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 4KV |
| Total Harmonic Distortion | <20% |
| CCT Selectable | Yes |
| Wattage Selectable | Yes |
| Finish Family | White |
| Amps | 0.750-0.325/0.833-0.361/0.917-0.397A |
| Has Camera | No |
| IOT Enabled | No |
| Lens Material | Polycarbonate (PC) |
| Minimum Compartment Size | Length: 11 in. Width: 11 in. Height: 11.6 in. |
| Operating Position | Universal |
| Power Factor | >0.9 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Outdoor |
| Product Technology | LED |
| Incandescent Equivalent | 750W |
