Description

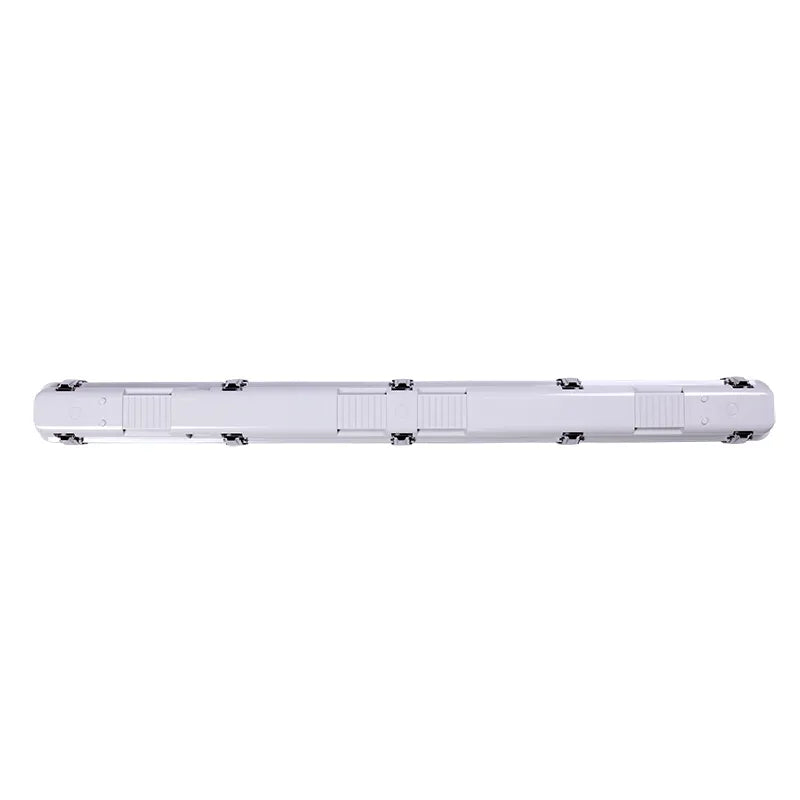

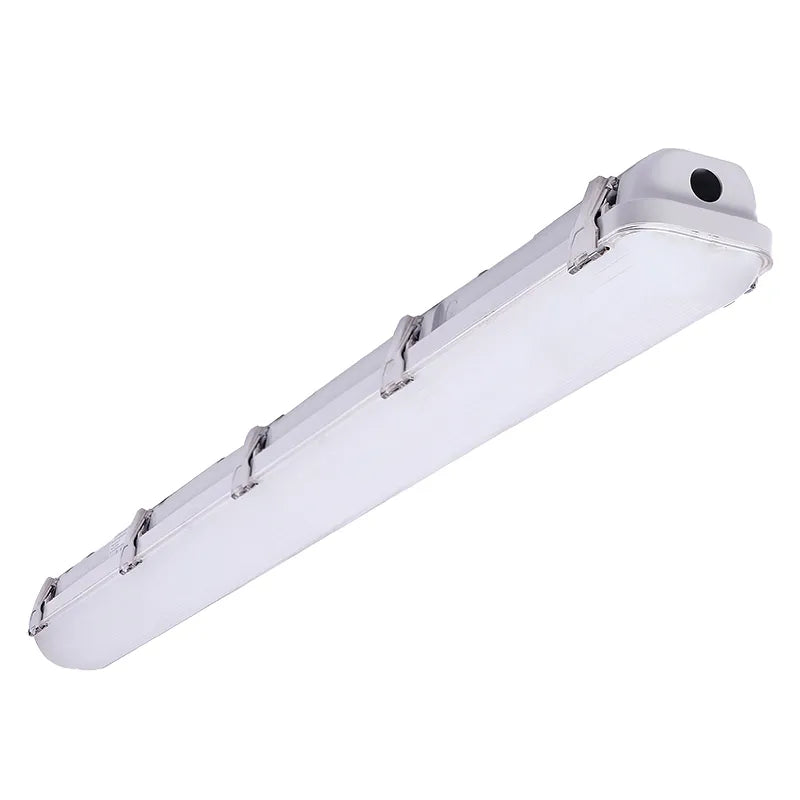

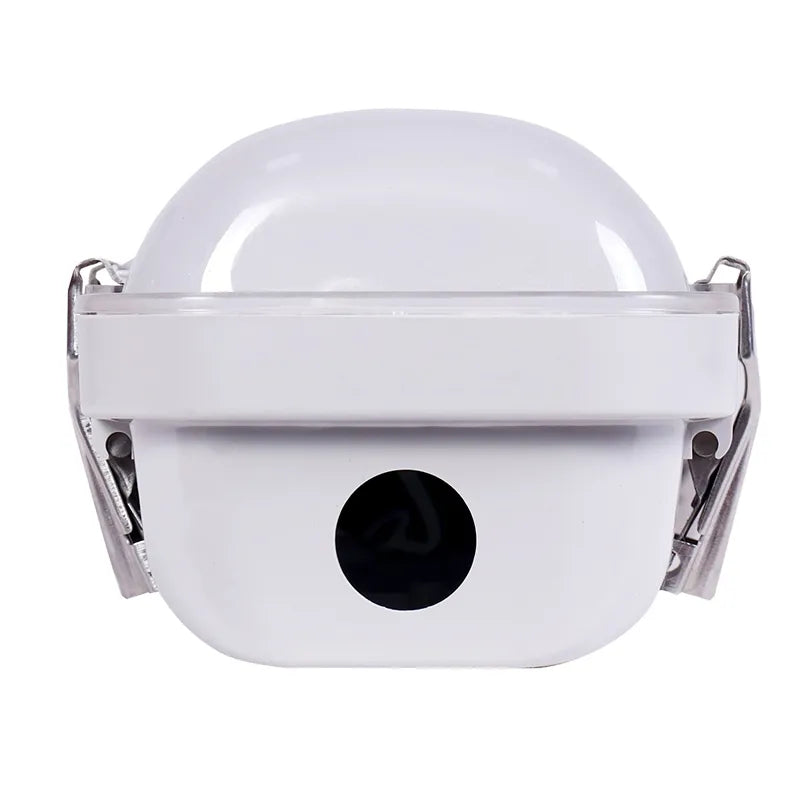

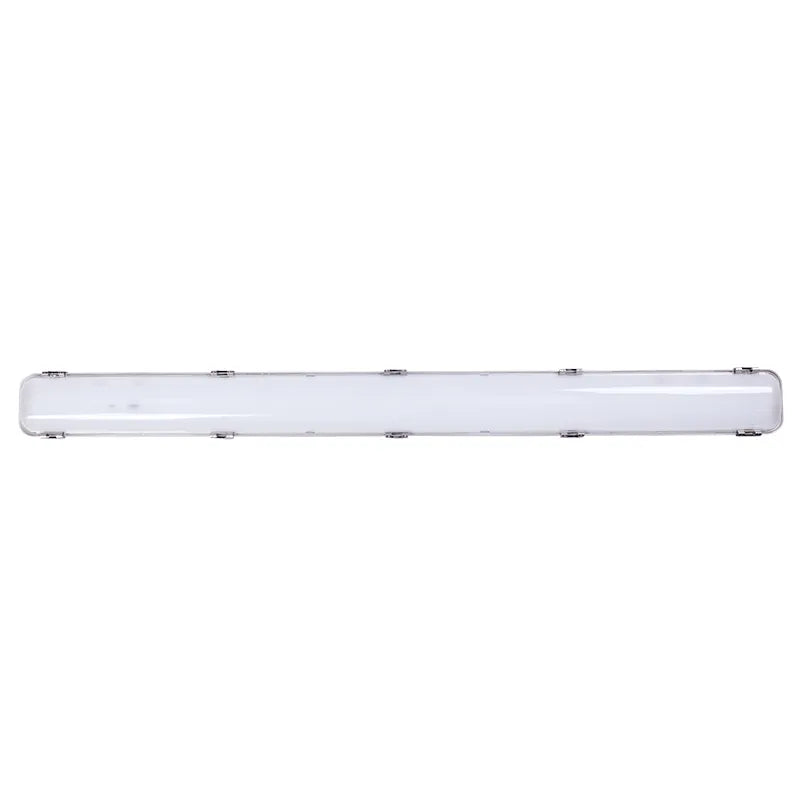

LED NSF Linear Vapor-Tight Fixture with Sensor & Emergency Backup- Wattage and
CCT
Technical Specs
- :: Voltage: 120-277VAC 50/60Hz
- :: Wattage: 20W/28W/35W
- :: Power Factor: >0.9
- :: Efficacy: 140LM/W
- :: Grey Finish
- :: Housing: Polycarbonate
- :: Vandal-Proof Polycarbonate Lens
- :: 1/2” NPT knockout on both ends. Liquid Tight Cord Connectors Incl.
- :: Polycarbonate Construction Highly Impacts Resistant
- :: UV-Stabilized Polycarbonate Diffuser Eliminates Glare
- :: Diffuser Crystals Enhance Even Light Distribution
- :: Stainless Steel Clips Evenly Seal The Luminaire
- :: Stainless Steel Clamp
- :: Operating Temp:-25.6°F to 104°F
- :: Suitable For Wet Locations
- :: IP Rating: IP66
- :: Detection Range: 17Ft. / 360°
- :: Mounting Height: 25Ft. Max.
- :: DIP Settings switch on The Sensor
- :: Optional Remote Control (WEC-3RC)
- :: Output Power: 9W
- :: Output Voltage: 48V
- :: Li-Ion Battery / >90 Minutes Emergency Operation
- :: Test Button Installed on The Side of The Fixture
- :: Dimmable: 0~10V Dimming
- :: LED SMD Type: 2835
- :: Total Lumens: 4900LM Max.
- :: Multi-CCT & Power (Selectable Switch Inside Fixture)
Applications
- :: Ideal for offices, retail stores, showrooms, and residential applications. Uniquely suited for areas where accessing the fixture is challenging
- :: Suitable for restaurants, bakeries, food facilities, gyms, pool areas, and any application where NSF certified fixtures or high-end architectural designer grade fixtures are required.
- :: NSF/ANSI 2:2015 Food Equipment: Splash Zone: Equipment surfaces that are subject to splash and food spillage during operation of the equipment other than those in a direct contact food-zone.
