Description

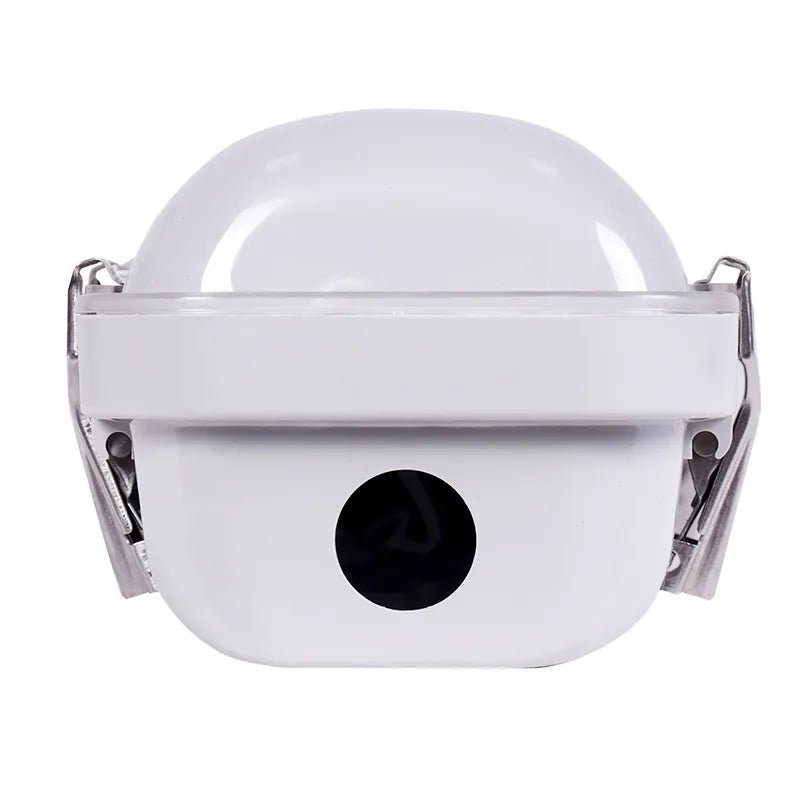

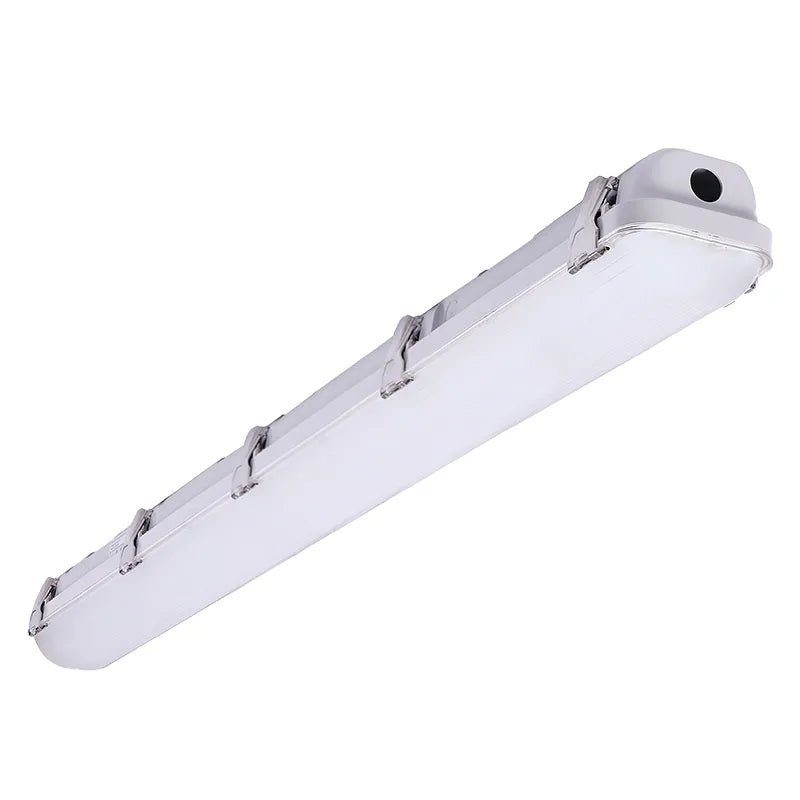

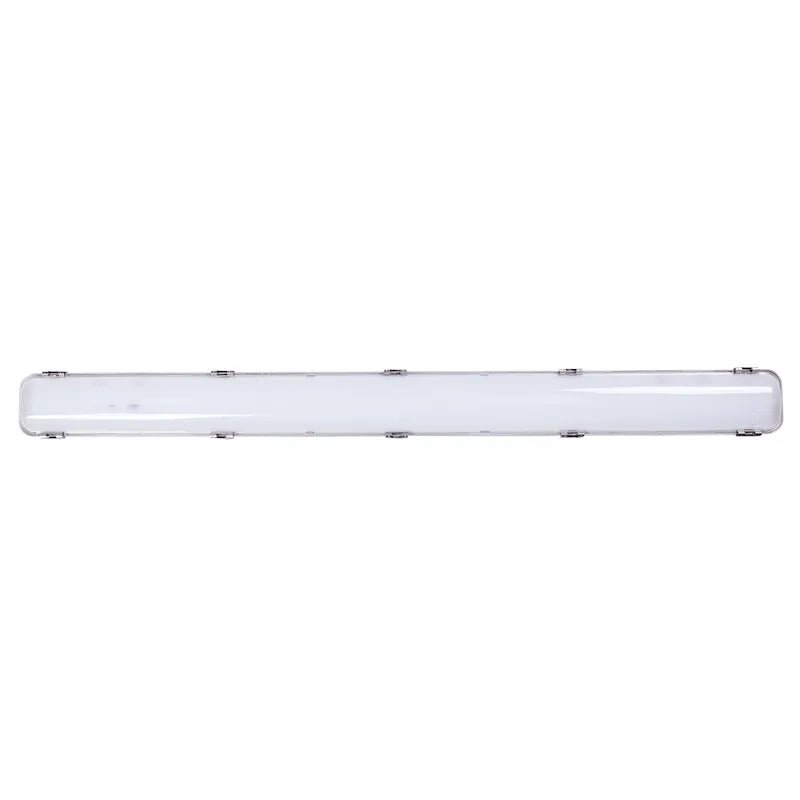

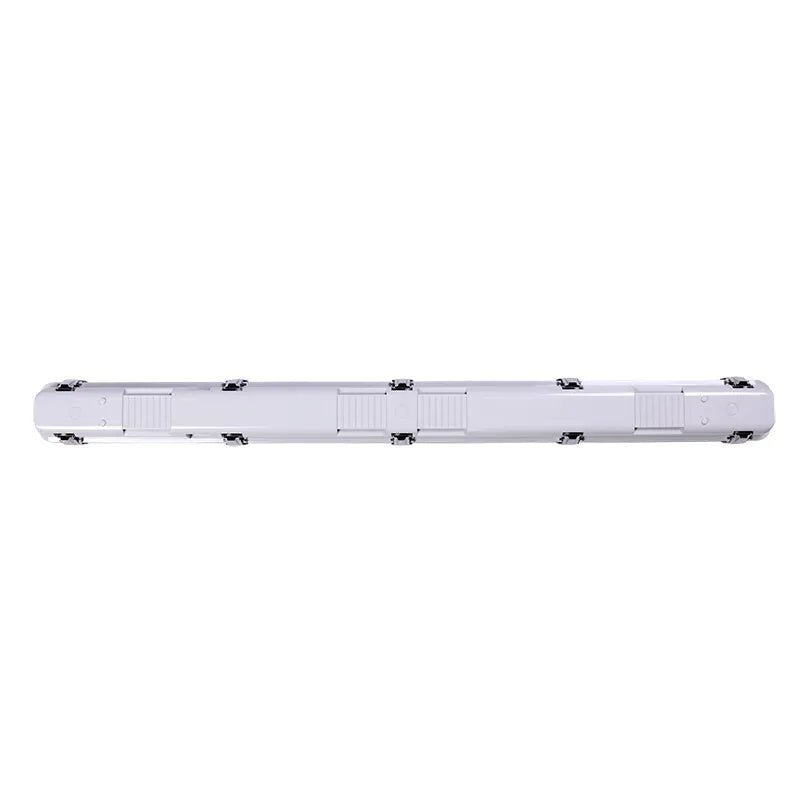

LED Linear Vapor-Tight Fixture with Sensor & Emergency Backup, 30W/45W/66W, 3500K/4000K/5000K
Suitable for restaurants, bakeries, food facilities, gyms, pool areas, workshops, garages, canopies, parking garages, cold storage facilities, food processing facilities, farmyards, and other harsh, humid, dusty, and wet environment lighting applications, and any application where NSF-certified fixtures or high-end architectural designer-grade fixtures are required. NSF/ANSI 2:2015 Food Equipment: Splash Zone: Equipment surfaces that are subject to splash and food spillage during operation of the equipment other than those in a direct contact food zone.
Technical Specs
- :: Voltage: 120-277VAC 50/60Hz
- :: Wattage: 30W/45W/60W
- :: Power Factor: >0.9
- :: Efficacy: 140LM/W
- :: Grey Finish
- :: Housing: Polycarbonate
- :: Vandal-Proof Polycarbonate Lens
- :: 1/2” NPT knockout on both ends. Liquid-Tight Cord Connectors Incl.
- :: Polycarbonate Construction Highly Impact-Resistant
- :: UV-Stabilized Polycarbonate Diffuser Eliminates Glare
- :: Diffuser Crystals Enhance Even Light Distribution
- :: Stainless Steel Clips Evenly Seal The Luminaire
- :: Stainless Steel Clamp
- :: Operating Temp:-25.6°F to 104°F
- :: Suitable For Wet Locations
- :: IP Rating: IP66
- :: Detection Range: 17Ft. / 360°
- :: Mounting Height: 25Ft. Max.
- :: DIP Settings switch on The Sensor
- :: Optional Remote Control (WEC-3RC)
- :: Output Power: 9W
- :: Output Voltage: 48V
- :: Li-Ion Battery / >90 Minutes Emergency Operation
- :: Test Button Installed on The Side of The Fixture
- :: Dimmable: 0~10V Dimming
- :: LED SMD Type: 2835
- :: Total Lumens: 8400LM
- :: Multi-CCT & Power(Selectable Switch Inside Fixture)
Mechanical:
• Gray Finish
• Vandal-Proof Polycarbonate Lens
• 1/2” NPT knockout on both ends. Liquid-tight cord connectors included.
• Housing: Polycarbonate construction, highly impact-resistant, vandal-proof lens with stainless-steel clips.
Rated IP66 / NEMA 4X, NSF Certified, suitable for wet locations
• UV-Stabilized Polycarbonate Diffuser Eliminates Glare
• Diffuser Crystals Enhance Even Light Distribution
• Stainless Steel Clips Evenly Seal The Luminaire
• Stainless Steel Clamp
• Operating Temp:-25.6°F to 104°F
• Suitable For Wet Locations
• IP Rating: IP66
Sensor Spec:
Detection Range: 17Ft. / 360°
Mounting Height: 25Ft. Max.
DIP Settings switch on The Sensor
Optional Remote Control (WEC-3RC)
Emergency Battery Backup Spec:
Output Power: 9W
Output Voltage: 48V
Li-Ion Battery / >90 Minutes Emergency Operation
Test Button Installed on The Side of The Fixture
