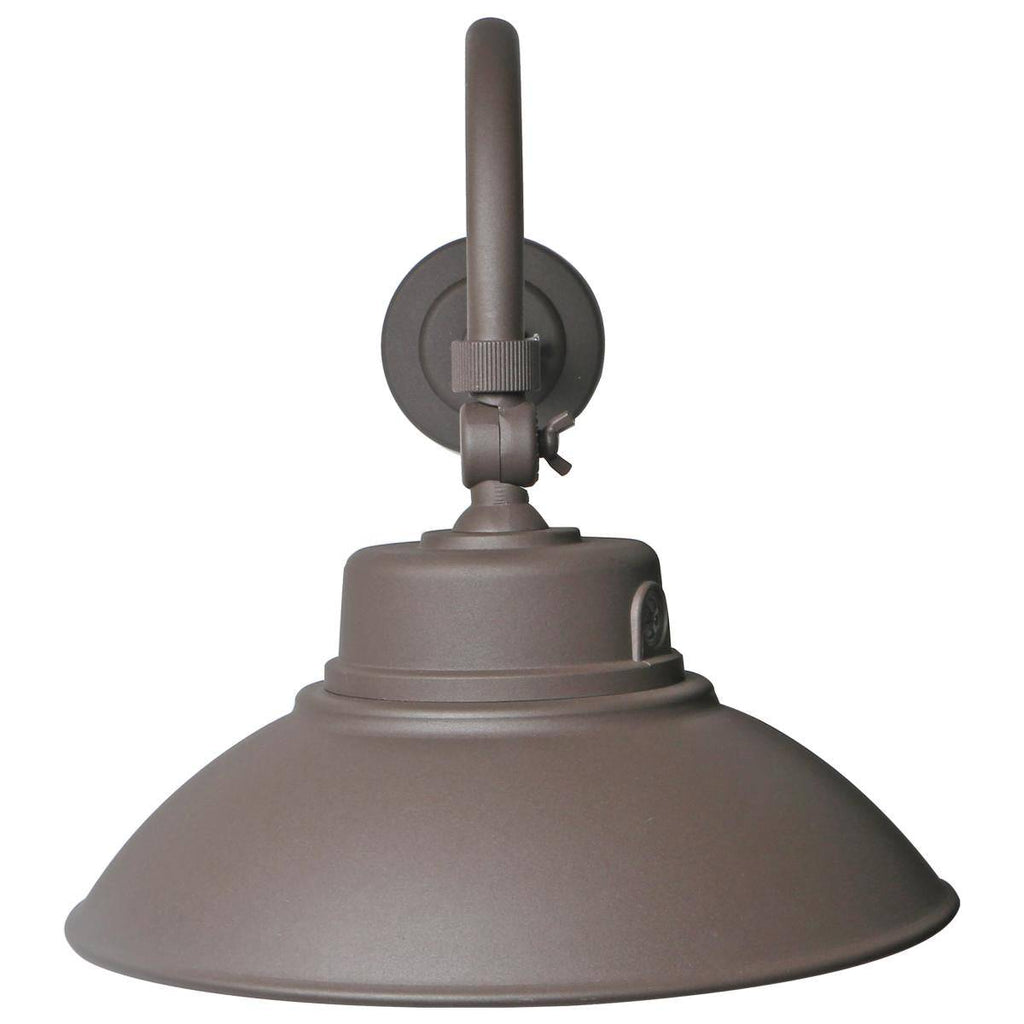

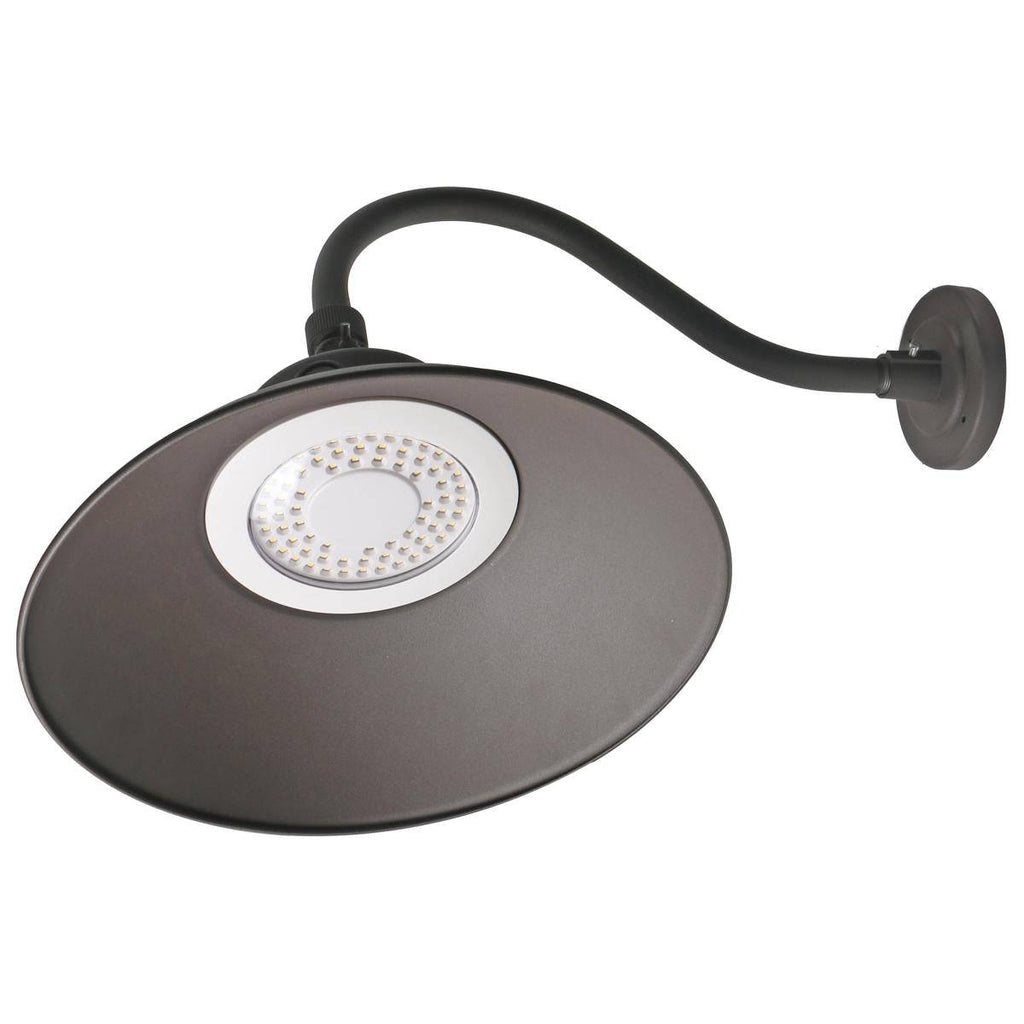

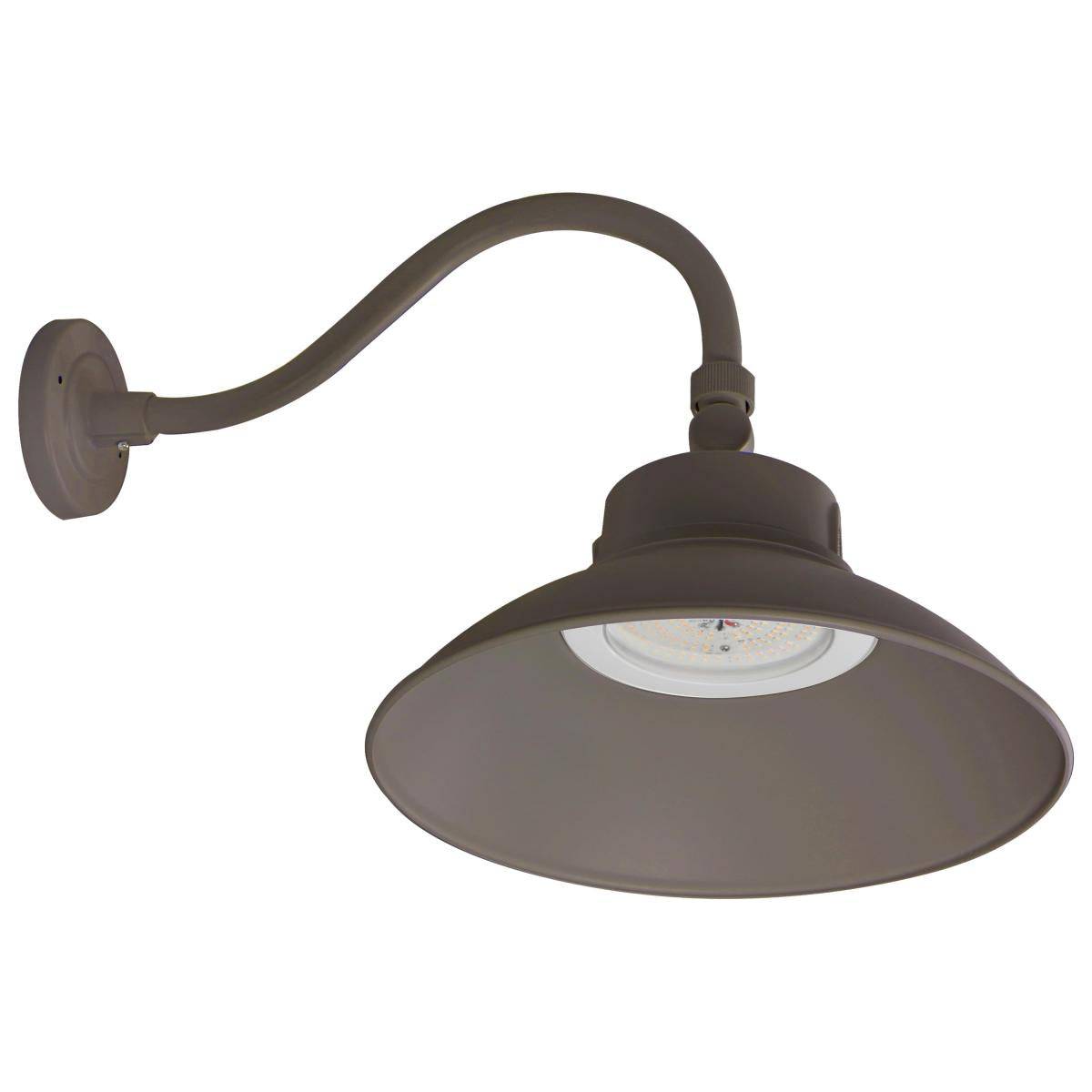

LED Gooseneck; 30W/40W/50W; CCT Selectable 3K/4K/5K; Bronze; 120-277V; With Photocell

Part : 65-662

Price:
Sale price$206.99

Please contact us for quantity discount

Description

LED Gooseneck; 30W/40W/50W; CCT Selectable 3K/4K/5K; Bronze; 120-277V; With Photocell

pdf download

The classic gooseneck fixture is one we have all seen often, but never with the technologies now available from Nuvo Lighting. Popular for so many applications, it might seem hard to make it even more versatile, but with added CCT and Wattage selectable technologies, a wet location rating and clean, efficient LED light, this fixture can't be beat. It's easy to add style and efficiency to any venue with this classic design.

  • Wattage and CCT Selectable

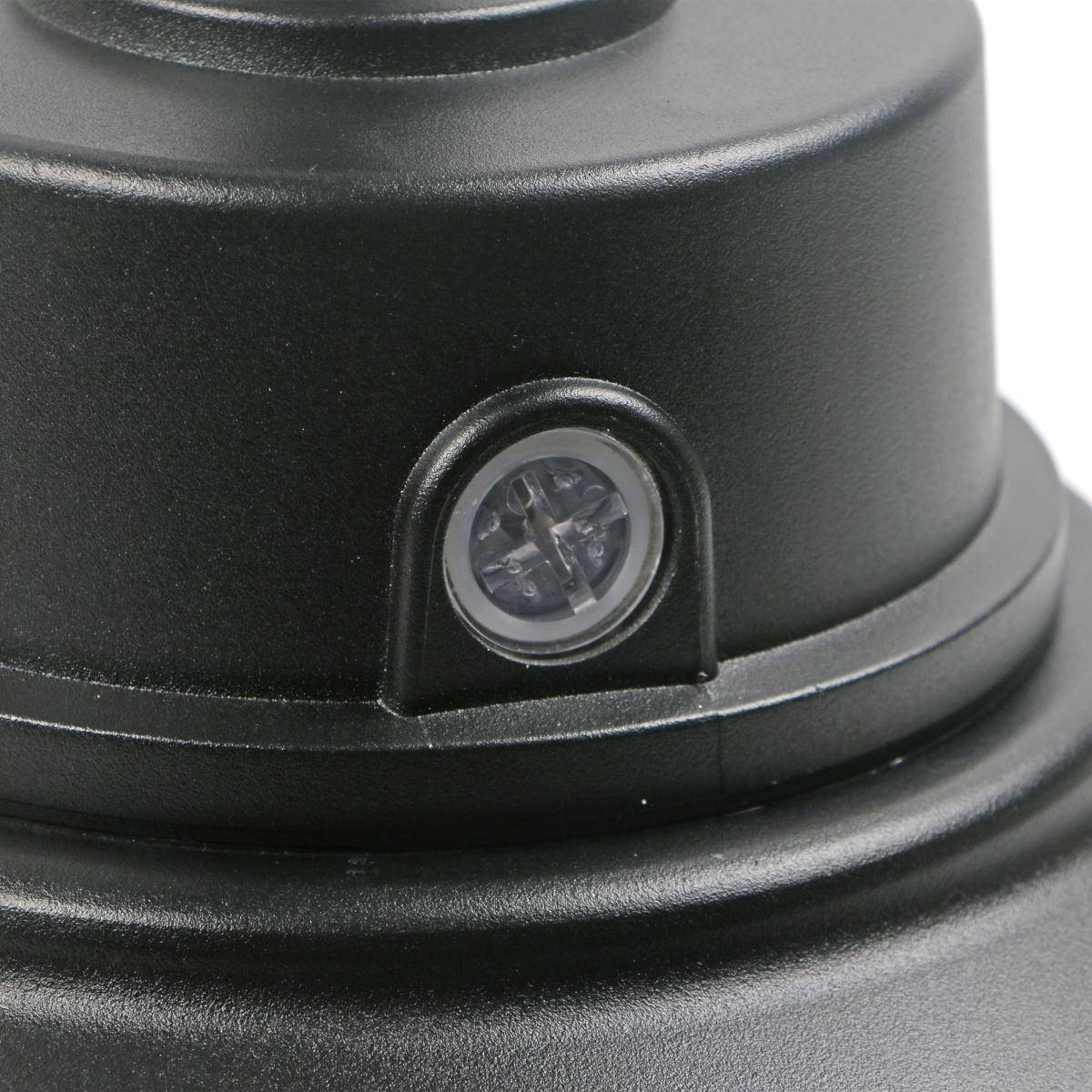

  • Integrated By-Passable Photocell
  • 0-10V Dimmable
  • 2KV Built-in Surge Protection
  • 5 Year Warranty
  • Includes 16 in. Mounting Arm; 24 in. Accessory Mounting Arm Available
  • IP65 Rated
  • Rugged UV Powder Coated Finish

Status Active
Finish Bronze
Wattage 30W/40W/50W
Style Traditional
CCT (Kelvin) 3000K/4000K/5000K
Color Temperature Warm to Cool White
Width (in.) 14.17
Height (in.) 14.96
Extension (in.) 23.23
Smart Product Info
IOT Enabled No
Specifications
Technology LED
Wattage 30W/40W/50W
CCT (Kelvin) 3000K/4000K/5000K
Color Temperature Warm to Cool White
CRI 80
Lumen Output 3300L-5500L
Rated Hours 50000
Voltage 120V-277V
Dimmable Yes-Dimmable
Dimming Note 0-10V Dimming
Photocell or Sensor Has Photocell
Weight (lb.) 4.4
Fixture Material Die-cast Aluminum
Fixture Type Gooseneck
Operating Temperature -30C (-22F) to +50C (+122F)
Dimensions
Height (in.) 14.96
Width (in.) 14.17
Extension (in.) 23.23
Back Plate or Canopy Diameter (in.) 4.65
Compliance
Safety Listing cULus - Listed; cULus - Certified; cETLus - Listed
Location Rating Wet
Energy Star No
DLC Approved Yes
DLC ID S-85IVYA
B.U.G. Rating B2-U2-G0
Dark Sky Compliant Yes
CA T20 / T24 Rationale T20 Exempt - Fixtures Not Regulated
California Prop 65
RoHS Compliant Yes
FCC Compliant Yes
SDS Sheet LED Fixture
Additional Information
Additional Information UV Powder Coated Finish
Specification Note For International Dark Sky compliance, the fixture CCT must be set to 3000K and installed in a downward facing and locked position.
Includes Includes 16" Mounting Arm
Warranty 5 Year Limited - Fixtures
Packaging
Each UPC 045923656620
Each Quantity 1
Each Length (in.) 20.28
Each Width (in.) 16.14
Each Height (in.) 10.04
Each Weight (lb.) 5.10
Each Cube (CuFt.) 1.9018
