Description
LED Black Round High Bay, PowerSET 150/120/100, OpticSET 60/90, CCT

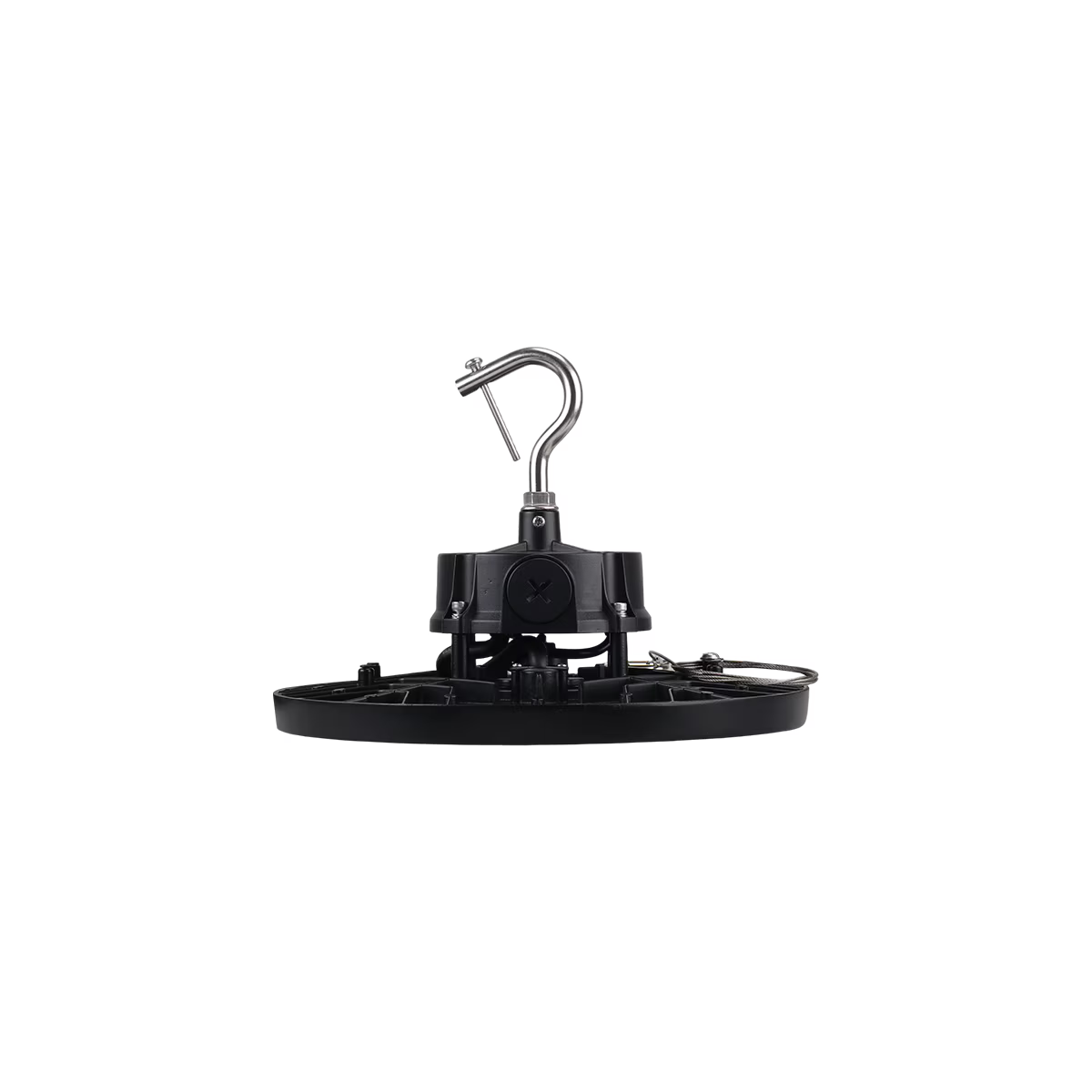

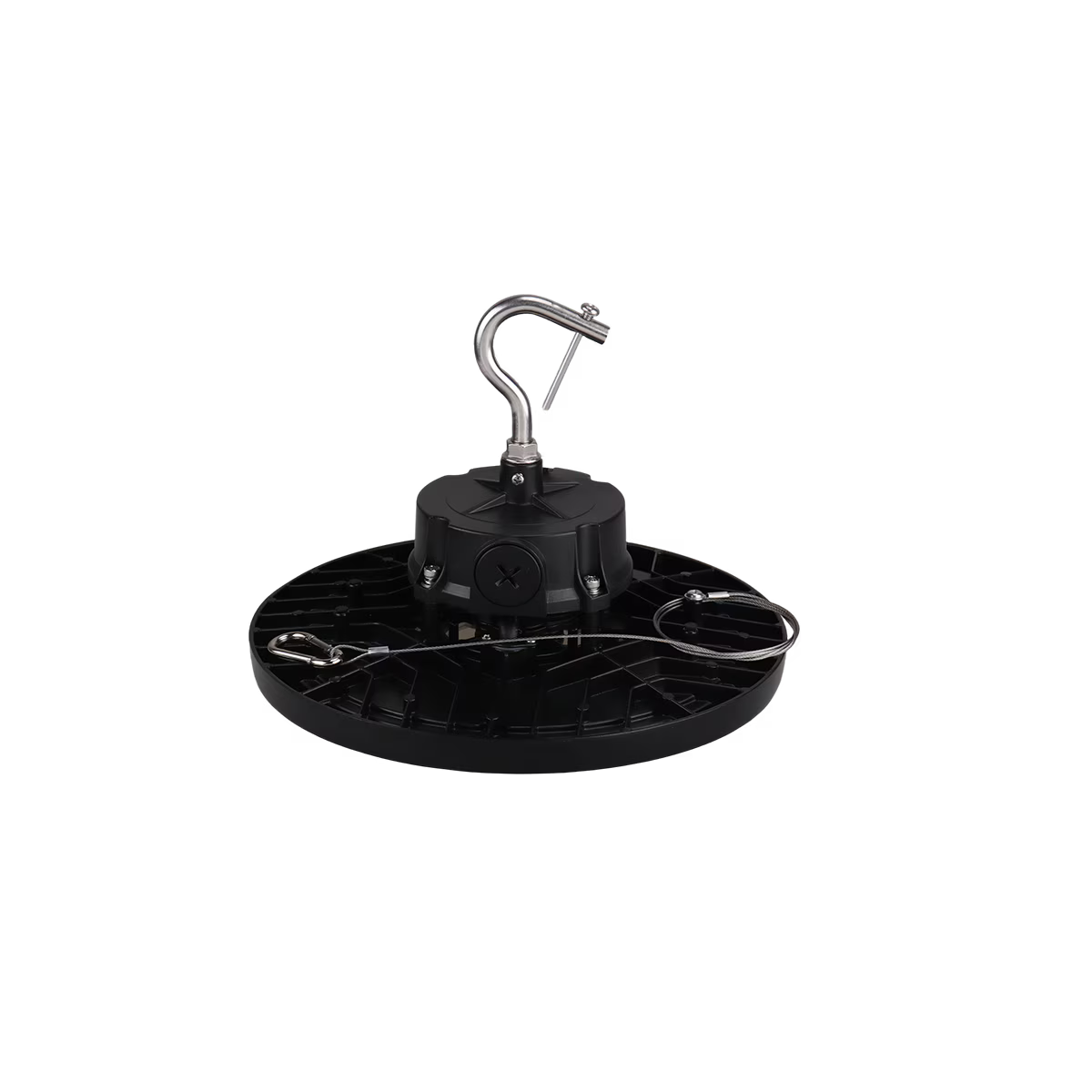

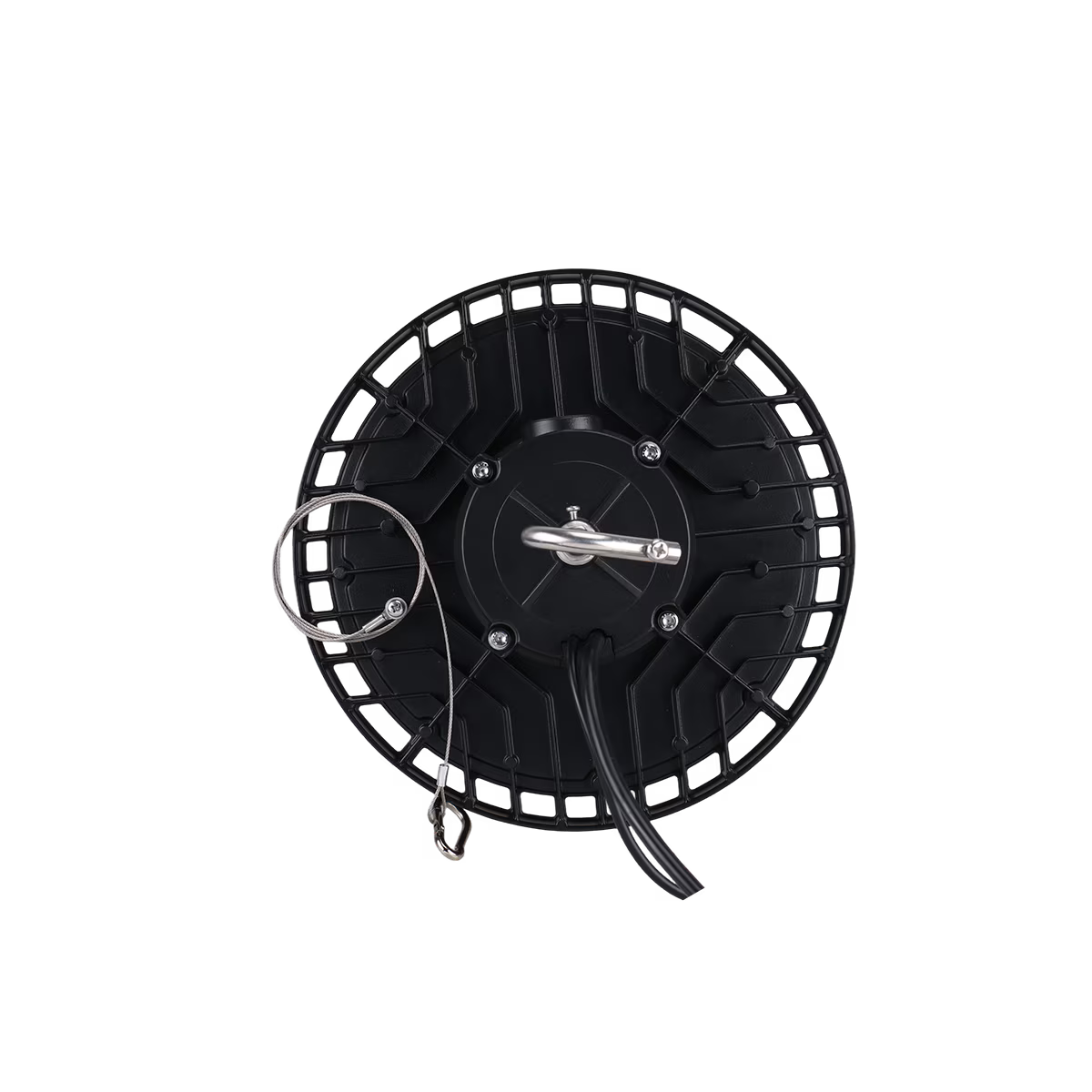

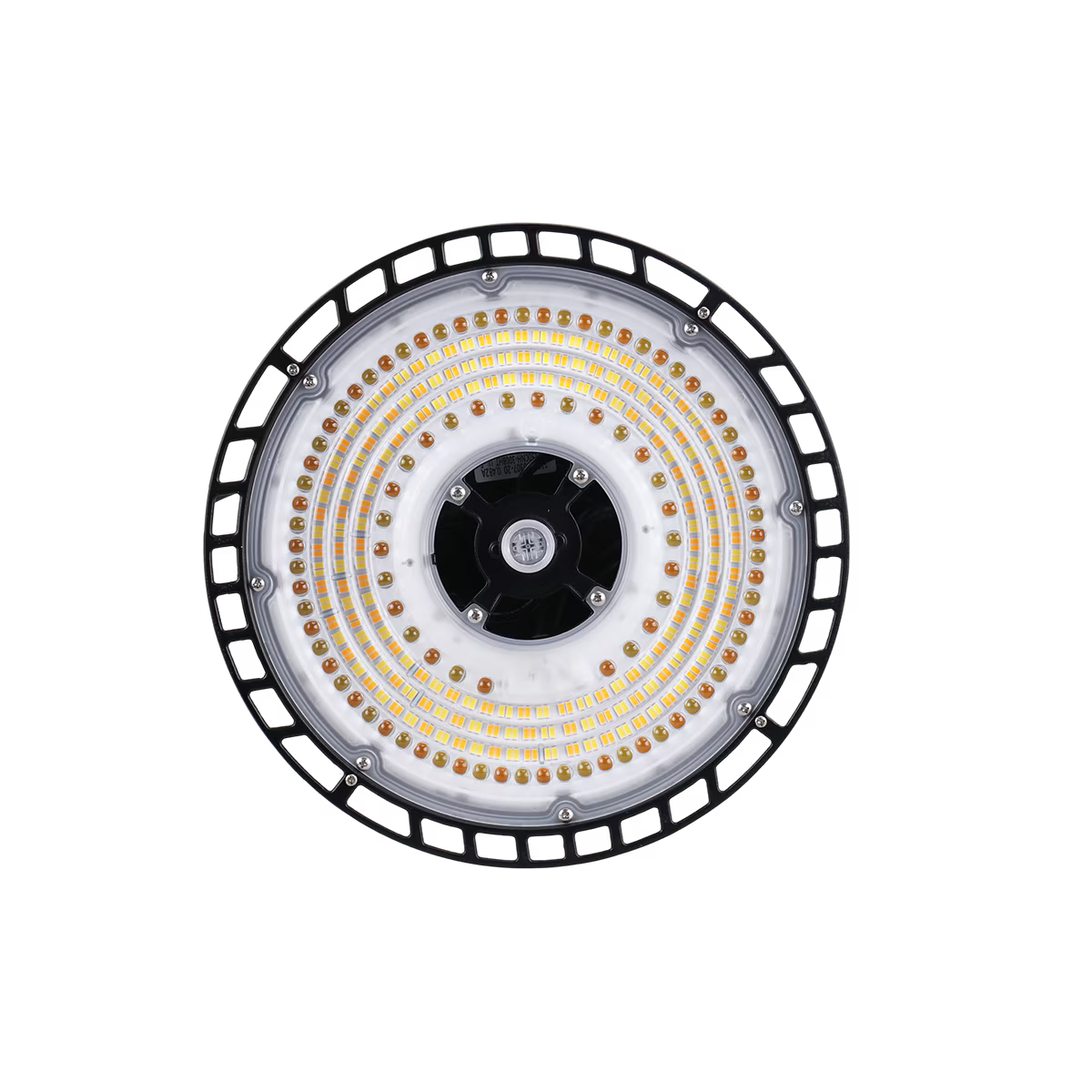

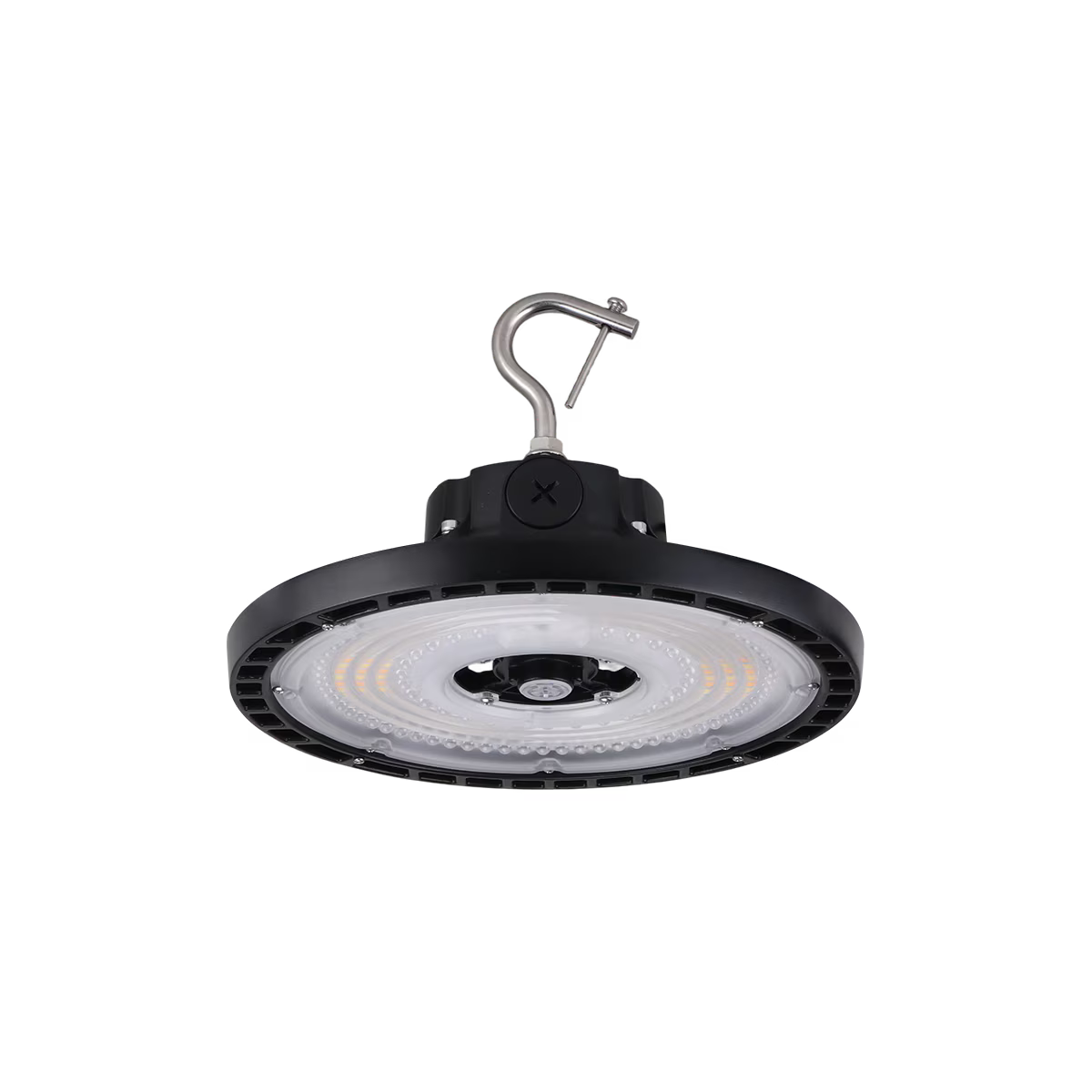

The EiKO BAYE4 Round High Bay Luminaire delivers powerful, energy-efficient LED illumination for large indoor spaces. Its compact, contractor-friendly design enables
fast installation while the durable die-cast housing ensures long-term reliability. Ideal for warehouses, gyms, and industrial facilities, it provides uniform light output with
optional 0-10V dimming for flexible lighting control.
BAYE4-PS150-OS-8FCCT-HDIM
Order Code:15862
BAYE4 Round High Bay, PowerSET 150/120/100, OpticSET 60/90, 80+CRI, ColorSET 35/40/50K, 120-347V 0-10 Dimming
| Product Specifications | |
|---|---|
| Input Voltage | 120-347VAC |
| Lumens (lm) | 22,500 / 18,600 / 16,000 lm |
| Wattage | 150W / 120W / 100W |
| CCT | 3500K / 4000K / 5000K |
| CRI | 80+ |
| Dimming | 0-10V |
| Replacement For/Equivalent | Up to 400W HID |
| Energy Star | No |
| IP Rating | IP65 |
| UL Location Rating | Wet |
| Other Ratings | IK8; NEMA 4X; NSF |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| UL / ETL | Yes - UL |
| Dimensions (L x W x H) | Ø: 10.83in x H:7.72in |
| Lens Material New | Polycarbonate (PC) |
| Operating Temp Range (°F/°C) | -40F to 122F (-40C to 50C) |
| Surge Protection (kV) | 6kV |
| Warranty | 5 Years |
| Brand | EiKO |
