Description

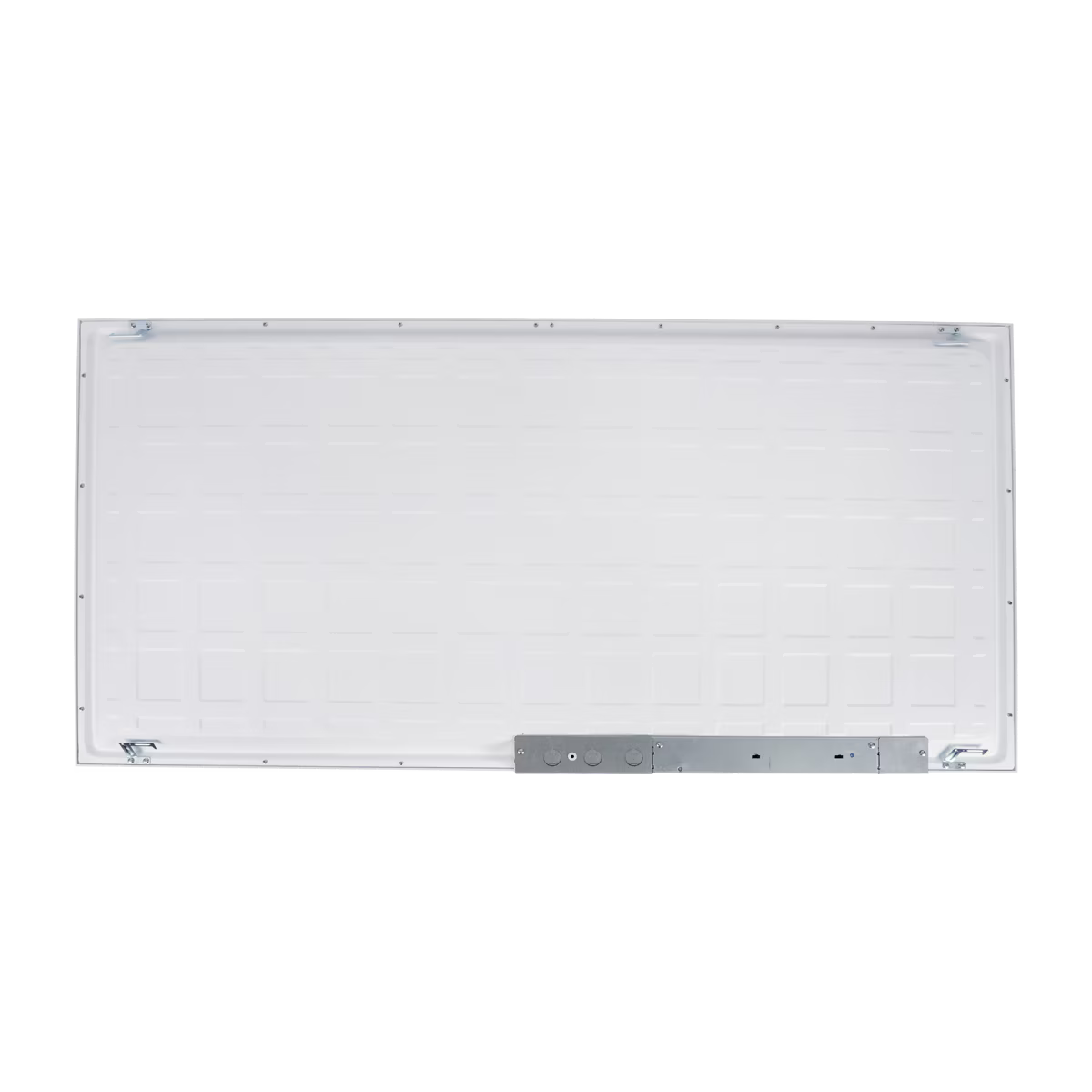

LED Backlit Panel, 2x4, 50/40/30W- 3500/4000/5000K, 120-347V, 0-10V Dimming
BP1-24PS50P-FCCT-H
Order Code:13181
EiKO’s BP1 Panels deliver precision light uniformity in an ultra-slim, lightweight form factor. Standard PowerSET and ColorSET technology with wide 120-347VAC input
provides distributors and contractors with unmatched flexibility for virtually any commercial installation, while high efficacy operation ensures visual comfort and
maximum energy efficiency.
| Product Specifications | |
|---|---|
| Input Voltage | 120-347VAC |
| Lumens (lm) | 6,250 / 5,000 / 3,750 lm |
| Wattage | 50W / 40W / 30W |
| Efficacy (lm/W) | 125 |
| CCT | 3000K / 4000K / 5000K |
| CRI | 80+ |
| Dimming | 0-10V |
| Nominal Size | 2x4 |
| Replacement For/Equivalent | 4 x 32W 4ft T8 |
| DLC Version | DLC 5.1 Premium |
| TITLE 20 | Exempt |
| Energy Star | No |
| IP Rating | IP20 |
| UL Location Rating | Damp |
| RoHS Compliant | No |
| FCC Compliant | No |
| Dimensions (L x W x H) | L: 47 3/4" (1212 mm), W: 23 3/4" (603 mm), H: 1 9/16" (40 mm) |
| Color | White |
| Lens Material New | Acrylic (PMMA) |
| Operating Temp Range (°F/°C) | -4F to 113F (-20C to 45C) |
| Surge Protection (kV) | 2kV |
| Auxiliary Output | No |
| Brand | EiKO |
