Description

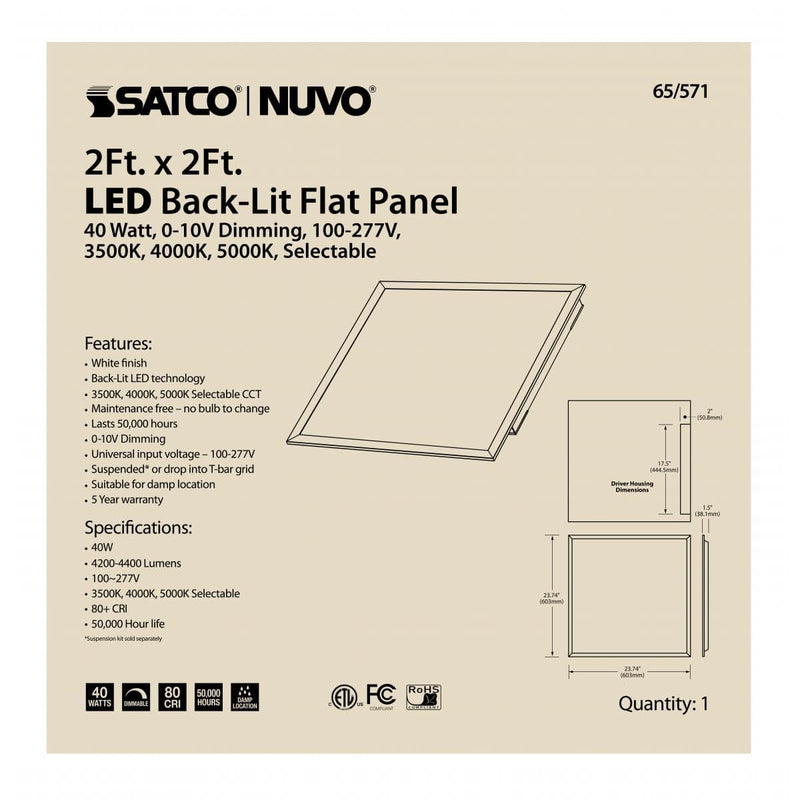

LED Backlit Flat Panel; 40 Watt; 2 ft. x 2 ft.; Selectable CCT; 100-277 Volt
General
| Status | Active |
| Fixture Type | Backlit Flat Panel |
| Finish | White |
| Wattage | 40W |
| Lumen Output | 4400L-4600L |
| CCT (Kelvin) | 3500K/4000K/5000K |
| IP Rating | IP20 |
| Indoor or Outdoor Fixture | Indoor |
Specifications
| Technology | LED |
| Wattage | 40W |
| Lumen Output | 4400L-4600L |
| CCT (Kelvin) | 3500K/4000K/5000K |
| Color Temperature | Warm to Cool White |
| CRI | 80+ |
| Voltage | 100V-277V |
| Beam Angle | 120 |
| Rated Hours | 50000 |
| Operating Temperature | -17C (+1.4F) to a maximum of +45C (+113F) |
| Dimmable | Yes-Dimmable |
| Dimming Note | 0-10V Dimming Only; Dimming range from 100 to less than or equal to 20 percent depending on dimmer control |
| Photocell | No Photocell |
| Lens Material | Poly methyl methacrylate (PMMA) |
| Weight (lb.) | 4.85 |
| IP Rating | IP20 |
| Material | Aluminum / Steel |
Dimensions
| Height (in.) | 1.50 |
| Width (in.) | 23.75 |
| Length (in.) | 23.75 |
Compliance
| Safety Listing | cETLus - Listed |
| Location Rating | Damp |
| UL Application | Ceiling |
| Energy Star | No |
| DLC Approved | Yes |
