Description

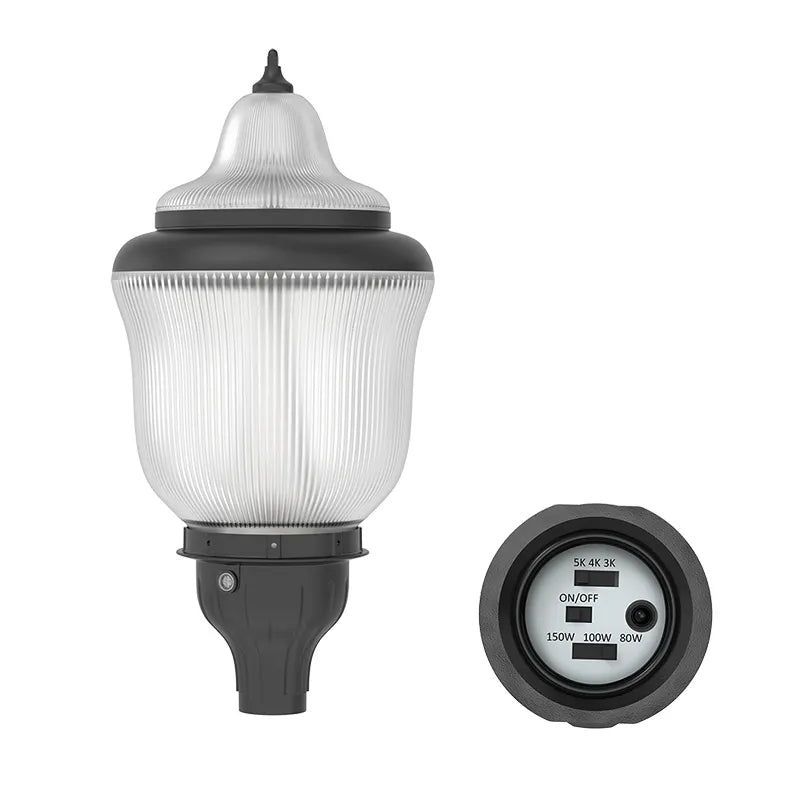

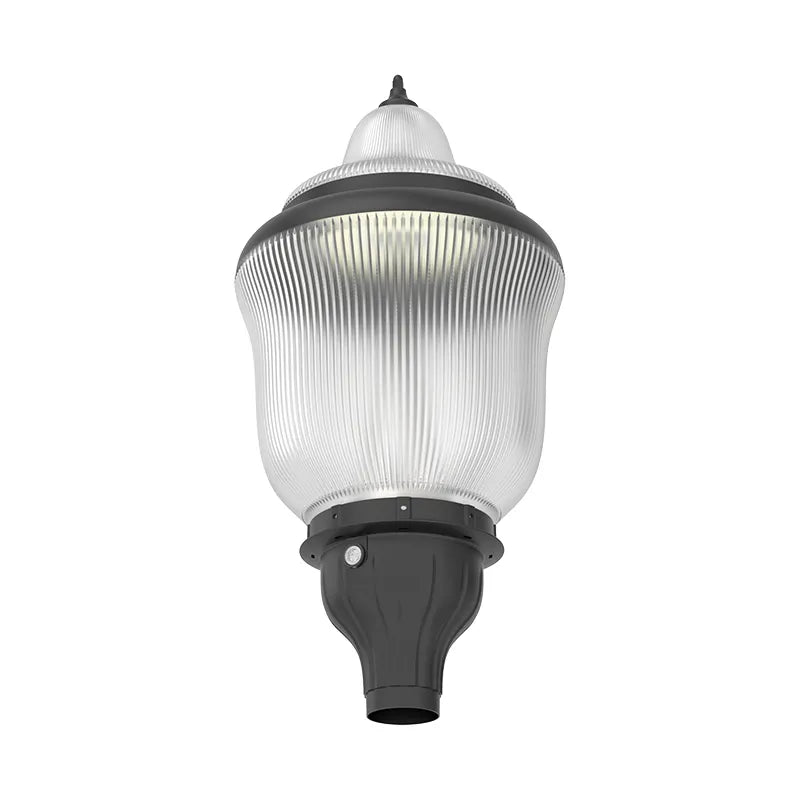

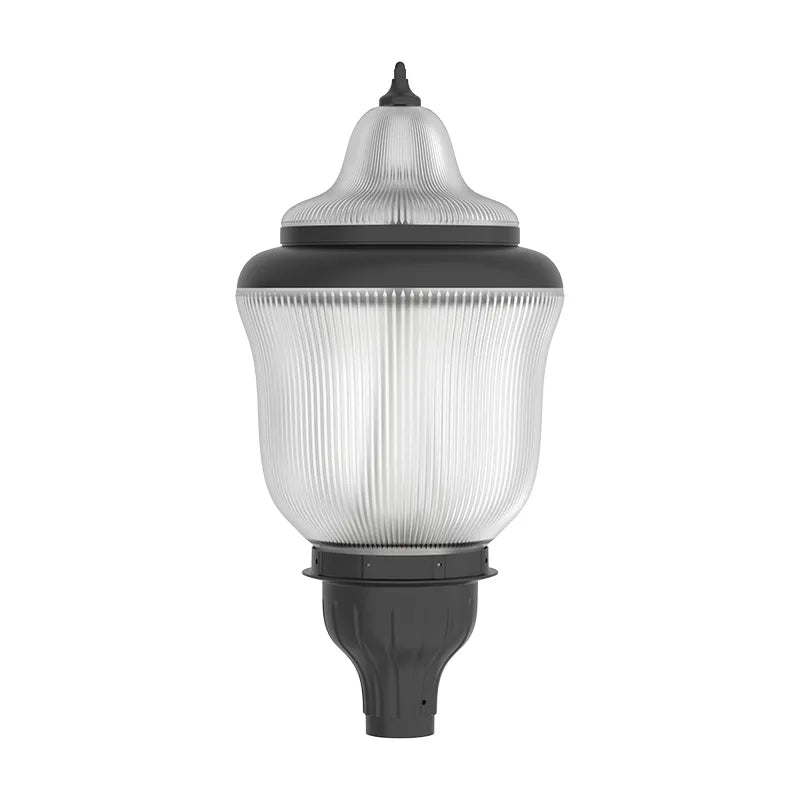

LED Acorn Area Light in Black, 80W/100W/150W, CCT- with Photoeye, Fits on 3” Pipes/Pole

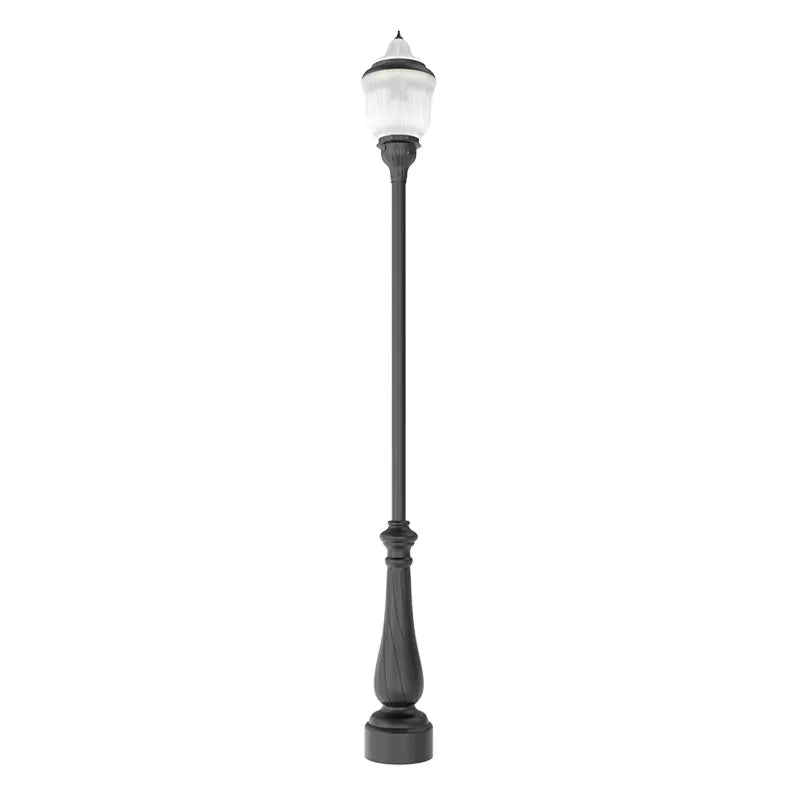

LED Acorn Area Lights are decorative outdoor fixtures designed for pedestrian and area lighting. They feature a classic acorn-style globe combined with modern LED technology for high efficiency and long life. The acorn style complements historic or traditional architecture while delivering the performance needed for modern safety and illumination standards. If needed, these fixtures can be paired with Westgate decorative poles (D1 Series) or compatible poles from other manufacturers to complete a full post-top lighting solution.
Technical Specs
- :: Voltage: 100-277V AC 50/60Hz
- :: Wattage: 80W/100W/150W
- :: Power Factor: 0.9
- :: THD<20%
- :: Efficacy: 135LM/W
- :: DC Button Photocell with ON/OFF Switch Included
- :: Housing: ADC12 diecast aluminum alloy with outdoorpowder coating
- :: EPA Rating:GPA-B32: 2.23 ft²GPA-A37: 3.12 ft²
- :: UP/Down Light Control Switch
- :: FITS ON 3” OD PIPES/POLES
- :: Lens: High light transmittance polycarbonate (PC), antiUV
- :: Waterproof sealing with weather-resistant silicone gaskets
- :: Operating temperature: -40°C to 40°C (-40°F to 104°F)
- :: IP65 rated, suitable for wet locations
- :: 5-year warranty
- :: Multi CCT and Power: Selectable Switch Inside Of The Fixture
- :: Lens: High Light Transmittance PC, anti-UV and FireResistant
- :: The uplight continuously consumes 10W. When the uplight is turned off, the power is redirected to the downlight
- :: LED: Lumileds 2835
- :: Total Lumens: 20250LM Max.
- :: Color Temperature: 3000K/4000K/5000K
- :: Color Rendering index: >70
- :: Beam Angle: Type V 360°
- :: Lifespan: 50000
Applications
- :: Parks and recreational areas
- :: Pedestrian walkways and trails
- :: Downtown streetscapes and historic districts
- :: Plazas and courtyards
- :: Campus and municipal grounds
- :: Outdoor retail and lifestyle centers
- :: Parking lot perimeters
