Description

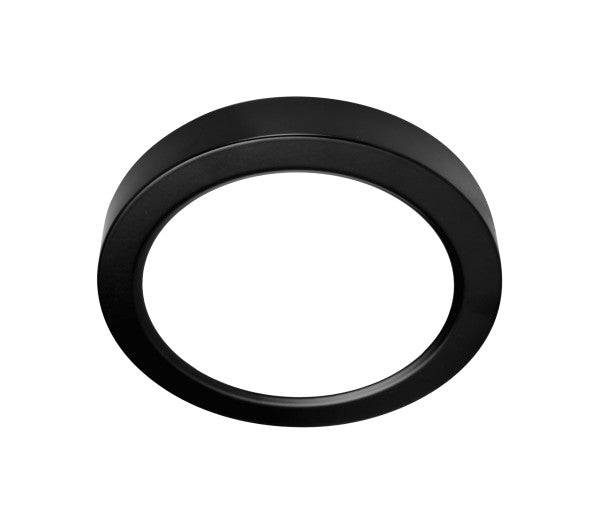

LED 5-inch Black Round Selectable LED Surface Mount Downlight
Features
-
Includes DSE fixture with mounting hardware and installation guide
-
Selectable Color Temperatures: 2700K, 3000K, 3500K, 4000K, and 5000K
-
Incredible color accuracy at 90 CRI with an R9 value exceeding 53
-
Produces over 615 Lumens at 10.4-Watts (60W equivalent)
-
Dimmable to less than 5% with standard LED (TRIAC or ELV) dimmers
-
Easy to install, 120VAC driverless design helps minimize installation height
-
Installs directly into most standard 4-inch junction boxes
-
Energy Star rated and Wet-Location listed (ETL 1598)
-
Compliant with California Title 24 (JA8) and RoHS regulations
-
Protected by NICOR’s 5-year limited warranty
SPECS

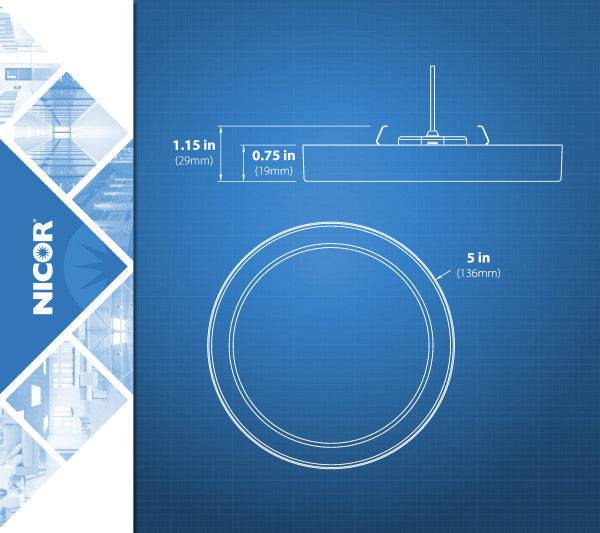

Size (in.)
5
Product Color
Black
Finish
Matte
Light Source
LED
Wattage
10.4
Wattage Equivalent
60
Voltage
120VAC
Lumen Output
615 (2700K)
627 (3000K)
633 (3500K)
646 (4000K)
641 (5000K)
Lumens Per Watt
59.1 (2700K)
60.3 (3000K)
60.9 (3500K)
62.1 (4000K)
61.6 (5000K)
Color Temperature (CCT)
5CCT Selectable
CRI
94
R9 Value
63
Dimmable?
Yes
Dimming Type
TRIAC
ELV
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
Listings/Certifications
ETL Intertek Listed
cETL Intertek Listed
Energy Star
Title 24
JA8 Compliant
RoHS Compliant
NFPA 70 Compliant
NEC 410.16 (A)(3)
NEC 410.16 (C)(5)
FCC Class B
Wet-Location (cETLus 1598)
