Description

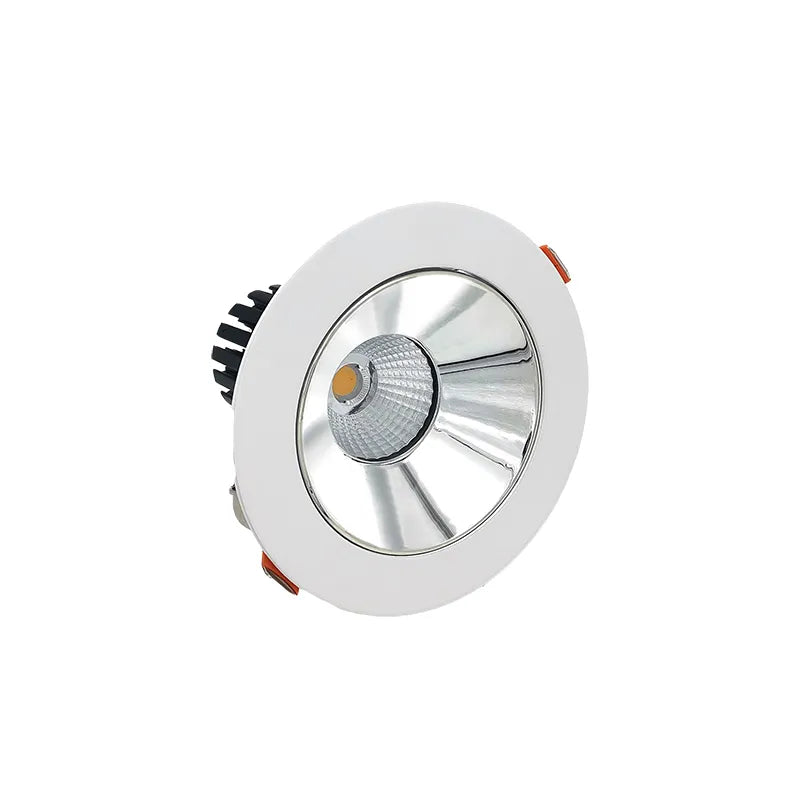

LED 4" Architectural Canless Open Trim with Clear Reflector, 10W, CCT
Technical Specs
- :: Voltage: 120VAC
- :: Wattage: 10W
- :: Power Factor: >0.90
- :: Efficacy: Up to 70 LM/W
- :: Up to 9 AWG18 Wires
- :: Die-Cast Aluminum With White Powder Coat Finish
- :: Clear Glass Lens
- :: Junction Box Rated Up to 9 AWG18 Wires
- :: Type IC Rated: Approved for Direct Contact With Insulation
- :: Operating Temperature: 104°F
- :: Air-Tight And Type IC Rated: No Housing Required
- :: Damp Location Approved
- :: Multi CCT (Selectable Switch on the Back of the driver)
- :: Dimming: Dimmable Down to 10% Using Standard TRIAC LED Dimmer
- :: Total Lumens: 700LM
- :: Color Temperature: 2700K/3000K/3500K/4000K/5000K
- :: Color Rendering Index: >90
- :: Beam Angle: 24°
- :: Lifespan: 50,000 Hrs.
Applications
- :: Ideal for new as well as old residential and commercial constructions
1/3”(H) X 3”(D)
Box Dimensions:
5-1/4” x 1-5/8” x 1-1/8”
Junction Area Dimensions:
2-1/16” x 1-5/8” x 1-1/8”
