Description
LED 2X2 Single Basket LED Troffer Fixture; Wattage Selectable; CCT Selectable; Lumens Selectable; 100-277V

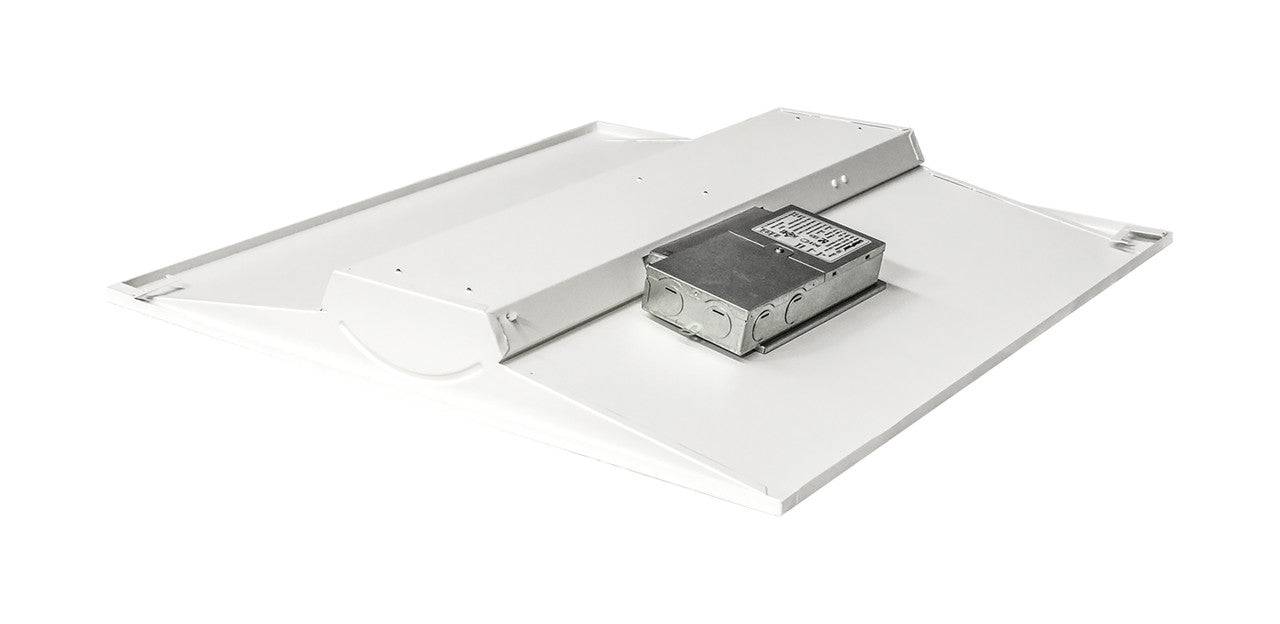

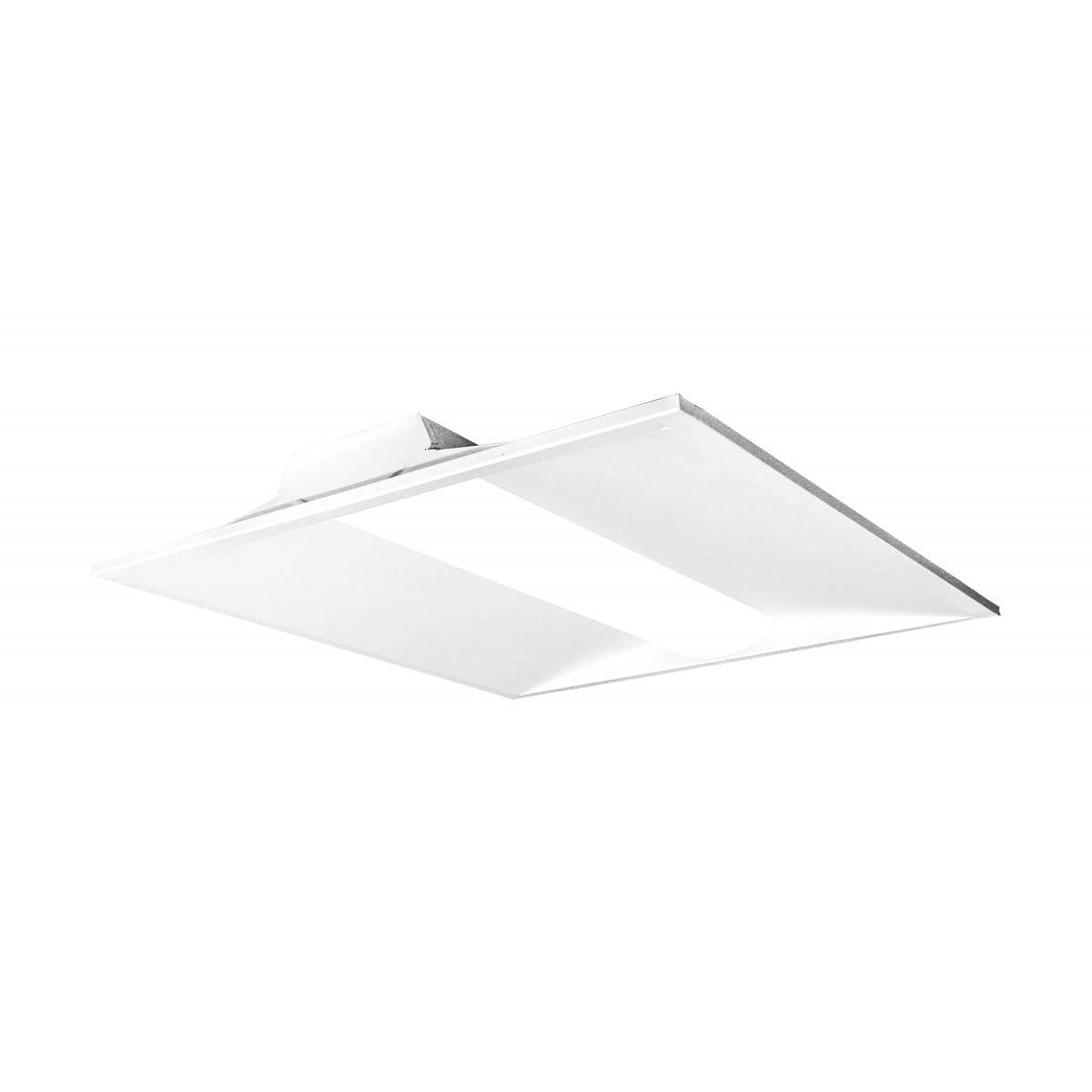

A two foot by two foot single basket troffer which feature selectable wattage and color temperature. The troffer features an acrylic linear prismatic lens which allows for broad, even light distribution. The driver allows for flicker-free illumination, and the troffer drops into a T-bar grid.
- Volumetric design
- Watts: 30W - 35W - 40W
- Lumens: 3300L - 4400L
- Color temperature: 3500K/4000K/5000K
- Operating temperature: -20C (-4F) to a maximum of 40C (104F
General
| Status | Active |
| Fixture Type | Troffer |
| Finish | White |
| Wattage | 30W/35W/40W |
| Lumen Output | 3300L-4400L |
| CCT (Kelvin) | 3500K/4000K/5000K |
| IP Rating | IP20 |
| Indoor or Outdoor Fixture | Indoor |
| Panel Size | 2x2 |
Specifications
| Technology | LED |
| Wattage | 30W/35W/40W |
| Lumen Output | 3300L-4400L |
| CCT (Kelvin) | 3500K/4000K/5000K |
| Color Temperature | Warm to Cool White |
| CRI | 80 |
| Voltage | 100V-277V |
| Beam Angle | 120 |
| Rated Hours | 50000 |
| Operating Temperature | -20C (-4F) to +40C (+104F) |
| Dimmable | Yes-Dimmable |
| Dimming Note | 0-10V Dimming Only |
| Lens Material | Poly methyl methacrylate (PMMA) |
| Surge Protection | Built-in surge protection - 2KV |
| Weight (lb.) | 6.06 |
| IP Rating | IP20 |
| Material | Steel |
Dimensions
| Height (in.) | 2.61 |
| Width (in.) | 23.74 |
| Length (in.) | 23.74 |
Compliance
| Safety Listing | cULus - Listed |
| Location Rating | Damp |
| Energy Star | No |
| DLC Approved | Yes |
| DLC ID | PLHP5OXLTQ43 |
| IC Rated | Yes |
| CA T20 / T24 Rationale | T20 Exempt - Fixtures Not Regulated |
| California Prop 65 |
Lead
|
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| Flicker Free | Yes |
| SDS Sheet | LED Fixture |
Additional Information
| Warranty | 5 Year Limited - Fixtures |
Packaging
| Each UPC | 045923656088 |
| Each Quantity | 1 |
| Each Length (in.) | 3.75 |
| Each Width (in.) | 25.63 |
| Each Height (in.) | 25.67 |
| Each Weight (lb.) | 7.94 |
