Description

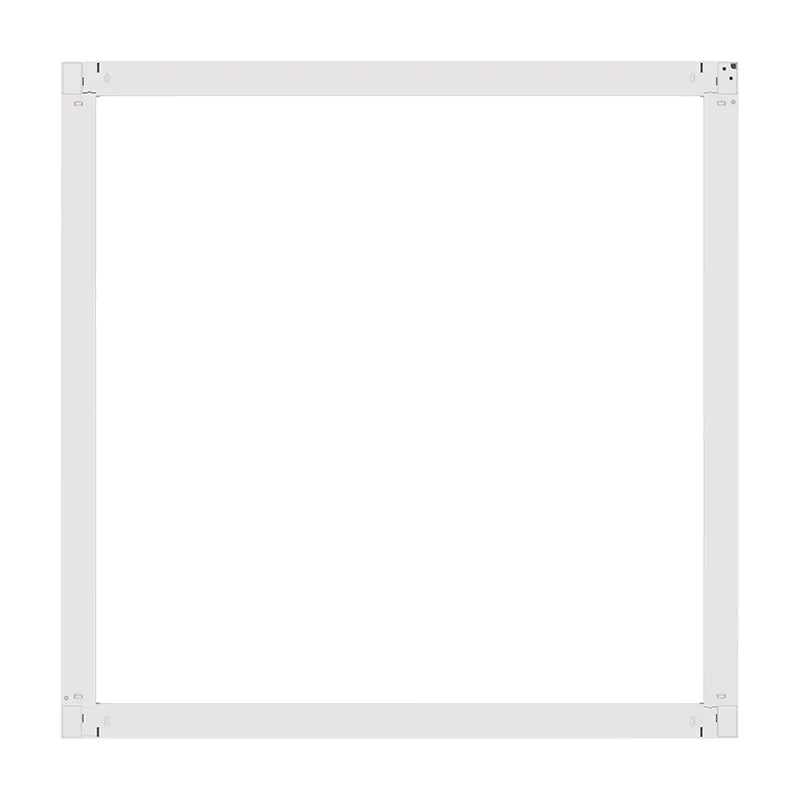

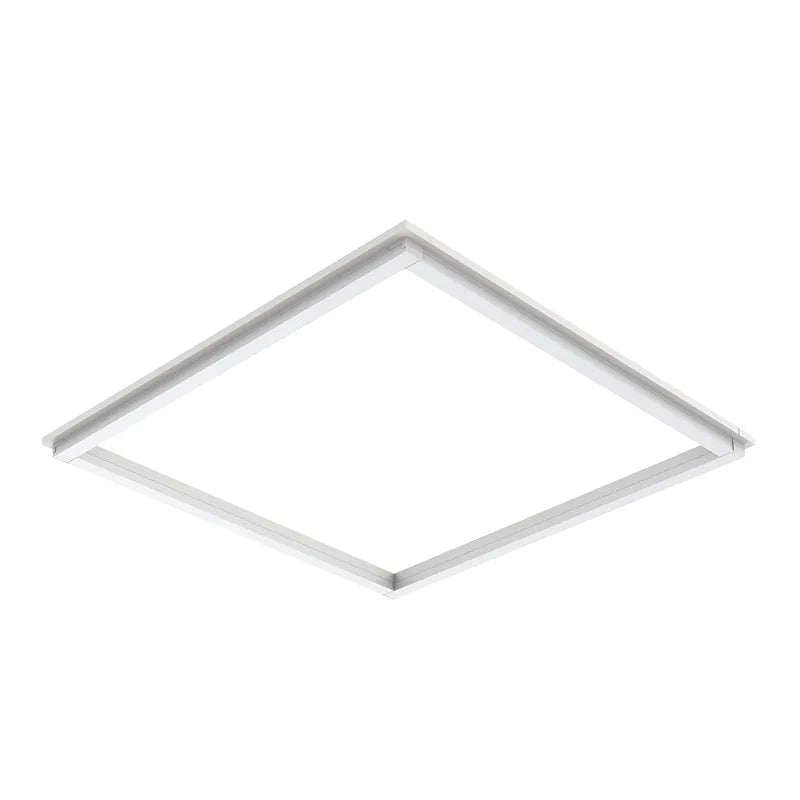

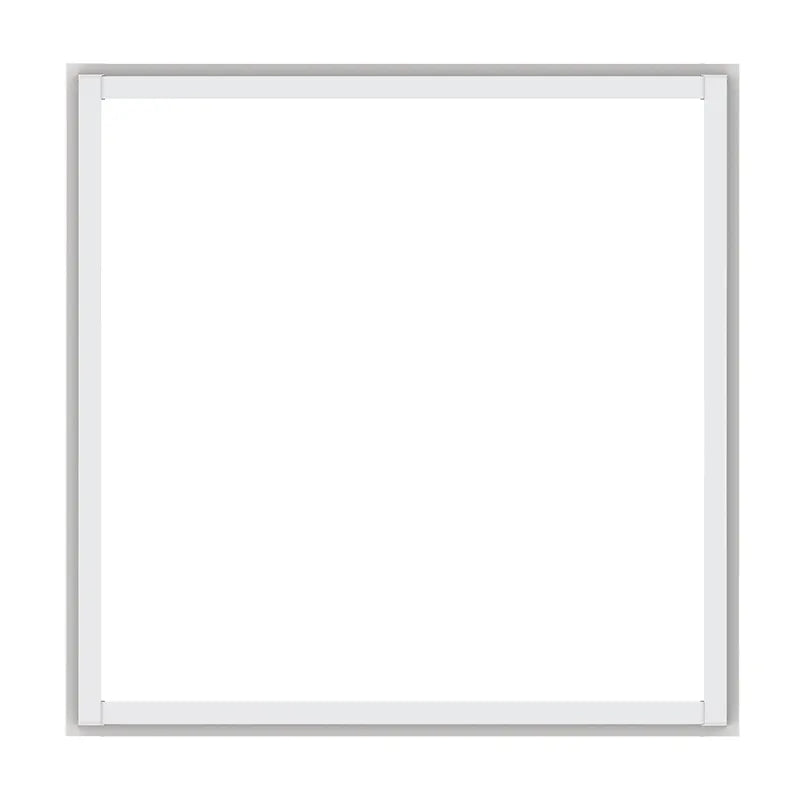

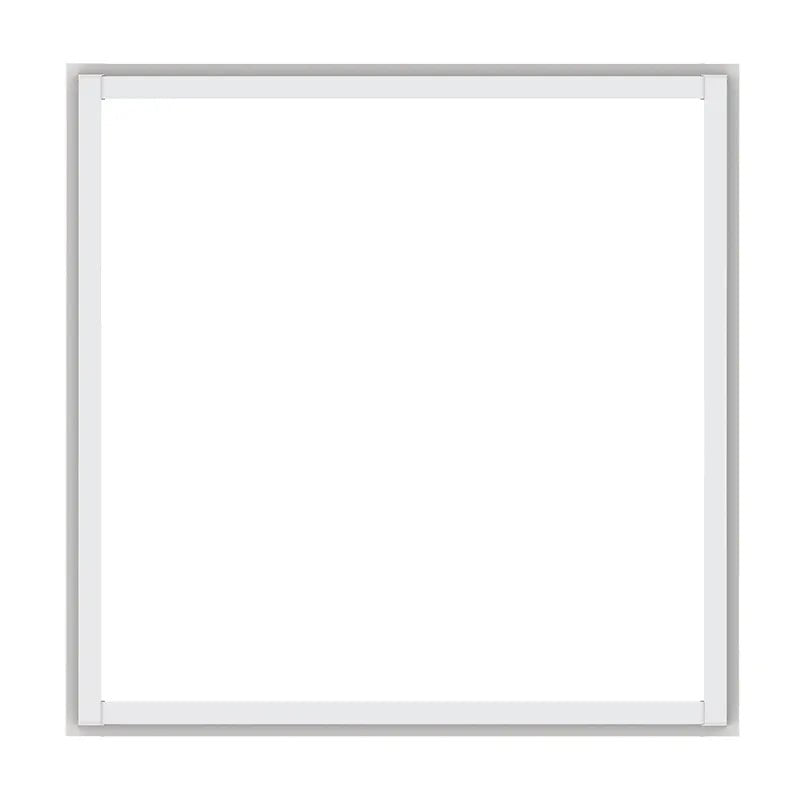

LED 2X2 4-Piece Frame Light with Grid-Mount Driver Box, 27W/35W/40W, CCT
The LED Frame Light luminaire is a new design that creates innovative and outstanding lighting performance available to replace the 2x2 LED panel. It has a modern design and is easy to install. Ideal for new construction and remodel/replacement of fluorescent troffers or LED panels in commercial office spaces, schools, healthcare facilities, and retail merchandising areas. Compact ultra-thin appearance, simple installation, and outstanding performance. Assembling type in an individual package, easy to take away.
Technical Specs
- :: Voltage: 120-277V
- :: Power Factor: >0.92
- :: Wattage: 27W/35W/40W
- :: Efficacy: 150 LPW
- :: Extruded Aluminum with White Painting
- :: Surge Protector
- :: Maximum Ambient Temperature: -22°F to +104°F
- :: Rated life: 50,000 hrs
- :: Driver/Junction Box is Separate and Connects to the Fixture with a 3Ft. Dongle.
- :: Driver/Junction Box Installs On Adjacent Grid, On Top,Using Your Choice Of T-bar Bracket or Westgate T-barBracket Model (ELB-TBAR1)
- :: IP20 Indoor Use Only
- :: Performance Lens Assembly Delivers Unique Beam Angles and Reduces Glare
- :: Dimmable: 120-277V 0~10V Driver for Continuous Dimming
- :: Total Lumens: 3960LM Max.
- :: Driver Disconnect Provided Where Required toComply with US and Canadian codes
- :: Color Temperatures: 3500K/4000K/5000K
- :: Multi CCT & Multi Power (Selectable Switch in DriverBox)
- :: Color Rendering Index: CRI ≥ 80
Applications
- :: Retail, Schools, Offices, Healthcare, Conference rooms, Hospitality, Corridors, Reception areas, Foyer, Library
