Description

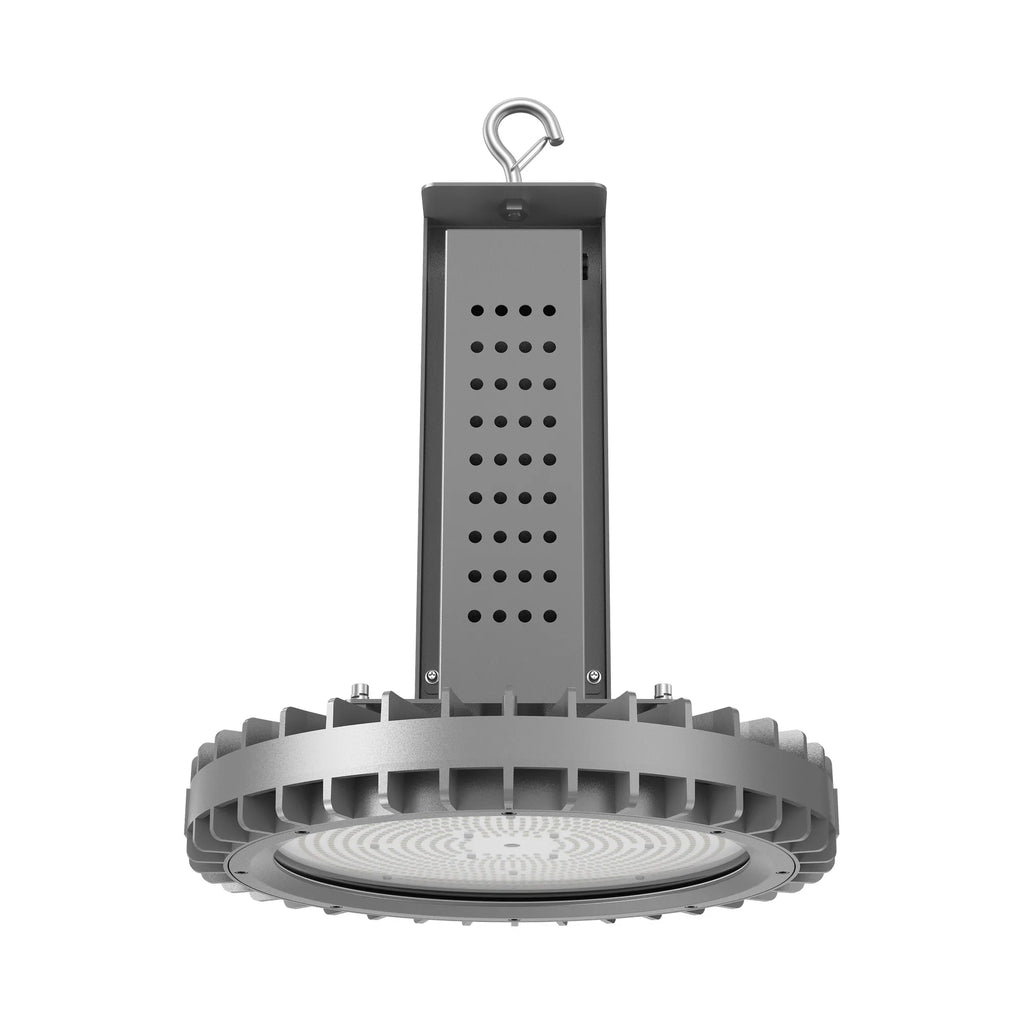

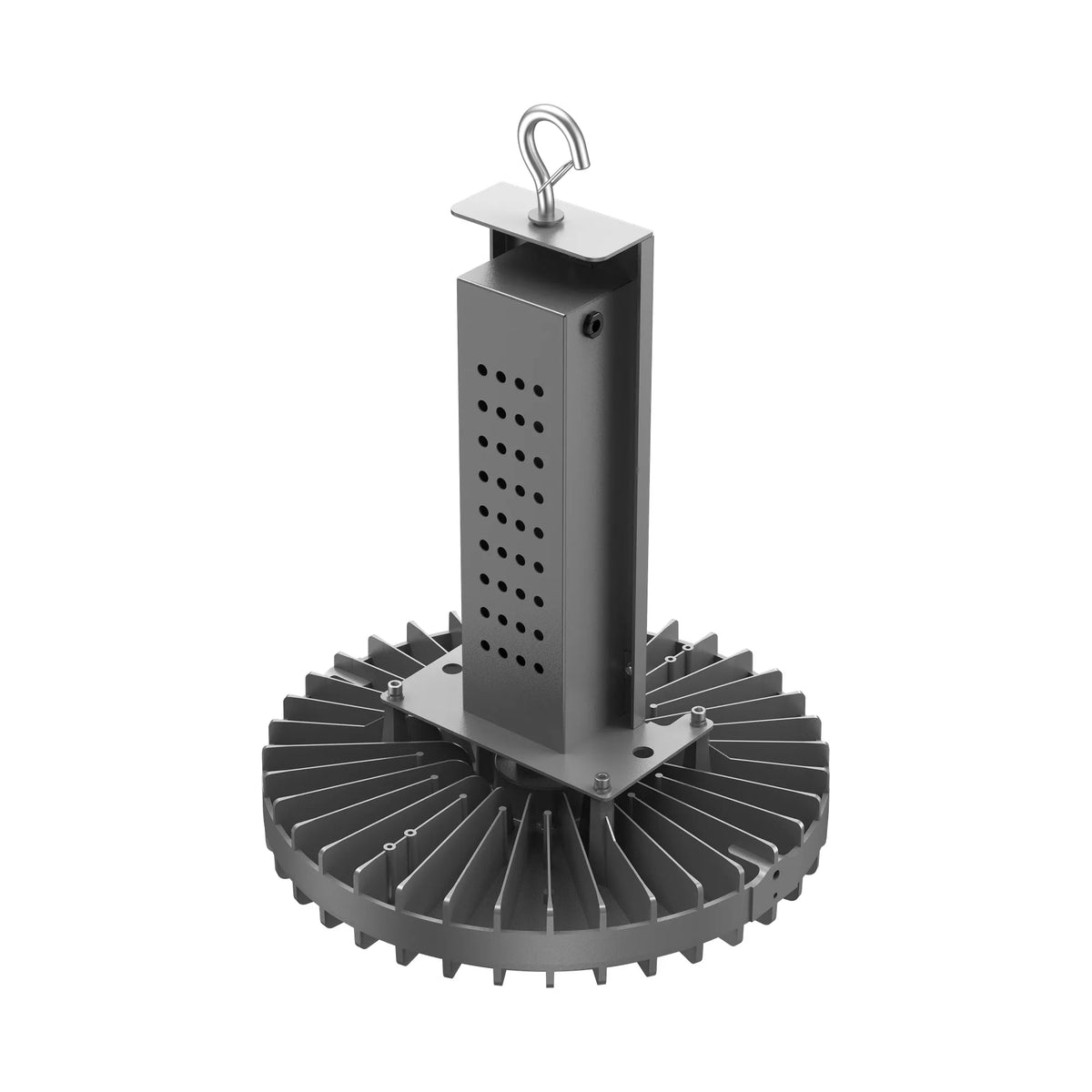

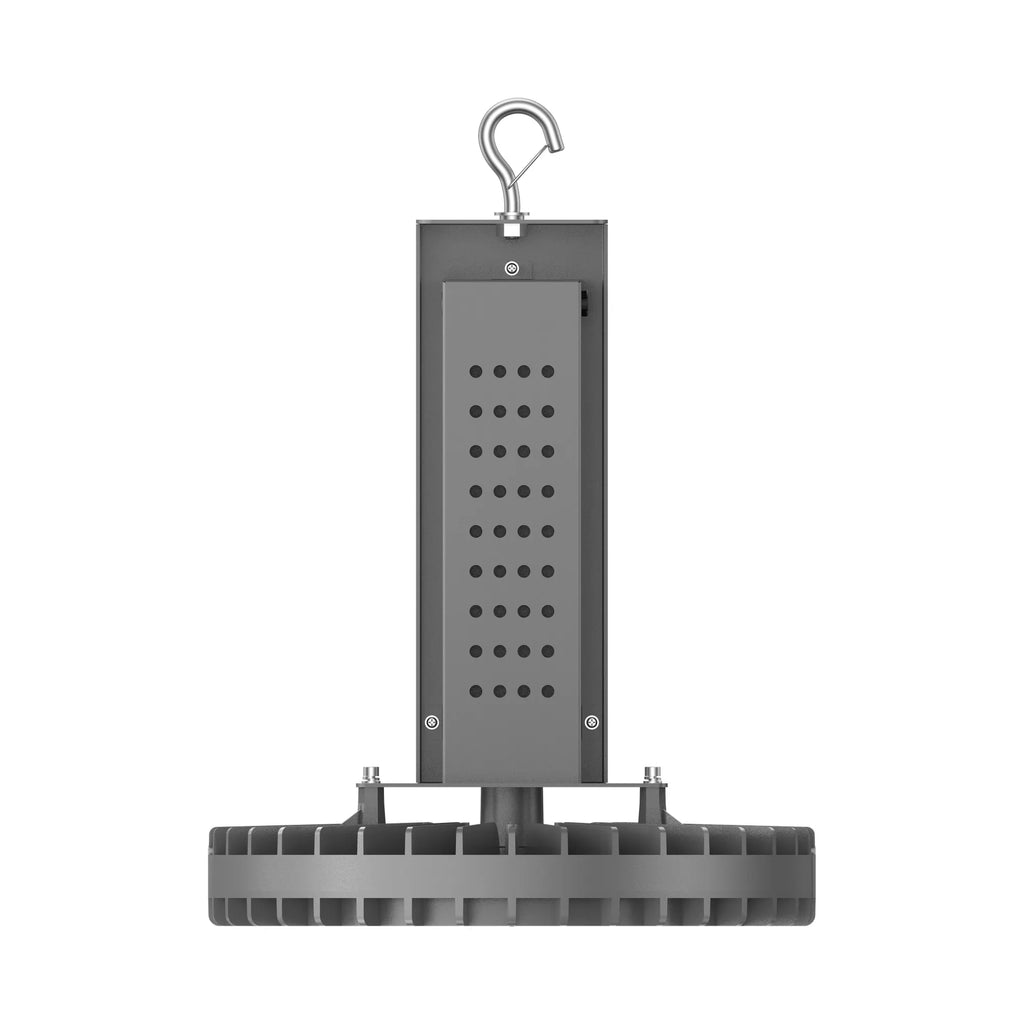

LED 200W High-Temperature IP66 LED High Bay- 480V- 32,000 Lumens- 5000K
Technical Specs
- :: Voltage: 277-480VAC, 50/60 Hz (480V configuration)
- :: Wattage: 200W nominal
- :: Lumen output: 32,000 lumens
- :: Efficacy: Up to 160 LM/W
- :: Color temperature: 5000K
- :: CRI: 70
- :: SDCM: <5 for color consistency
- :: Beam angle: 115° symmetrical
- :: Driver: Constant-current LED driver
- :: Dimming: 0-10V dimming
- :: Power factor: >0.95
- :: THD: <20% @ 230V
- :: Surge protection: 6kV L-N, 10kV L/N-E
- :: Housing: Aluminum alloy, powder-coated, gray finish
- :: Optic: Tempered glass
- :: Mounting: Hook mounting with safety rope mounting provision
- :: Impact rating: IK08
- :: Ingress protection: IP66
- :: Dimensions: 14.96-inch Dia. x 20.39-inch H
- :: Weight: 17.64 lbs
- :: Operating temperature: -22°F to 158°F (-30°C to 70°C)
- :: Warranty: 5-Year
- :: Certifications: ETL Certified, Wet Location
ELECTRICAL:
- 277–480VAC, 50/60 Hz
- 200W nominal wattage
- Constant-current LED driver
- 0–10V dimming
- Power factor: >0.95
- THD: <20% @ 230V
- Surge protection: 6kV L-N, 10kV L/N-E
- Operating temperature: -22°F to 158°F (-30°C to 70°C)
MECHANICAL:
- IP66 rated for protection against dust and water ingress
- IK08 impact resistance
- Aluminum alloy housing for efficient heat dissipation
- Powder-coated housing finish
- Tempered glass optic
- Gray finish
- Hook mounting
- Safety rope mounting provision
- Fixture dimensions: 14.96" Dia. x 20.39" H
- Fixture weight: 17.64 lbs.
LIGHTING:
- 32,000 lumens
- 5000K color temperature
- CRI 70
- Up to 160 LM/W efficacy
- 115° symmetrical beam angle
- LED3030 light source
- SDCM <5 for color consistency
- The Westgate UHT-200W-50K-480V is built for the toughest thermal environments, rated to run in ambient temperatures up to 158°F where standard high bays would fail.
- Recommended for foundries, heavy industrial warehouses, equipment processing facilities, and generator facilities.
- This is the 480V, 5000K configuration of the series, suited to high-voltage industrial service; its IP66 and IK08 construction also handles dust, washdown, and impact.
