Description

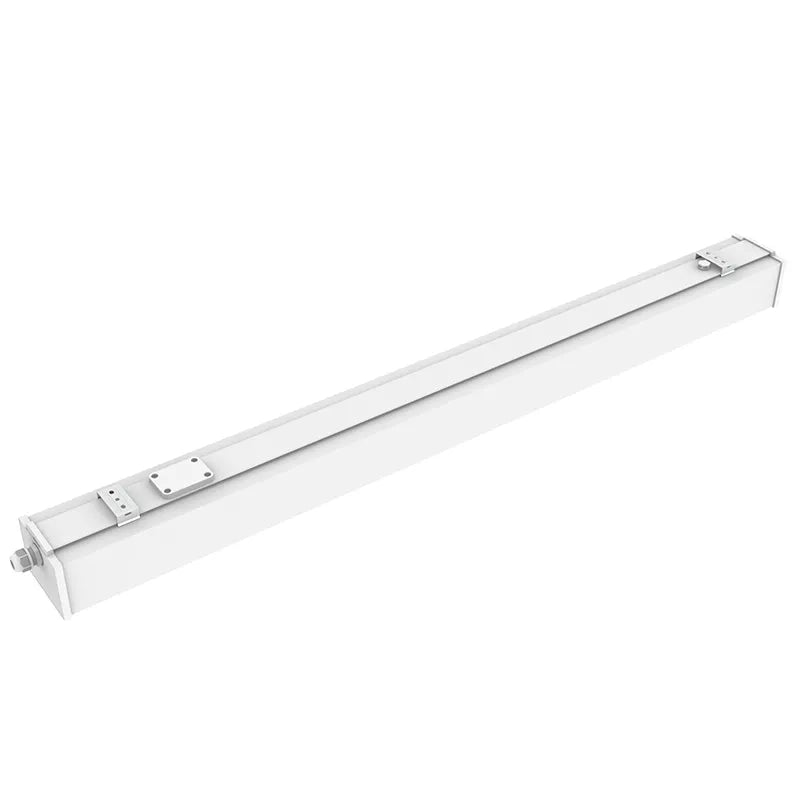

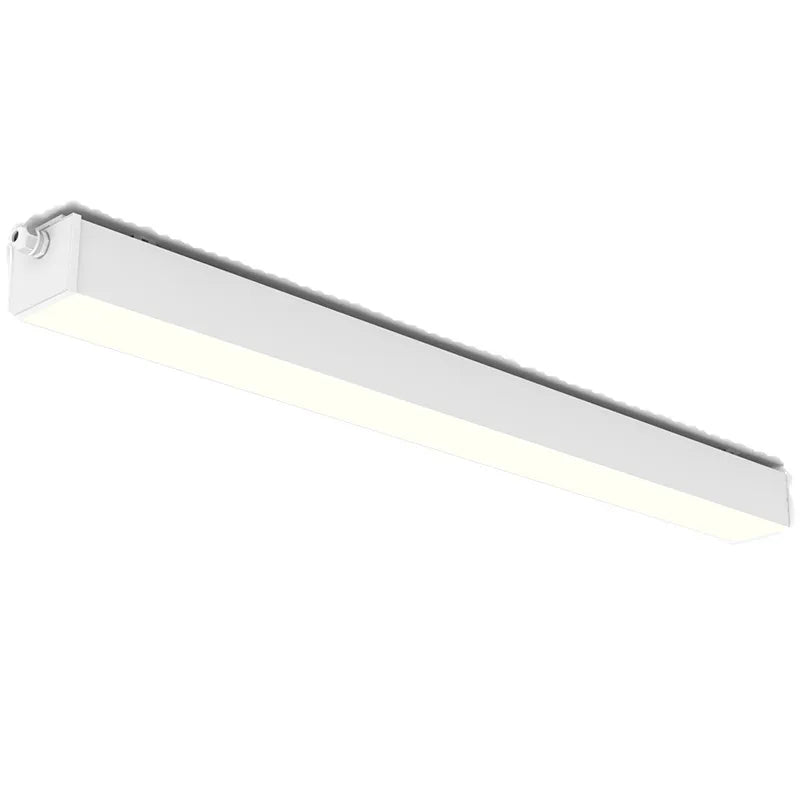

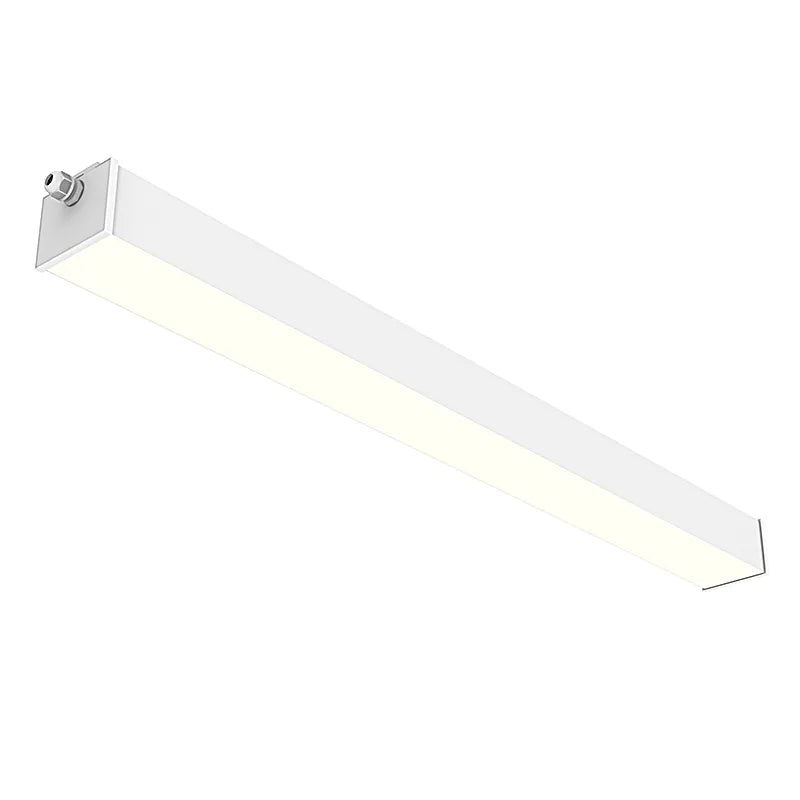

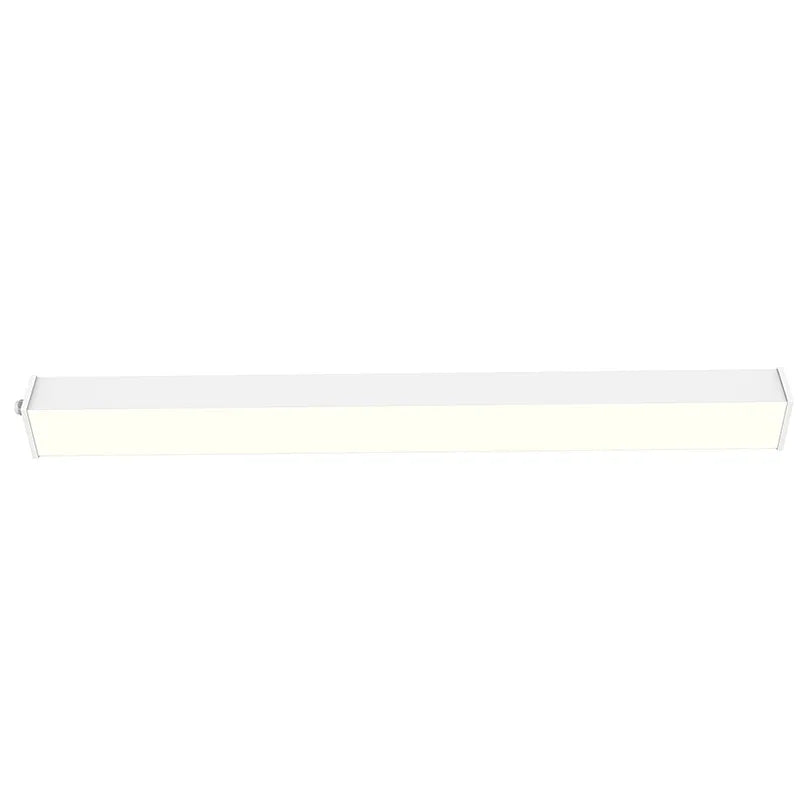

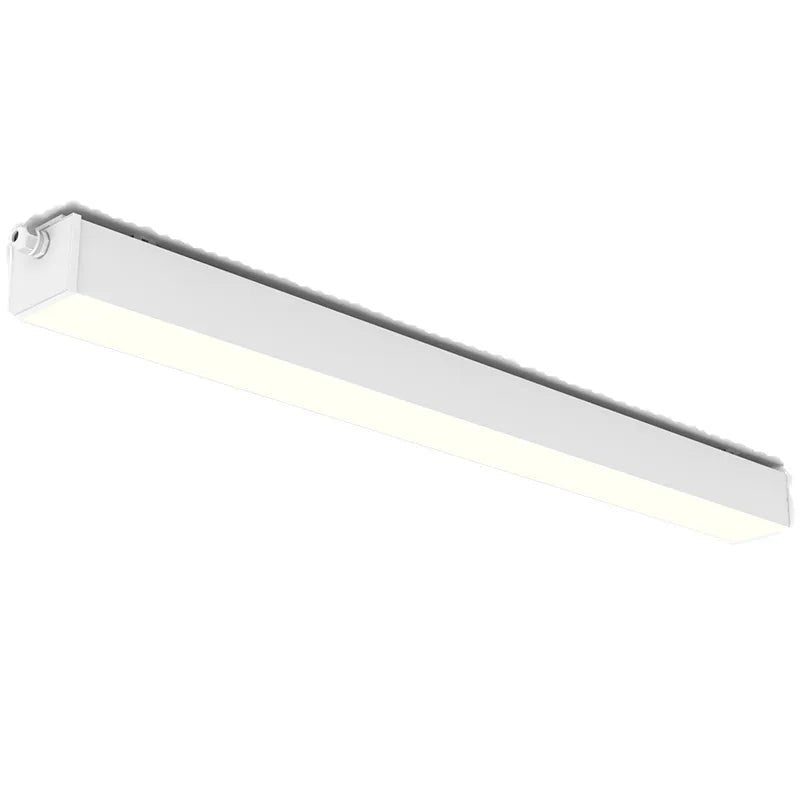

IP66 Wet Location 4" Superior Architectural Linear Surface Mounted Lights
The SCX series offers the best and the most comprehensive selection for linear lighting. The unique and modern look providing a impressive illumination for the occupants. Ideal for, retail locations, offices, lobbies, conference rooms, reception areas, hallways, educational facilities, hotels, and restaurants. FEATURES: Superior
Architectural Look Energy-efficient: Low Wattage Consumption& High Lumen Output Easier Wire Management, Multi Color Temperature (Selectable Switch on the Fixture).
Technical Specs
- :: Voltage: 120-277VAC 50/60Hz
- :: Wattage: 40W/60W/80W
- :: Power Factor: >0.95
- :: LPW: 105
- :: Total Harmonic Distortion: ≤ 19 %
- :: 6FT. Lead 18/5 AWG SJTW on One Side
- :: 1FT. Lead 18/5 AWG SJTW on The Other Side For Daisy Chaining. The Cord Can be Tucked in If Not Needed, Weatherproof 1/2” NPT Plug Provided to Cover The Hub.
- :: All Wires Are Capped
- :: Two Steel Compression Connectors Provided.
- :: Surface Mounting Brackets with Screws & Anchors Included
- :: Low Profile Modern Design
- :: Aluminum Housing With Sandy White Finish
- :: Mounting Options: Surface
- :: IP Rating: IP66 Wet Location Only
- :: Operating Temperature: -22°F to +104°F
- :: 5-Year Warranty
- :: MCTP: Multi Color Temperature and Power (Selectable Switch On Fixture)
- :: Dimmable: 0~10V Dimming
- :: Total Lumens: 8400LM Max.
- :: Color Temperatures: 3500K/4000K/5000K
- :: Multi-CCT(Selectable Switch Inside Fixture)
- :: Color Rendering Index: CRI ≥ 80
- :: 50,000 Hours Rated Life
- :: Beam Angle: 105°(H) x 103.7°(V)
Applications
- :: Ideal for offices, hotels, corridors, saloons, libraries, meeting rooms, conference halls, and the best solution for modern lighting solutions
