Description

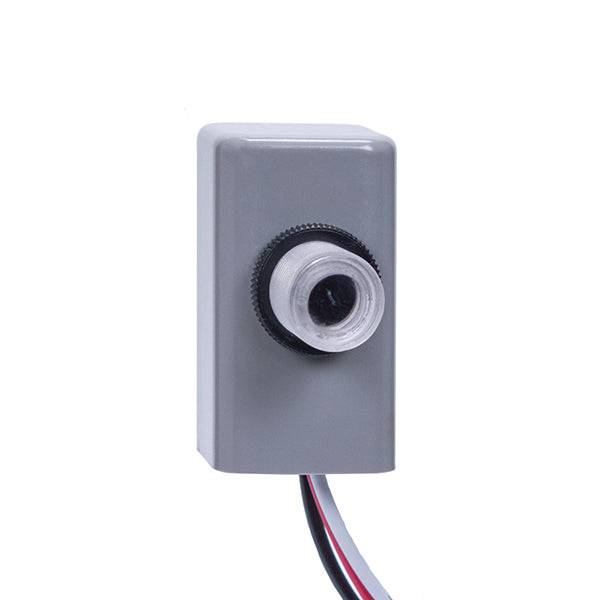

INTERMATIC Electronic Button Type Photocell - Fixed Position Mounting
PART#EK4036S
This Intermatic fixed mount button electronic photo control is the ideal sensor to manage outdoor lighting and housed in a high impact, weather-resistant plastic housing.
- Provides dusk-to-dawn control of outdoor, security, and floodlighting
- Non-drifting silicon light sensor with a zero-cross circuit
- 10,000 on/off operations of LED and HID lamps
- 255 joules of MOV surge protector
Features
• Dusk-to-dawn control of outdoor lighting
• Floodlights and security lighting
• Ideal for LED fixtures totaling 1650 W @ 277 VAC
• Non-drifting silicon light sensor IR filtered for human eye response
• Zero-cross technology helps device withstand severe inrush current and
extends relay life
• Exceeds 10,000 ON/OFF operations at full load to match life expectancy
of LED fixtures
• All components meet 15-year life requirements
Operating Specifications
• Voltage: 105-305 VAC, 50/60Hz
• Dielectric strength: 2500 VAC
• Operating ambient temperature range: -40°F to 158°F (-40°C to 70°C)
• Instant turn ON light level 1.5 fc
• OFF light level: 2.25 fc
• Turn OFF to ON ratio 1.5:1 with 2-5 second delay
• Fail mode: ON
• Power consumption <.5W @ 277 VAC
• 255 Joule MOV surge protection component
• 9" long, 18 awg wire leads
