Description

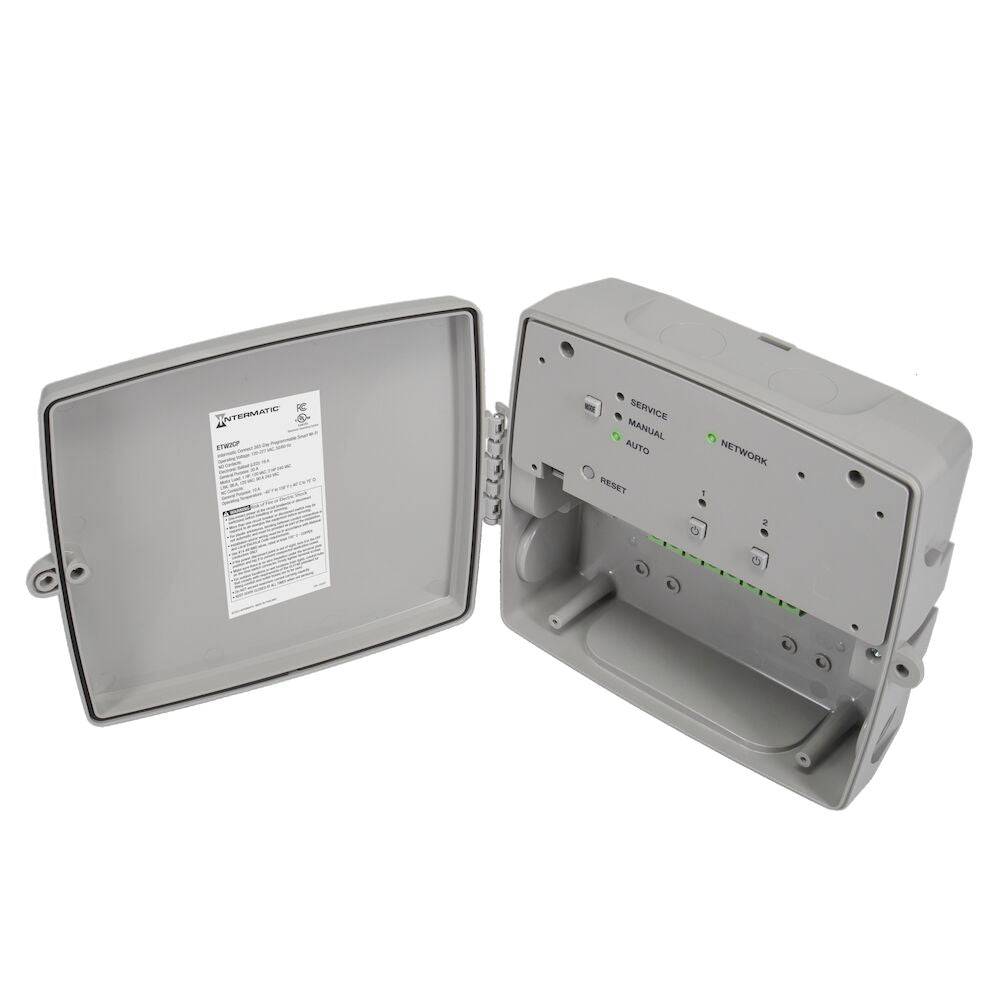

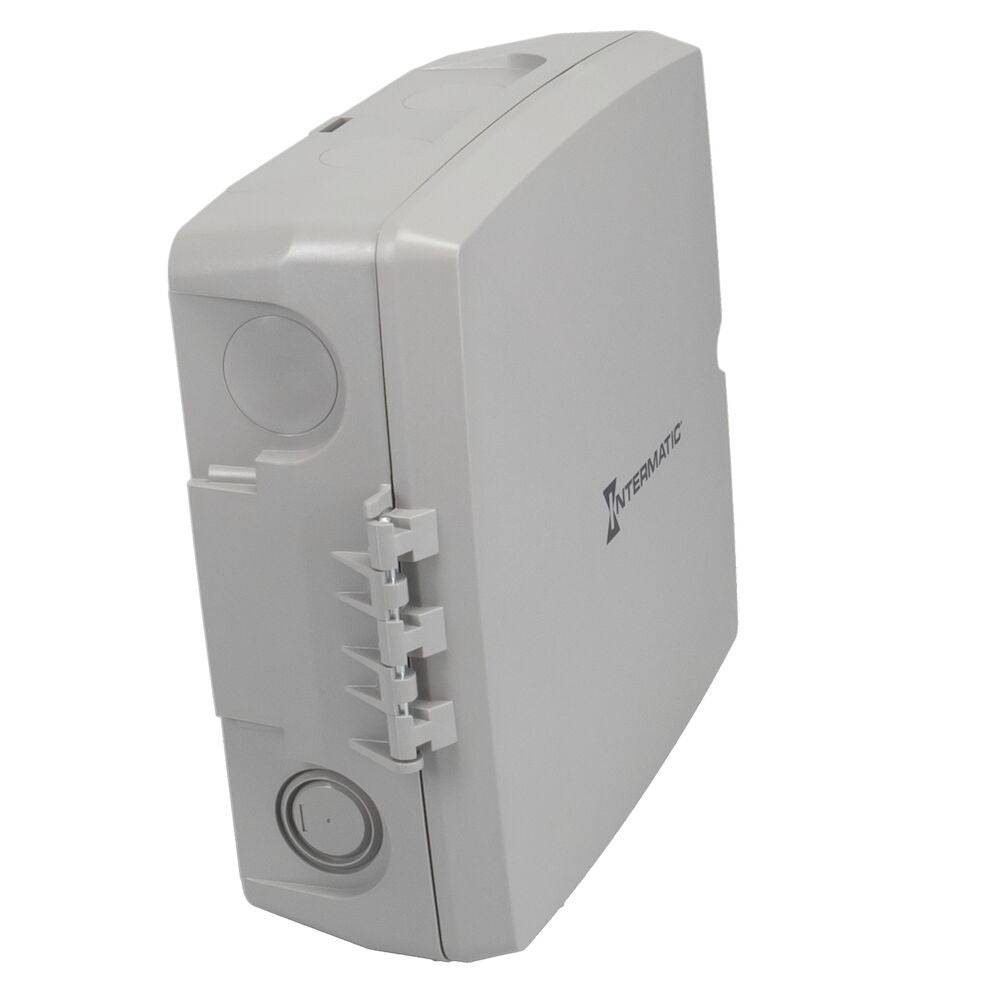

Intermatic Connect 365-Day Programmable Smart Wi-Fi Timer, 120-277 VAC, 2xSPDT, Indoor/Outdoor
In Stock
The ETW Series offers 365-day scheduling, off-site access, and remote ON/OFF control through the easy-to-use Intermatic Connect app.
- App-based configuration and scheduling
- Up to 256 set points or events
- Up to 64 holiday blocks with schedule capabilities
- Automatic input voltage selection from 120 to 277 VAC, 50/60 Hz
- Local or remote connectivity
- Configurable outputs allow the control of various voltages and applications
- Relays incorporate zero-crossing technology to extend the life of the control
- Non-volatile EEPROM memory protects programming indefinitely
- LED compatible
| Backup Type | Battery | Has Wi-Fi | Yes |
| Input Voltage Range(s) | 120-277 VAC, 50/60 Hz | Maximum ON/OFF Operations | 256 |
| Number Of Circuits | 2 | Operation Mode | 365-day |
| Switch Type | SPDT | Enclosure Type | Outdoor type 3 |
| Minimum ON/OFF Times | 1 min | Operation Features | Holiday |
| Maximum ON/OFF Times | Indefinite | Maximum Power Consumption (W) | 7 W |
| Wiring Option | Terminals | Backup Protection Time | 10 Years |
| ON/OFF Operations | 256 | Warranty Period | 3-Year limited |
| Application Compatibilities | Electronic Ballast, General Purpose, LED, Motor Load | Battery Service Type | Non-Serviceable |
| Battery Type | CR2032 Lithium | CAProp65Message | Please see the Warning @ www.P65Warnings.ca.gov |
| Country Of Origin | Thailand | Daylight Savings Adjustment | Automatic |
| Electronic Ballast LED | 16 A | General Purpose (NC) | 10 A |
| General Purpose (NC) Range(s) | 10 A | General Purpose (NO) Range(s) | 30 A |
| Knockout Dimensions Back | (1) combination 1/2" - 3/4" | Knockout Dimensions Bottom | (2) combination 1/2" - 3/4" |
| Knockout Dimensions Left | (1) combination 1/2" - 3/4" | Knockout Dimensions Right | (1) combination 1/2" - 3/4" |
| Motor Load Ratings NO Ranges | 1 HP, 120 VAC; 2 HP, 240 VAC | Motor Load Ratings Ranges | 1 HP, 120 VAC; 2 HP, 240 VAC; LRA: 96 A, 120 VAC; 90 A, 240 VAC |
| RoHS Certification | Y | Voltage Selection Type | Auto Voltage |
| Wire Size Max | #8 AWG | Wire Size Min | #14 AWG |
| Auto Start/Stop | False | Check Valve | False |
| DOE Compliant | False | Freeze protection | False |
| Leaf Screen | False | Operating Temperature Max (°C) | 70 |
| Operating Temperature Max (°F) | 158 | Operating Temperature Min (°C) | -40 |
| Operating Temperature Min (°F) | -40 | Product Depth (in) | 3 |
| Product Depth (mm) | 76.2 | Product Height (in) | 7.5 |
| Product Height (mm) | 190.5 | Product Width (in) | 8.875 |
| Product Width (mm) | 225.425 | Self Priming | False |
| Submersible | False | UL Certification | CULUS |
| Unit Carton Height (in) | 4.375 | Unit Carton Length (in) | 10 |
| Unit Carton Weight (lb) | 2.39 | Unit Carton Width (in) | 9.5 |
| Units Per Pallet | 999 | UV Resiliant Outdoor Enclosure | False |
