Description

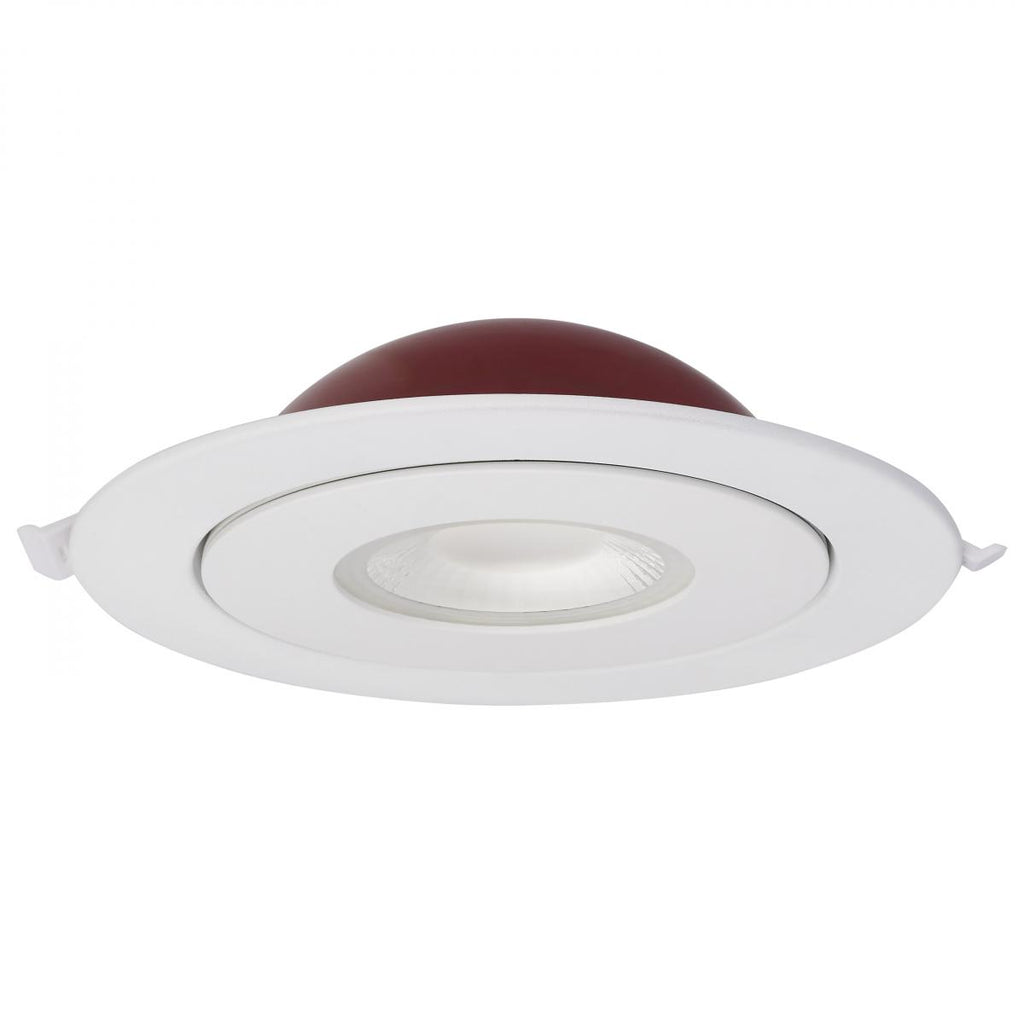

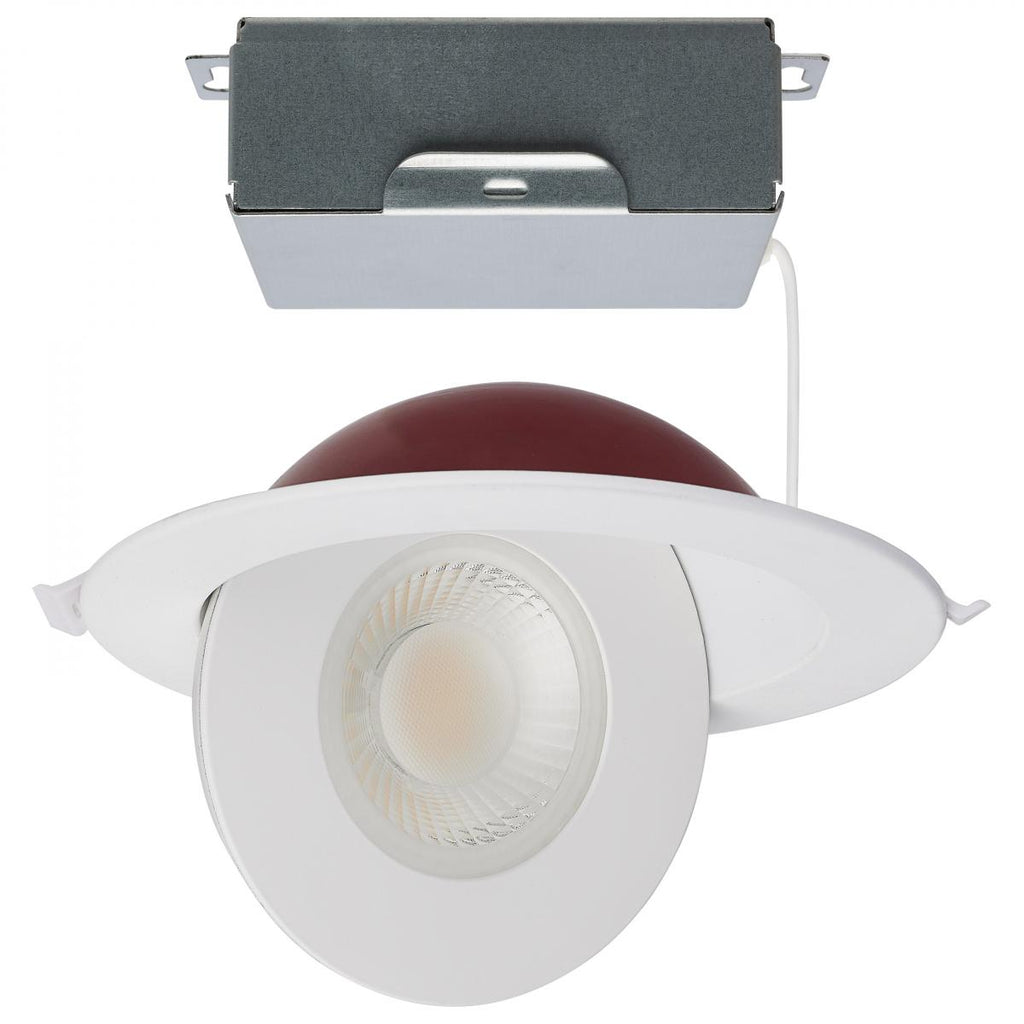

Fire Rated; 6 Inch Direct Wire Directional Downlight; Round Shape; White Finish; CCT Selectable
SATCO|NUVO’s Fire Rated Directional Downlights are the perfect solution to increase safety and offer focused light. Designed to provide exceptional illumination, these downlights also provide two hours of protection in the event of a fire, Improve illumination and peace of mind in residential, multi-family and commercial applications.
- 2-Hour Fire Rated
- 6-inch Round
- Dimmable

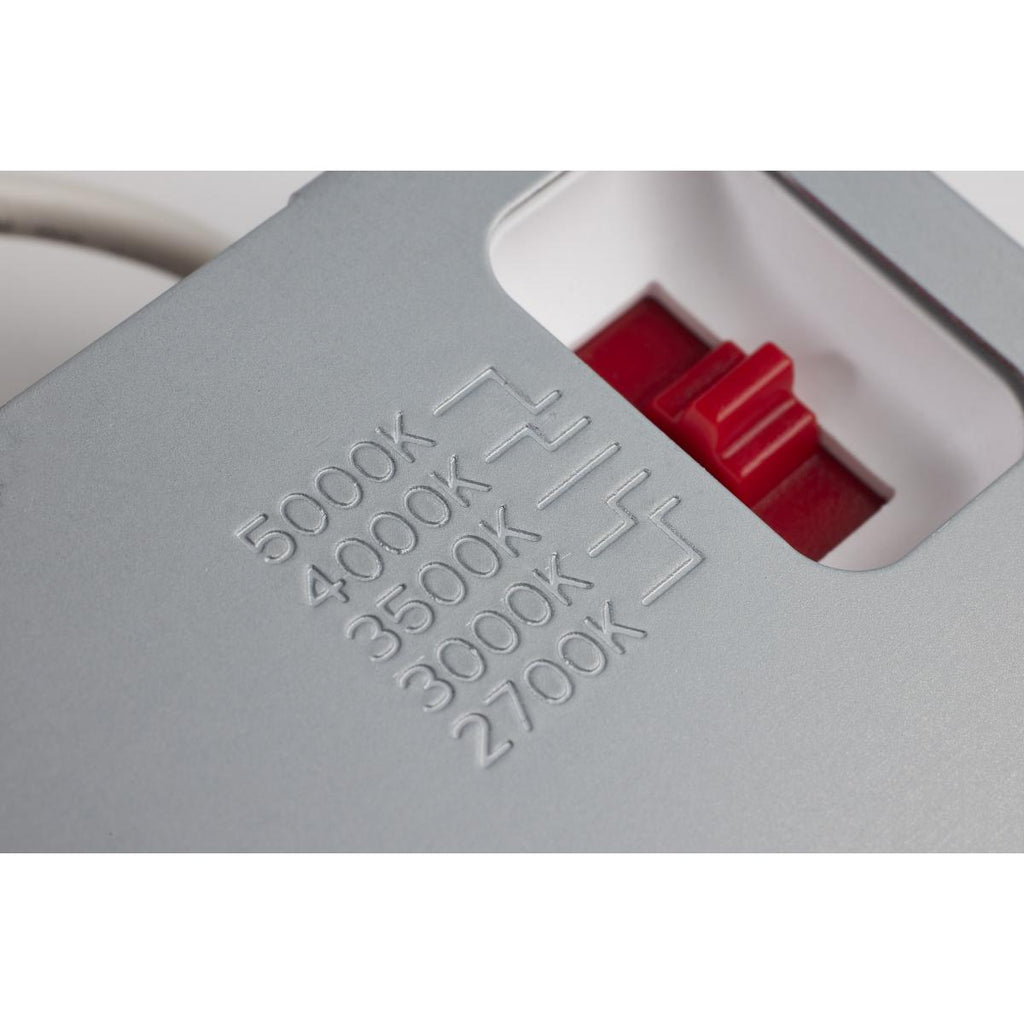

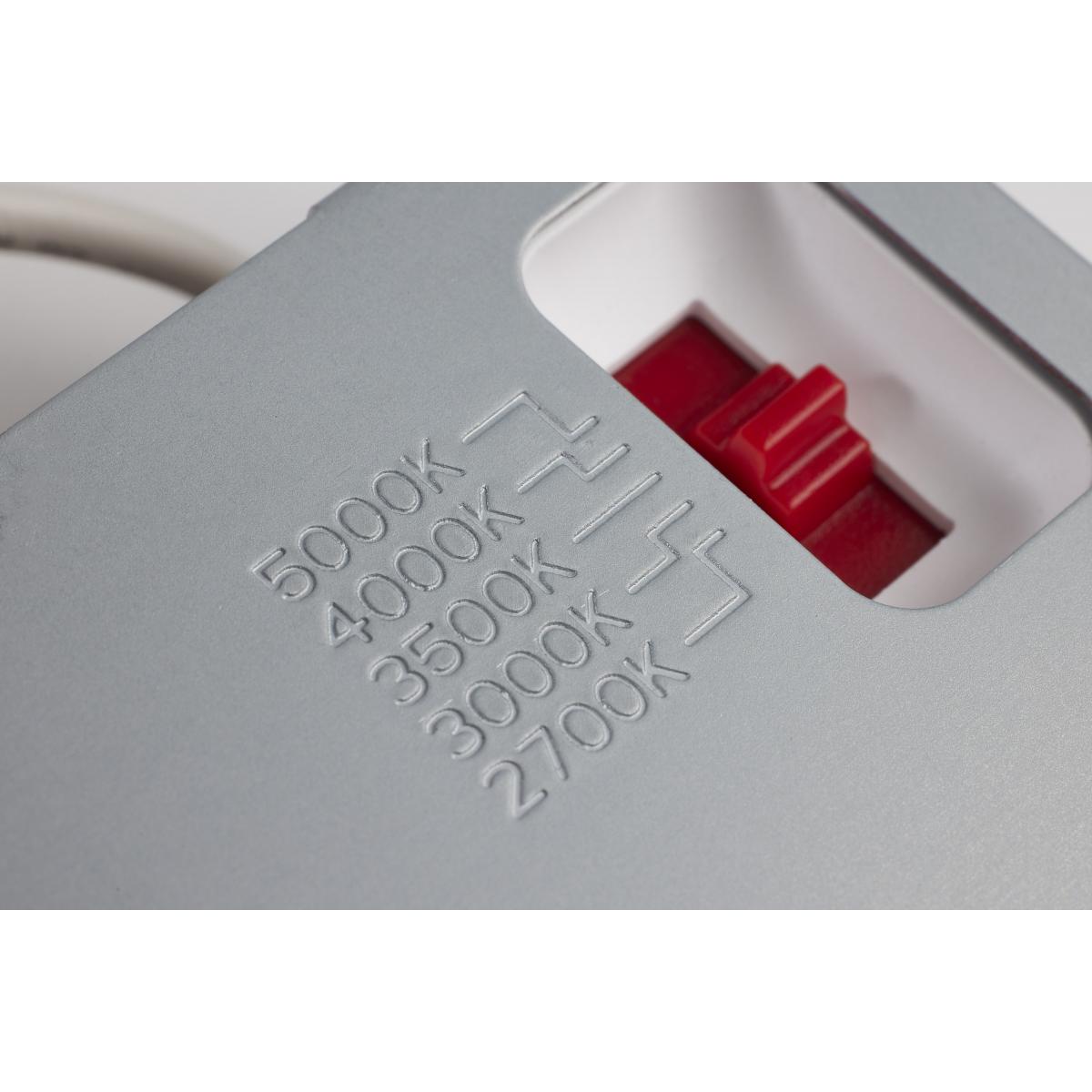

- CCT Selectable
- 360-Degree Rotation; 80-Degree Tilt
- White Trim

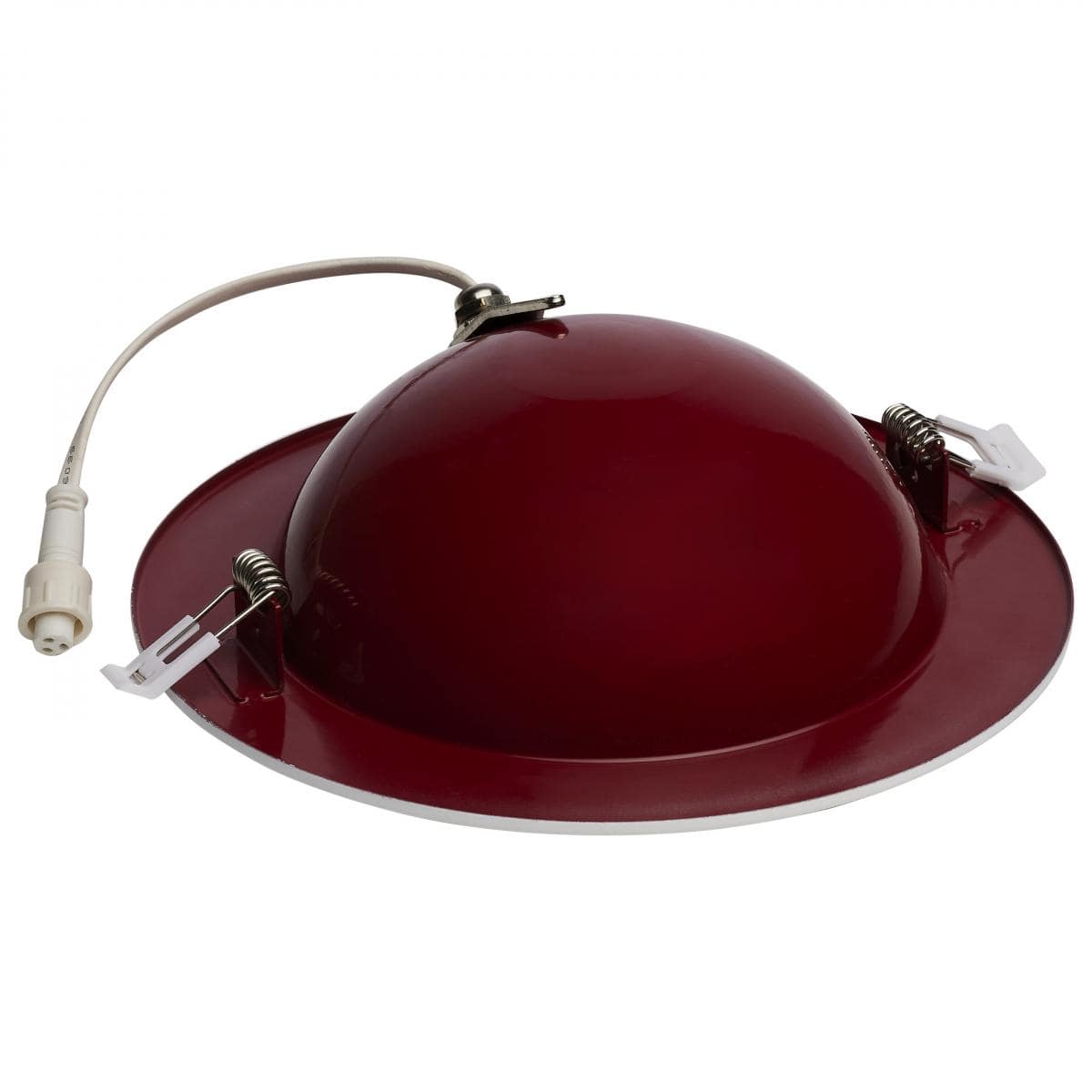

- Red Painted Back Plate
- Wet Location Rated
- 90 CRI
| Recessed Can Size | 6 in. |
| Wattage | 15W |
| Voltage | 120V |
| Finish | White |
| CCT (Kelvin) | 2700K/3000K/3500K/4000K/5000K |
| Color Temperature | Warm White to Natural Light |
| Lumen Output | 1280L |
| Indoor or Outdoor Fixture | Indoor |
Specifications
| Technology | LED |
| Wattage | 15W |
| Lumen Output | 1280L |
| CCT (Kelvin) | 2700K/3000K/3500K/4000K/5000K |
| Color Temperature | Warm White to Natural Light |
| CRI | 90 |
| Voltage | 120V |
| Beam Angle | 40 |
| Rated Hours | 50000 |
| Operating Temperature | -20C (-4F) to +40C (+104F) |
| Dimmable | Yes-Dimmable |
| Sloped Ceiling | Yes |
Dimensions
| Width (in.) | 7.48 |
| Height (in.) | 2.17 |
| Weight (lb.) | 1.57 |
Compliance
| Safety Listing | cETLus - Listed |
| Location Rating | Wet |
| UL Application | Covered Ceiling Mount |
| Energy Star | Yes |
| ES Unique ID | ESID-2684099 |
| DLC Approved | No |
| Air Tight Rated | Yes |
| IC Rated | Yes |
| CA T20 / T24 Rationale | California T24 2016 - 2022 JA8 Listed |
| Title 20 / 24 Status | California T24 Listed |
| California Prop 65 |
Lead
|
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| SDS Sheet | LED Lamp |
Additional Information
| Additional Information | 2-Hour Fire Rated |
| Specification Note | Rotation Angle 360 degrees; Tilt Angle 80 degrees |
| Warranty | 5 Year Limited - Fixtures |
Packaging
| Each UPC | 045923118814 |
| Each Quantity | 1 |
| Each Length (in.) | 8.19 |
| Each Width (in.) | 3.94 |
| Each Height (in.) | 8.27 |
