Description

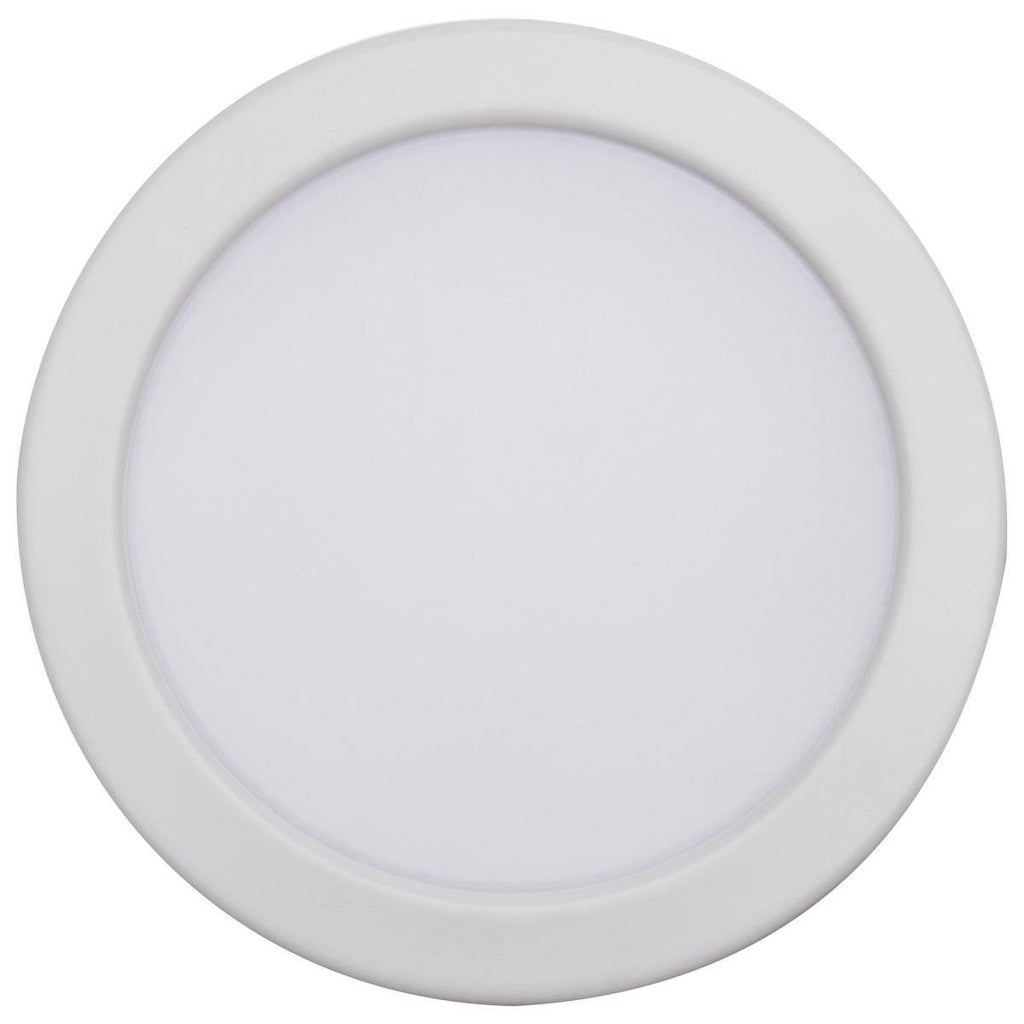

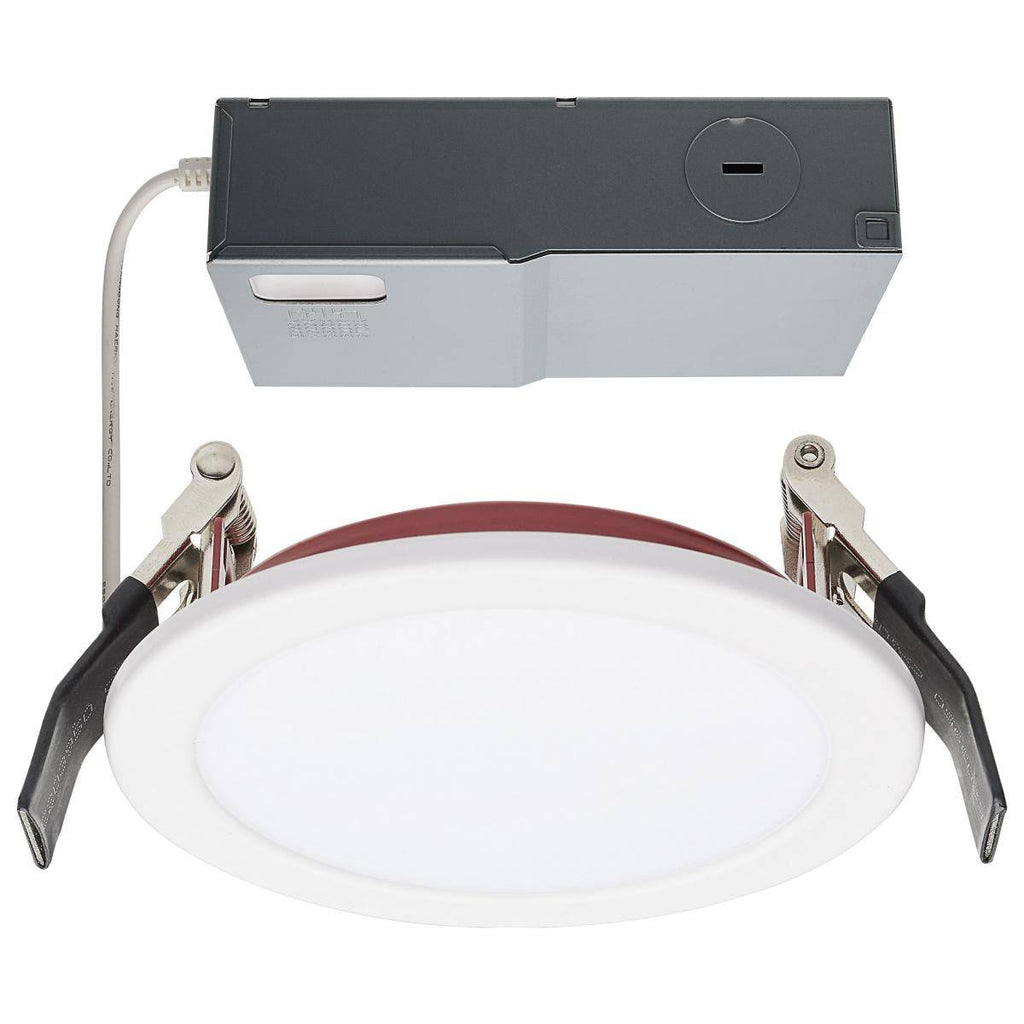

Fire Rated 4 Inch Direct Wire Downlight; Round Shape; White Finish; CCT Selectable
SATCO|NUVO's Fire Rated Downlights are the perfect solution for installations with low ceiling clearance. Designed to provide exceptional illumination, these downlights provide two hours of protection in the event of a fire. Increase safety and peace of mind in residential, multi-family, and commercial applications.
- Fire rated up to 2-hours

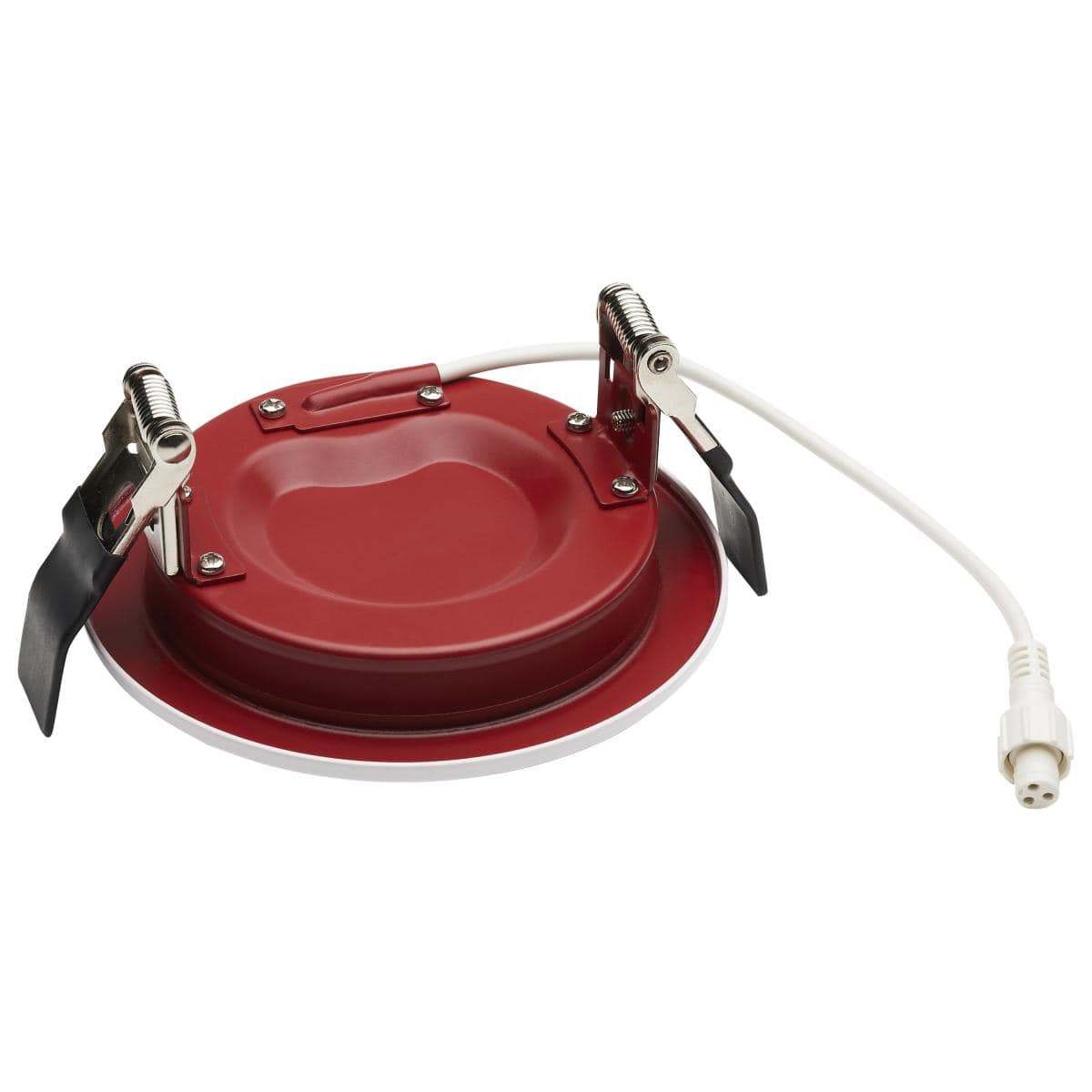

- Red painted backplate for easy identification

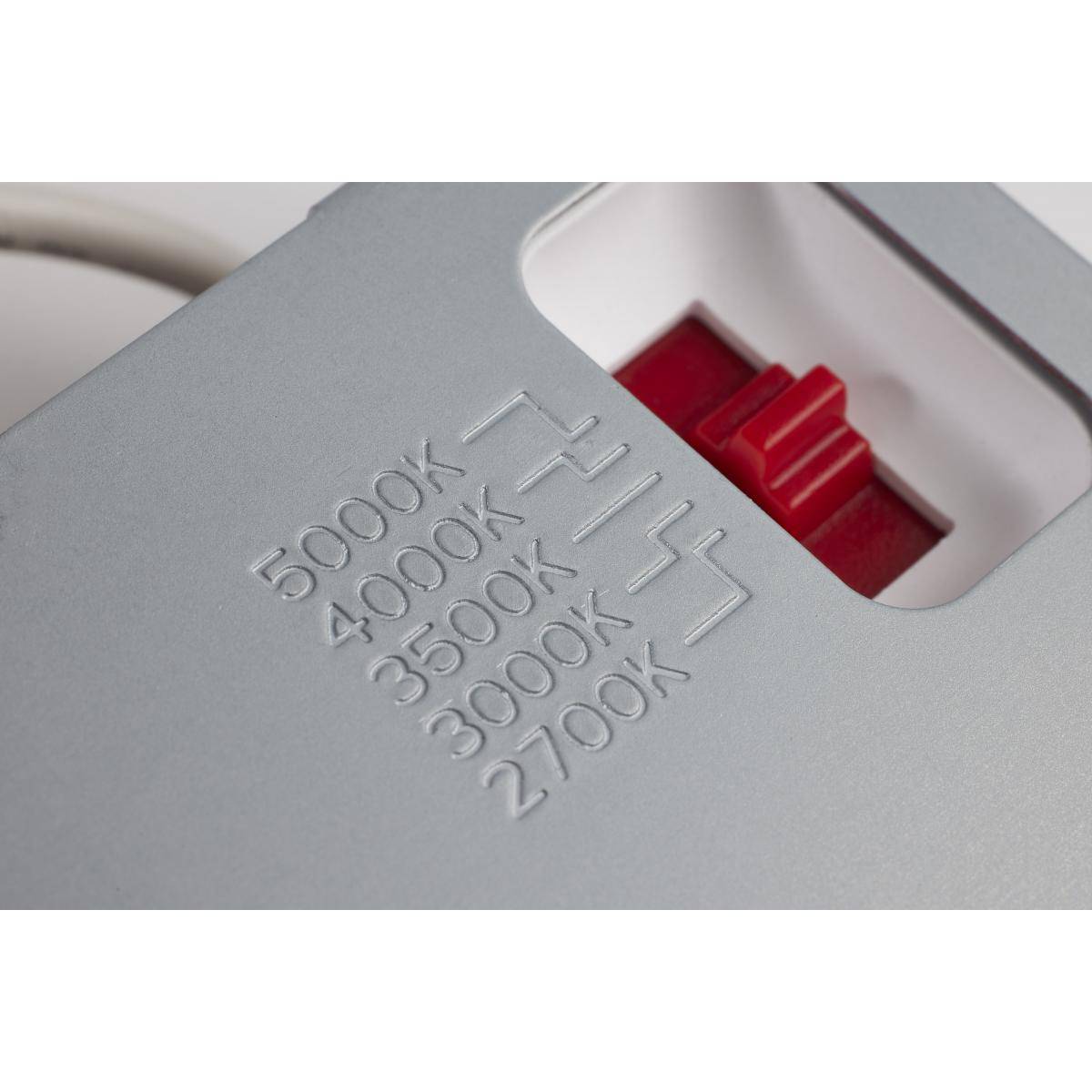

- 5 CCT Selectable
- 90 CRI
- Wet location rated
- Dimmable
- IC Rated
- AT Rated
| Wattage | 10W |
| Voltage | 120V |
| Finish | White and Red |
| CCT (Kelvin) | 2700K/3000K/3500K/4000K/5000K |
| Color Temperature | Warm White to Natural Light |
| Lumen Output | 800L |
| Indoor or Outdoor Fixture | Indoor |
Specifications
| Technology | LED |
| Wattage | 10W |
| Lumen Output | 800L |
| CCT (Kelvin) | 2700K/3000K/3500K/4000K/5000K |
| Color Temperature | Warm White to Natural Light |
| CRI | 90 |
| Voltage | 120V |
| Beam Angle | 110 |
| Rated Hours | 50000 |
| Operating Temperature | -20C (-4F) to +40C (+104F) |
| Dimmable | Yes-Dimmable |
| Sloped Ceiling | No |
Dimensions
| Width (in.) | 4.75 |
| Height (in.) | 0.69 |
| Weight (lb.) | 1.02 |
Compliance
| Safety Listing | cULus - Certified |
| Location Rating | Wet |
| UL Application | LED Recessed Luminaire |
| Energy Star | Yes |
| ES Unique ID | ESID-2473552 |
| DLC Approved | No |
| NSF Approved | No |
| Air Tight Rated | Yes |
| IC Rated | Yes |
| CA T20 / T24 Rationale | California T24 2016 - 2022 JA8 Listed |
| Title 20 / 24 Status | California T24 Listed |
| California Prop 65 |
Lead
|
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| SDS Sheet | LED Lamp |
Additional Information
| Additional Information | 2-Hour Fire Rated; White Trim/Red Backplate |
| Specification Note | Driver Dimensions: 4.50" x 3.00" x 1.25" |
| Warranty | 5 Year Limited - Fixtures |
Packaging
| Each UPC | 045923118647 |
| Each Quantity | 1 |
| Each Length (in.) | 5.83 |
| Each Width (in.) | 2.68 |
| Each Height (in.) | 5.43 |
