Nicor
Part : EXL220UNVCLR1
Price:
$78.64

Please contact us for quantity discount

Description

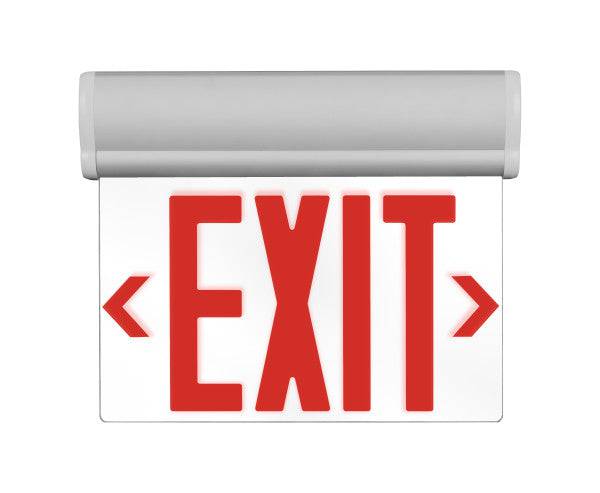

Edge-Lit LED Emergency Exit Sign, Clear with Red Lettering

Features
  • Clear, single-sided configuration
  • Maintenance-free NiCad battery provides 90-minute emergency operation
  • Satin finished, spec-grade aluminum base housing
  • Impact-resistant acrylic sign face
  • 120/277VAC Dual-Voltage operation (60Hz input)
  • Integrated low-voltage disconnect to eliminate deep discharge
  • Brown-out, short-circuit, and voltage-surge protection
  • Push-button test switch with LED indicator
  • Includes mounting-plate and hardware for easy installation
  • Includes optional chevron arrow indicators
  • Protected by NICOR's 1-year limited warranty

DESCRIPTION
-
The EXL2-20 Series LED Edge-Lit Exit Sign features a contemporary design, built with dependability in mind. The sign is constructed using impact-resistant (optically clear) acrylic in a single-sided configuration. Bright LEDs illuminate the exit sign with exceptional light distribution and quality. The thin, edge-lit design saves space and reduces weight, making installation a breeze (considering it’s usually done on a ladder). The EXL2-20 can be mounted from the top or end of the base. The adjustable base rotates 90° for easy installation on any surface. The EXL2 features an integrated nickel-cadmium battery to provide 90-minute emergency run-time if the power gets cut. Directional chevron arrows are included. Available in red or green lettering.

SPECS

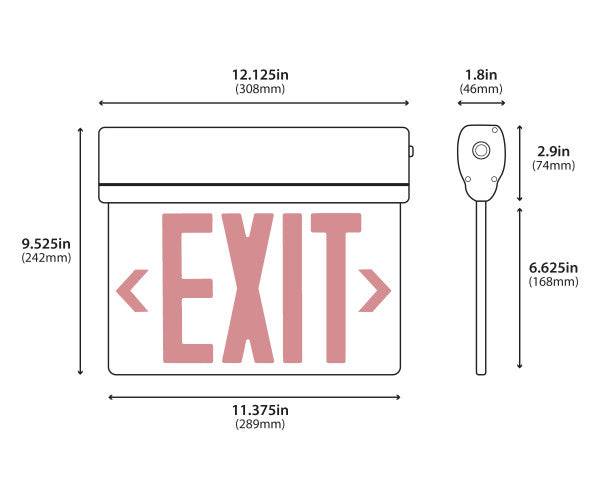

Size (in.)
12
Product Color
Clear, Red Letters
Finish
Satin
Light Source
LED
Wattage
2.3
Operating Temperature
32˚F - 104˚F (0˚C - 40˚C)
Listings/Certifications
UL 924 Listed
cUL 924 Listed
NFPA 70 Compliant
NFPA 101 Compliant
FCC Class B
Damp-Location
Other Certifications
Meets or exceeds requirements of NFPA 70 & NFPA 101
Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
Warranty (Years)
  1. 1
