Description

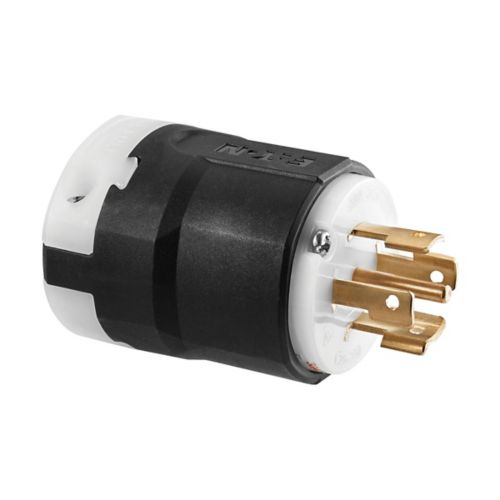

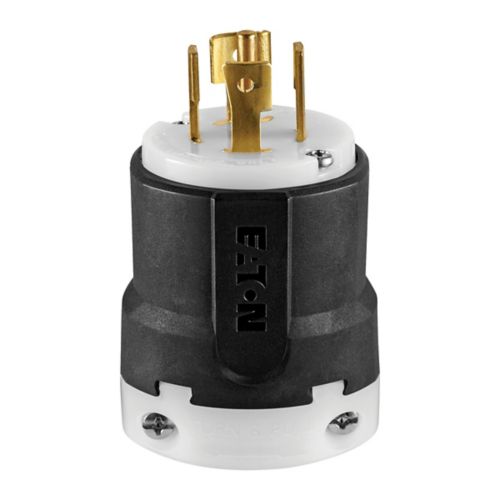

Eaton Ultra Grip Locking Plug, #16-8 AWG, 30A, Industrial, 240/415V- Four-pole
General specifications
| Product Name |
Eaton Arrow Hart ultra grip locking plug
|
| Catalog Number |
AHL2630P
|
| UPC |
032664747519
|
| Product Length/Depth |
2.48 in
|
| Product Height |
4.25 in
|
| Product Width |
2.44 in
|
| Product Weight |
0.45 lb
|
| Compliances |
Federal Specifications Classification W-C375
|
| Certifications |
cULus Listed
NOM |
| Product Type |
Ultra grip
|
Product specifications
| Special features |
Data center device
|
| Type |
Locking plug
|
| Amperage Rating |
30A
|
| Voltage rating |
240/415 V
|
| Contact material |
Brass
|
| Application |
Industrial
|
| Device grade |
Extra heavy-duty industrial specification grade
|
| Wiring method |
Back
|
| Number of wires |
5
Grounding |
| Number of poles |
Four-pole
|
| Color |
White
Black |
| Cord diameter |
0.38-1.16 in (9.5-29.4 mm)
|
| Material |
Nylon
|
| Operating temperature |
-40 to 60 °C (-40 to 140 °F)
|
| Allowable wire size |
#16-8 AWG
|
| NEMA configuration |
L26-30
|
| Design type |
Ultra grip
|
| Face/body material |
Nylon
|
