Description

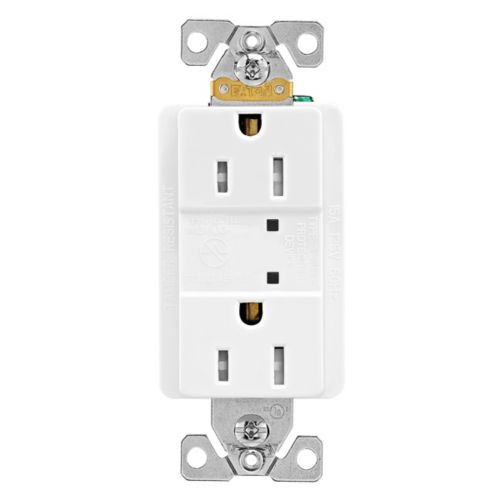

Eaton TVSS Surge Protection Tamper-Resistant 15A Duplex Receptacle in White
Eaton TVSS receptacle, LED indicator, #14 - #10 AWG, 15A, Comm specif, Wall/flush mnt, Bk and sd wire, 840J, 2 recept, -40° to 60°C, Wht, Brs, Strght blade, Hi-impct resist thermpls/nylon, 5-15R, Dplx 756337 756337
Product specifications
| Device type |
Straight blade
|
| Special features |
LED indicators
|
| Type |
TVSS surge protection receptacle
|
| Amperage Rating |
15A
|
| Voltage rating |
125 V
|
| Contact material |
Brass
|
| Joules |
840J
|
| Allowable wire size |
#14-10 AWG
|
| NEMA configuration |
5-15R
|
| Application |
Commercial
|
| Device grade |
Commercial
|
| Wiring method |
Back and side
|
| Material |
Thermoplastic
|
| Number of receptacles |
2
|
| Operating temperature |
-40 to 60 °C
|
| Torque rating |
14 lbf-inch
|
| Number of wires |
3
|
| Mounting method |
Flush
Wall |
| Number of poles |
Two-pole
|
| Style type |
Duplex
|
| Color |
White
|
| Face/body material |
Nylon
High-impact resistant thermoplastic |
| Receptacle type |
Two-pole, three-wire, grounding
|
General specifications
| Product Name |
Eaton TVSS receptacle
|
| Catalog Number |
TR5260WS
|
| UPC |
032664756337
|
| Product Length/Depth |
1.62 in
|
| Product Height |
4.2 in
|
| Product Width |
1.7 in
|
| Product Weight |
0.28 lb
|
| Compliances |
RoHS Compliant
|
| Certifications |
cULus Listed
NOM |
| Product Type |
TVSS receptacl
|
