Description

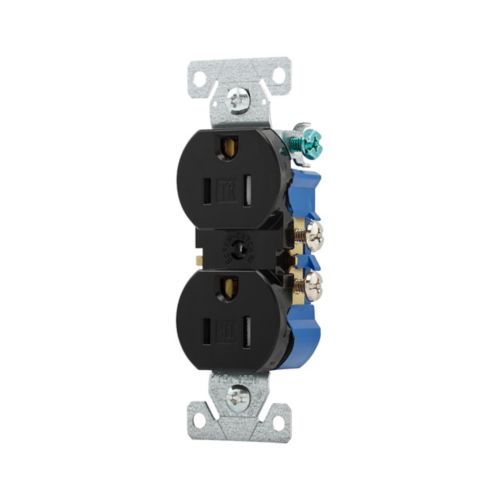

Eaton Tamper-Resistant 15A-125V Standard Duplex Receptacle in Black
Product Specification
| Device type |
Receptacle
|
| Type |
Duplex receptacle
|
| Amperage Rating |
15A
|
| Voltage rating |
125V
|
| Contact material |
Brass
|
| Features |
Tamper resistant
|
| Application |
Commercial/residential
|
| Device grade |
Standard grade
|
| Wiring method |
Side and push
|
| Number of wires |
3
|
| Mounting method |
Flush
|
| Number of poles |
Two-pole
|
| Style type |
Standard
|
| Material |
Thermoplastic
|
| Packaging type |
Core pack
|
| Color |
Black
|
| Connection type |
Screw
|
| Allowable wire size |
Push-In Terminals Wiring: #14 AWG copper (CU) Only, Side Wiring: #10-14 Copper or Copper Clad Aluminum
|
| NEMA configuration |
5-15R
|
| Torque rating |
14 lbf-inch
|
| Design type |
Straight blade
|
| Face/body material |
PVC body
Impact-resistant thermoplastic face |
| Receptacle type |
Duplex
|
General specifications
| Product Name |
Eaton residential grade duplex receptacle
|
| Catalog Number |
TR270BK
|
| UPC |
032664667299
|
| Product Length/Depth |
1.24 in
|
| Product Height |
4 in
|
| Product Width |
0.79 in
|
| Product Weight |
0.01 lb
|
| Certifications |
cULus Listed
NOM |
| Product Type |
Residential grade
|
