Description

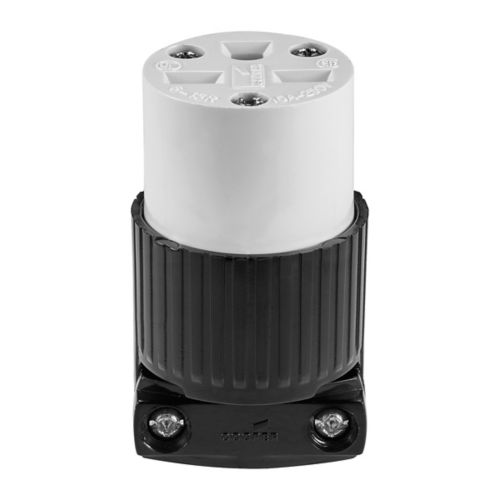

Eaton Severe Duty Straight Blade Connector, 15A, 250V
General specifications
| Product Name |
Eaton Arrow Hart severe duty straight blade connector
|
| Catalog Number |
5669
|
| UPC |
032664392504
|
| Product Length/Depth |
6.5 in
|
| Product Height |
1.5 in
|
| Product Width |
3.5 in
|
| Product Weight |
0.165 lb
|
| Certifications |
UL
NOM Federal Specification Classification 6221 02 |
| Product Type |
Severe duty
|
Product specifications
| Device type |
Connector
|
| Type |
Complex environment
|
| Amperage Rating |
15A
|
| Voltage rating |
250V
|
| Contact material |
Nickel-plated brass
|
| Application |
Industrial
|
| Device grade |
Severe duty
|
| Wiring method |
Back wire
|
| Environmental conditions |
Corrosive
|
| Number of wires |
3
|
| Number of poles |
Two-pole
|
| Style type |
Straight body
|
| Cord range |
0.38-1" in diameter
|
| Material |
Nylon
|
| Packaging type |
Core pack
|
| Environmental resistance |
Corrosion resistant
|
| Color |
Black
White |
| Connection type |
Screw
|
| Allowable wire size |
#18-12 AWG
|
| NEMA configuration |
6-15R
|
| Design type |
Straight blade
|
| Face/body material |
Nylon
|
| Receptacle type |
Two-pole, three-wire, grounding
|
