Description

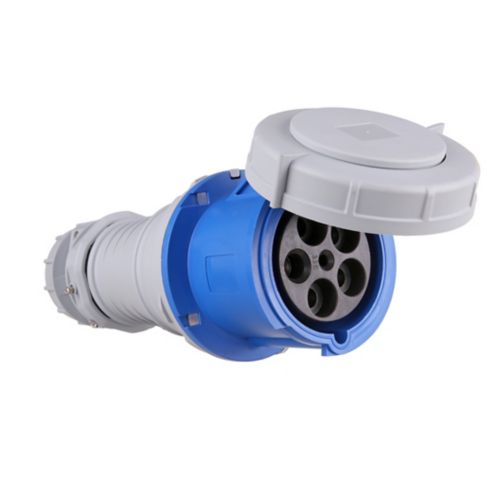

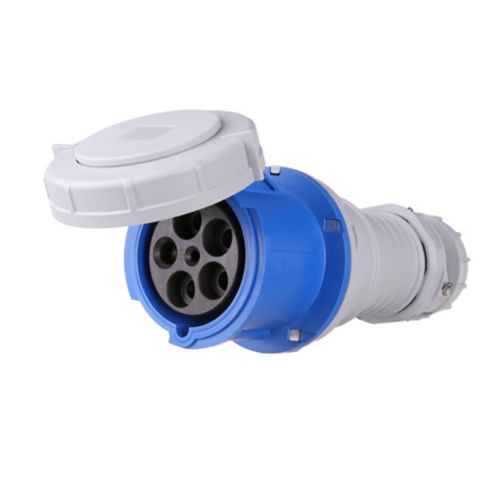

Eaton Pin and Sleeve Connector, IP69K Rated, 100/125A, 120/208V, Four-Pole, 5 Wire
Product specifications
| Special features |
IP69K Rated
|
| Type |
Connector
|
| Amperage Rating |
100/125A
|
| Voltage rating |
100/125A 3ØY 120/208V
|
| Contact material |
Nickel plated brass
|
| Number of wires |
5
Grounding |
| Number of poles |
Four-pole
|
| Cable diameter |
0.97-1.94in (2.46-5.00cm)
|
| Environmental resistance |
IP69K
IP67 |
| Allowable wire size |
#4 -1/0 AWG, #12 - #16 AWG (pilot)
|
| Design type |
Pin and sleeve connector
|
| Face/body material |
Nylon
|
General specifications
| Product Name |
Eaton Arrow Hart pin and sleeve connector
|
| Catalog Number |
AH5100C9WDR
|
| UPC |
032664007088
|
| Product Length/Depth |
11.83 in
|
| Product Height |
4.86 in
|
| Product Width |
4.86 in
|
| Product Weight |
0.01 lb
|
| Product Type |
Pin and Sleeve connector
|
