Description

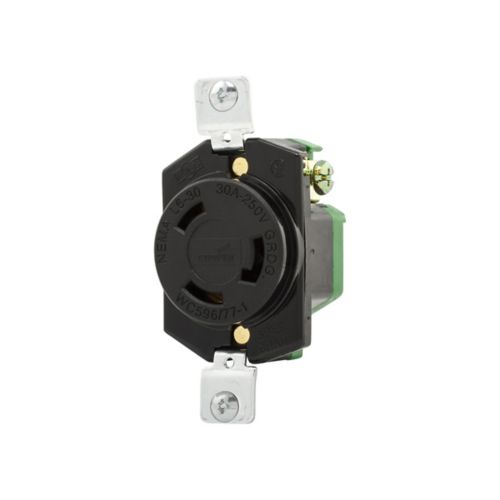

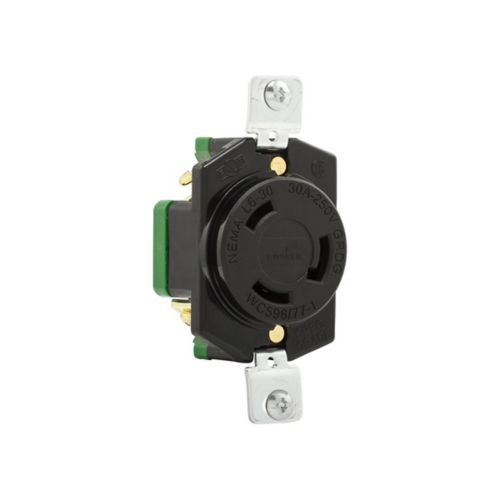

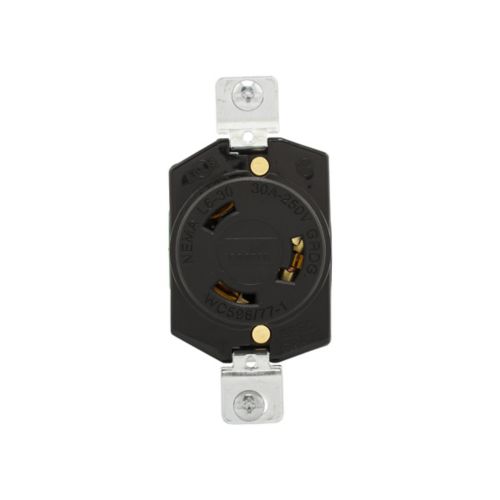

Eaton Locking Receptacle, #14-8 AWG, 30A, Industrial, 250V, Back Wiring, Black, Single, L6-30, Two-pole, Three-wire
Product specifications
| Special features |
Severe duty locking plug
|
| Type |
Locking receptacle
|
| Amperage Rating |
30A
|
| Voltage rating |
250 V
|
| Contact material |
Brass
|
| Application |
Industrial
|
| Device grade |
Commercial
|
| Wiring method |
Back
|
| Number of wires |
Grounding
3 |
| Number of poles |
Two-pole
|
| Color |
Black
|
| Material |
Nylon
|
| Operating temperature |
-40 to 70 °C (-40 to 158 °F)
|
| Allowable wire size |
#14-8 AWG
|
| NEMA configuration |
L6-30
|
| Design type |
Single receptacle
|
| Face/body material |
Nylon
|
| Receptacle type |
Single
|
General specifications
| Product Name |
Eaton Arrow Hart locking receptacle
|
| Catalog Number |
L630R
|
| UPC |
032664417900
|
| Product Length/Depth |
1.5 in
|
| Product Height |
6.5 in
|
| Product Width |
3.5 in
|
| Product Weight |
0.86 lb
|
| Compliances |
Federal Specifications Classification W-C375
RoHS Compliant |
| Certifications |
UL Listed
NOM CSA certified |
