Description

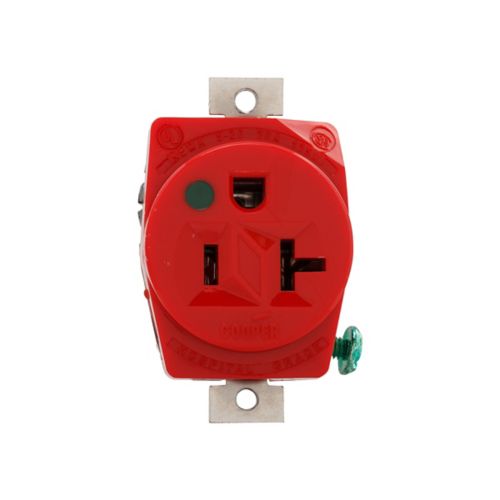

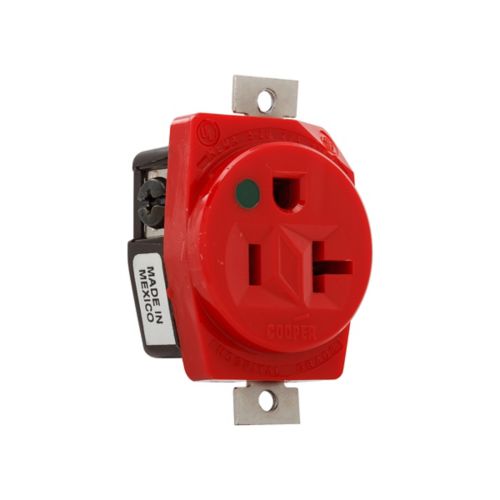

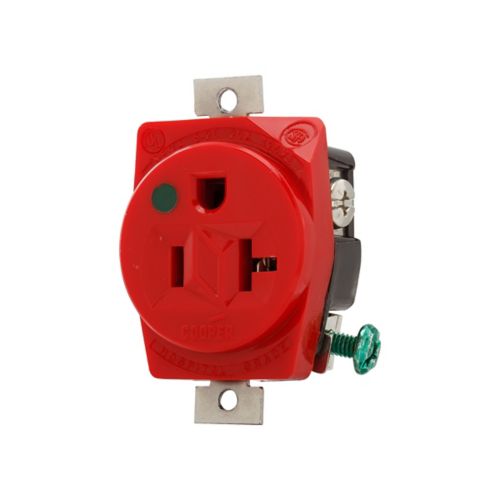

Eaton Extra Heavy-Duty Hospital Grade 20 AMP Single Receptacle
General specifications
| Product Name |
Eaton Arrow Hart extra heavy-duty hospital grade single receptacle
|
| Catalog Number |
8310MRD
|
| UPC |
032664707230
|
| Product Length/Depth |
1.31 in
|
| Product Height |
4.19 in
|
| Product Width |
1.313 in
|
| Product Weight |
0.208 lb
|
| Certifications |
UL
NOM Federal Specification Classification 6233 01 |
Product specifications
| Device type |
Receptacle
|
| Type |
Single receptacle
|
| Amperage Rating |
20A
|
| Voltage rating |
125V
|
| Contact material |
Brass
|
| Features |
Auto-grounding
Short strap |
| Application |
Healthcare
|
| Device grade |
Extra heavy-duty hospital grade
|
| Wiring method |
Back and side
|
| Number of wires |
Three-wire
|
| Mounting method |
Flush
|
| Number of poles |
Two-pole
|
| Style type |
Standard
|
| Material |
Glass-filled nylon
|
| Packaging type |
Core pack
|
| Color |
Red
|
| Connection type |
Screw
|
| Allowable wire size |
#14-10 AWG
|
| NEMA configuration |
5-20R
|
| Design type |
Straight blade
|
| Face/body material |
PVC Base
High-impact nylon face |
| Receptacle type |
Single
|
