Description

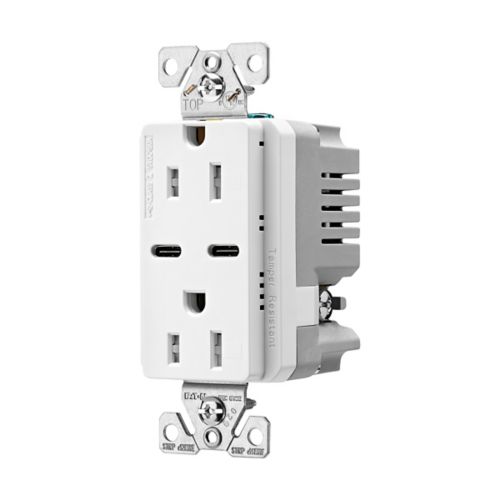

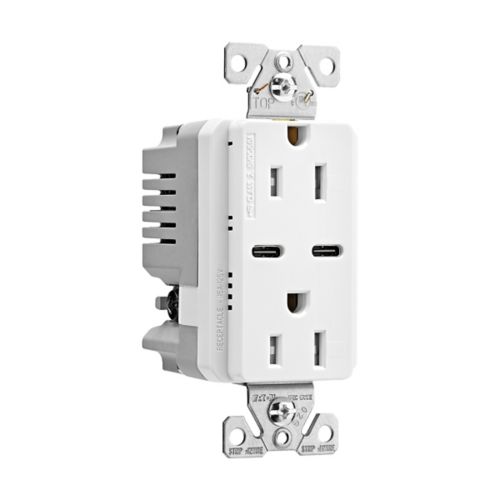

Eaton Combination USB Type-C Charger, 15A 5-15R Receptacle, 5A, 125 Vac, White
General specifications
| Product Name |
Eaton combination USB charger with duplex receptacle
|
| Catalog Number |
TRUSBC15W
|
| UPC |
032664753305
|
| Product Length/Depth |
1.4 in
|
| Product Height |
4.19 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.285 lb
|
| Certifications |
NOM
cULus Listed |
| Product Type |
Combination USB charger with duplex receptacle
|
Product specifications
| Type |
Type C
|
| Amperage Rating |
15A
|
| Voltage rating |
125 V
|
| Contact material |
Brass
|
| Features |
Tamper resistant
5A Charging |
| Wiring method |
Screw terminals
|
| Number of wires |
Three-wire
|
| Mounting method |
Flush
Surface |
| Number of poles |
Two-pole
|
| Packaging type |
Retail Box
|
| Color |
White |
| Material |
Thermoplastic
|
| Style |
Decorator
|
| Allowable wire size |
Side or Back Wiring :#10-14 Copper or Copper Clad Aluminum
|
| NEMA configuration |
5-15R
|
| Torque rating |
14 lbf-inch
|
| Combination type |
USB
|
| Design type |
Receptacle
|
| Receptacle type |
Two-pole, three-wire, grounding
|
