Description

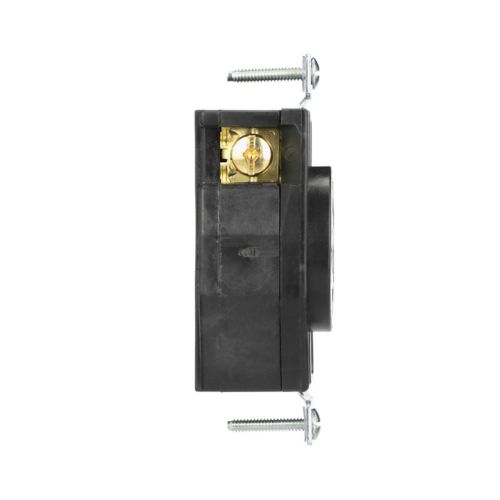

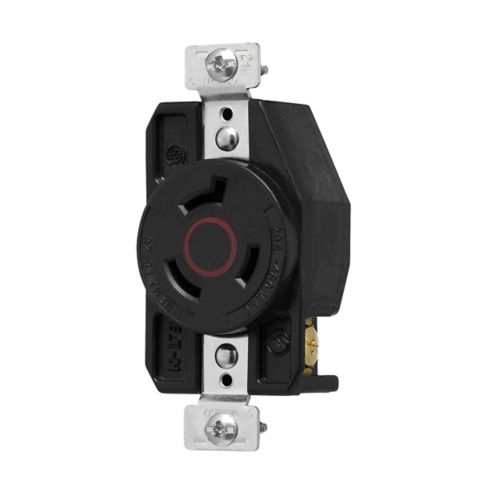

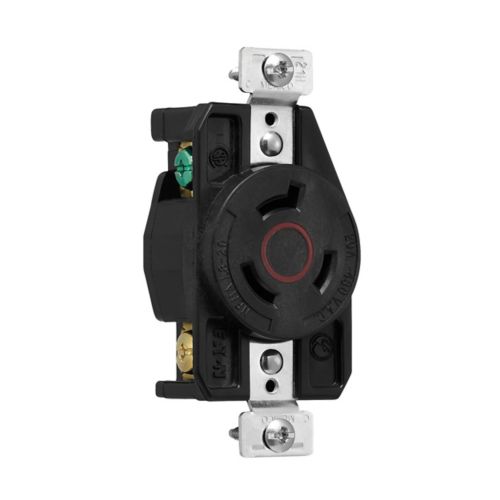

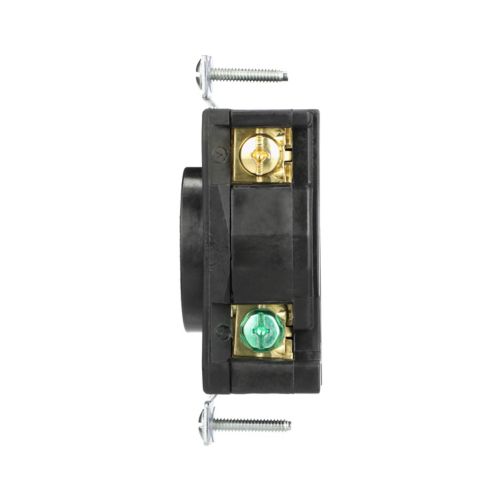

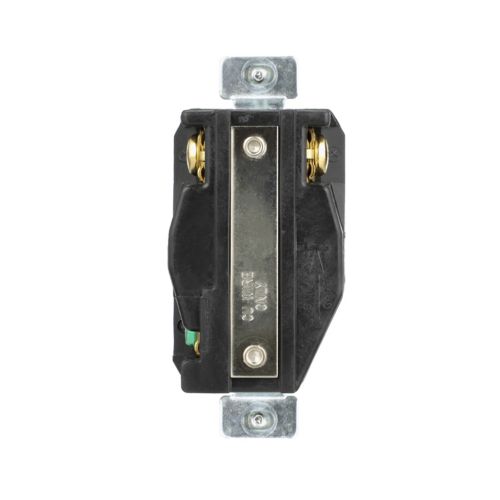

Eaton Color Coded Locking Receptacle, #14-8 AWG, 20A, Industrial, 480V
General specifications
| Product Name |
Eaton Arrow Hart Color Coded Locking Receptacle
|
| Catalog Number |
AHCL820R
|
| UPC |
032664758614
|
| Product Length/Depth |
1.62 in
|
| Product Height |
3.64 in
|
| Product Width |
1.03 in
|
| Product Weight |
0.33 lb
|
| Compliances |
RoHS Compliant
NAFTA |
| Certifications |
CSA Certified
UL Listed NOM Federal Specification Classification 6233 01 |
Product specifications
| Special features |
Voltage Color Coding
|
| Type |
Locking Receptacle
|
| Amperage Rating |
20A
|
| Voltage rating |
480 V
|
| Application |
Industrial
|
| Wiring method |
Back and side
|
| Number of wires |
3
|
| Number of poles |
Two-pole
|
| Color |
Black
Red |
| Material |
Glass filled nylon
|
| Operating temperature |
-40 to 70 °C (-40 to 158 °F)
|
| Allowable wire size |
#14-8 AWG
|
| NEMA configuration |
L8-20
|
| Torque rating |
20 lbf-inch
|
| Design type |
Ultra grip
|
| Face/body material |
Glass filled nylon
|
