Description

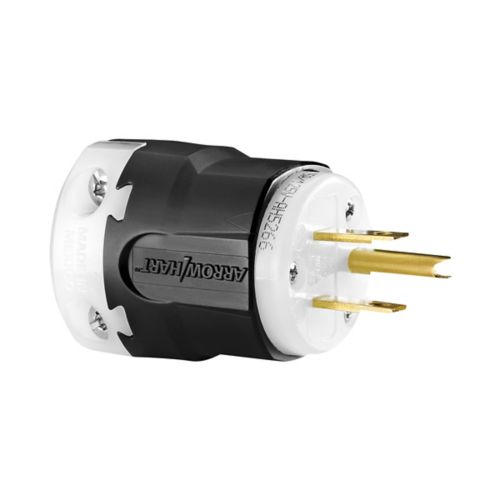

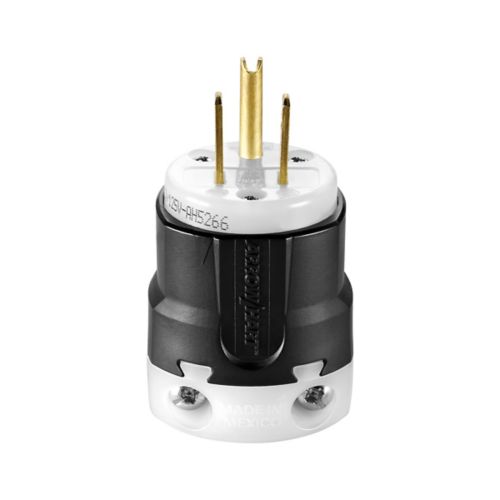

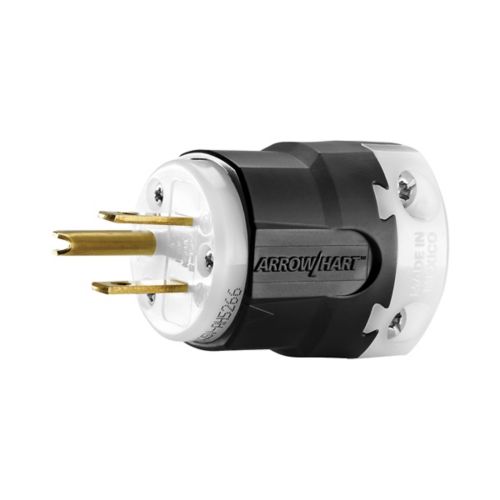

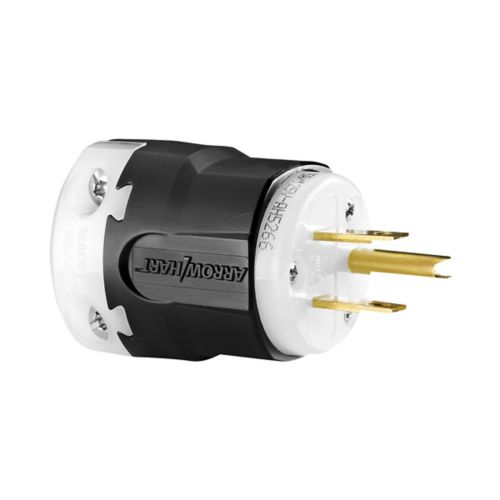

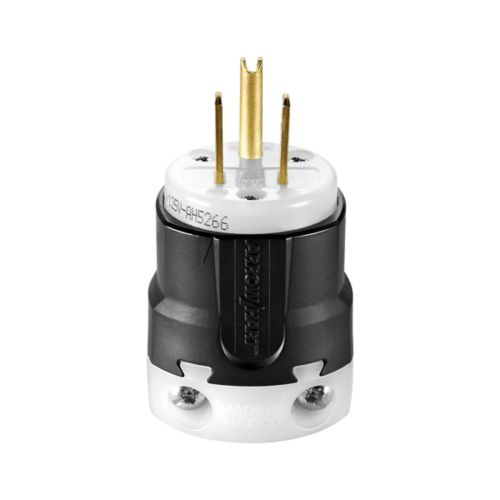

Eaton Arrow Hart Ultra Grip 15A Straight Blade Plug, #18 - #12 AWG, Industrial, 125V
General specifications
| Product Name |
Eaton Arrow Hart Ultra Grip straight blade plug
|
| Catalog Number |
AH5266
|
| UPC |
032664737503
|
| Product Length/Depth |
2.23 in
|
| Product Height |
2.1 in
|
| Product Width |
2.59 in
|
| Product Weight |
0.17 lb
|
| Compliances |
RoHS Compliant
|
| Certifications |
cULus Listed
NOM Federal Specification Classification W-C-596F |
| Product Type |
Ultra grip
|
Electrical Ratings
| Amperage Rating |
15A
|
| NEMA configuration |
5-15P
|
| Torque rating |
14 lbf-inch
|
| Voltage rating |
125V
|
| Wiring method |
Back wire
|
Material Specifications
| Color |
Black
|
| Contact material |
Brass
|
| Face/body material |
Nylon
|
| Material |
Nylon
|
Product Specifications
| Allowable wire size |
#18-12 AWG
|
| Application |
Industrial
|
| Connection type |
Screw
|
| Cord range |
0.33-0.66" in diameter
|
| Design type |
Straight blade
|
| Device grade |
Extra heavy-duty industrial specification grade
|
| Device type |
Plug
|
| Number of poles |
Two-pole
|
| Number of wires |
3
|
| Receptacle type |
Two-pole, three-wire, grounding
|
| Style type |
Straight body
|
| Type |
P
|
