Description

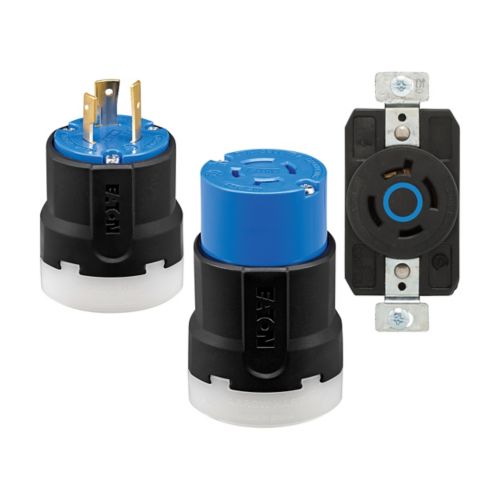

Eaton Arrow Hart Color Coded Locking Connector, #14-8 AWG, 20A, Industrial, 250V
Product specifications
| Special features | |
| Type |
Locking Connector
|
| Amperage Rating |
20A
|
| Voltage rating |
250 V
|
| Application |
Industrial
|
| Wiring method |
Back
|
| Number of wires |
3
|
| Number of poles |
Two-pole
|
| Color |
Blue
Black |
| Cord diameter |
0.38-1 in (9.5-25.4 mm)
|
| Material |
Nylon
|
| Operating temperature |
-40 to 60 °C (-40 to 140 °F)
|
| Allowable wire size |
#12-8 AWG Copper, or Copper-Clad Aluminum
|
| NEMA configuration |
L6-20
|
| Torque rating |
14-16 lbf-inch
|
| Design type |
Ultra grip
|
| Face/body material |
Nylon
|
General specifications
| Product Name |
Eaton Arrow Hart Color Coded Locking Connector
|
| Catalog Number |
AHCL620C
|
| UPC |
032664755583
|
| Product Length/Depth |
2.23 in
|
| Product Height |
3.71 in
|
| Product Width |
2.1 in
|
| Product Weight |
0.49 lb
|
| Compliances |
RoHS Compliant
NAFTA |
| Certifications |
cULus Listed
NOM |
