Description

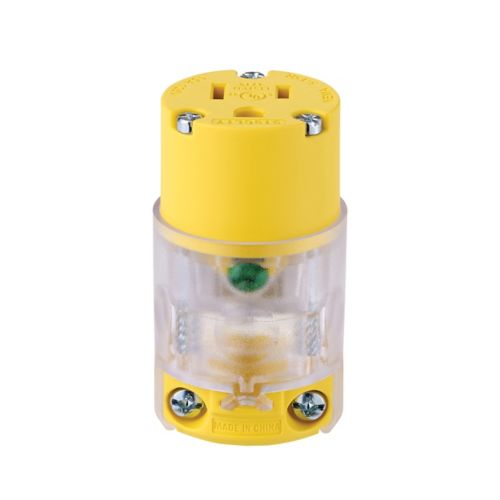

Eaton 15A Straight Blade Connector, Lighted/Power Indicating, #18-12 AWG, 125V
Eaton straight blade connector, Lighted/Power Indicating, #18-12 AWG, 15A, Residential & Commercial, 125V, Back wire, Yellow, Brass, Nylon, 5-15R, Two-pole, three-wire, grounding, Straight body, Screw, Green LED pilot light, Nylon
General specifications
| Product Name |
Eaton straight blade connector
|
| Catalog Number |
515CLTY-F
|
| UPC |
032664766565
|
| Product Length/Depth |
2.71 in
|
| Product Height |
1.52 in
|
| Product Width |
1.52 in
|
| Product Weight |
0.06 lb
|
| Compliances |
RoHS Compliant
|
| Certifications |
cULus Listed
|
| Product Type |
Straight blade connector
|
Product specifications
| Device type |
Connector
|
| Special features |
Lighted/Power Indicating
|
| Type |
Connector
|
| Amperage Rating |
15A
|
| Voltage rating |
125V
|
| Contact material |
Brass
|
| Application |
Commercial/residential
|
| Wiring method |
Back and side
|
| Number of wires |
Three-wire
|
| Number of poles |
Two-pole
|
| Style type |
Straight body
|
| LED pilot light color |
Green
|
| Material |
Nylon
|
| Packaging type |
Polybag
|
| Color |
Yellow
|
| Connection type |
Screw
|
| Allowable wire size |
#18-12 AWG
|
| NEMA configuration |
5-20R
|
| Design type |
Straight blade
|
| Face/body material |
Nylon
|
| Receptacle type |
Two-pole, three-wire, grounding
|
