Description

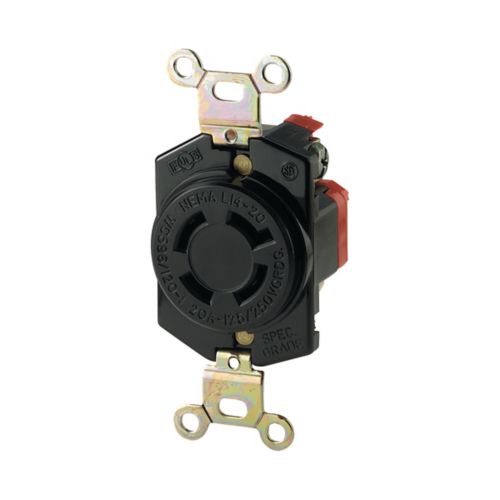

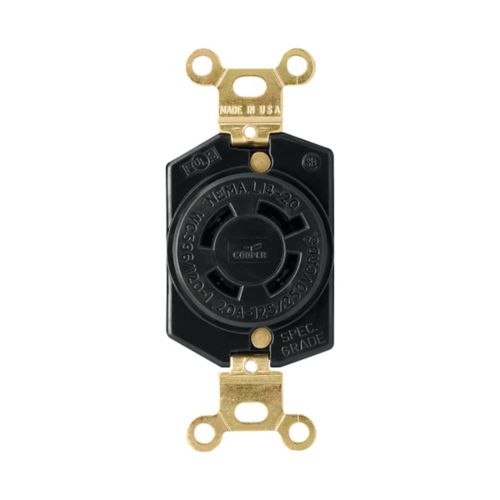

Eaton 20A Locking Receptacle, #18-10 AWG, Industrial, 125/250V, Back Wiring
General specifications
| Product Name |
Eaton Arrow Hart locking receptacle
|
| Catalog Number |
L1420R
|
| UPC |
032664427503
|
| Product Length/Depth |
6.5 in
|
| Product Height |
1.5 in
|
| Product Width |
3.5 in
|
| Product Weight |
0.86 lb
|
| Compliances |
Federal Specifications Classification W-C375
|
| Certifications |
NOM
CSA certified UL Listed cULus Listed |
| Product Type |
Locking receptacle
|
Product specifications
| Special features |
Severe-duty locking plug
|
| Type |
Locking receptacle
|
| Amperage Rating |
20A
|
| Voltage rating |
125/250 V
|
| Contact material |
Brass
|
| Application |
Industrial
|
| Device grade |
Commercial
|
| Wiring method |
Back
|
| Number of wires |
4
Grounding |
| Number of poles |
Three-pole
|
| Color |
Black
|
| Material |
Nylon
|
| Operating temperature |
-40 to 70 °C (-40 to 158 °F)
|
| Allowable wire size |
#16-12 AWG Copper, or Copper-Clad Aluminum
|
| NEMA configuration |
L14-20
|
| Design type |
Single receptacle
|
| Face/body material |
Nylon
|
| Receptacle type |
Single
|
