Description

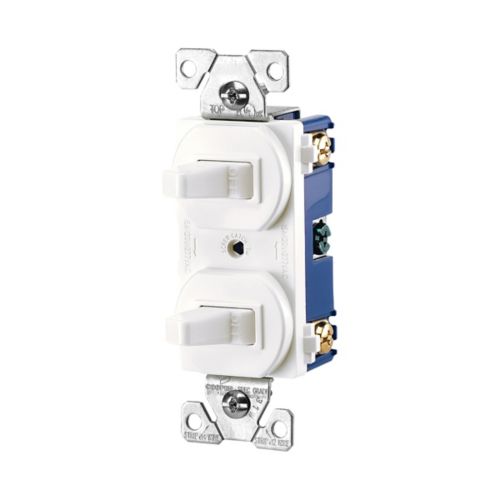

Eaton 15A Commercial Grade Combination Switch in White-120/277V
General specifications
| Product Name |
Eaton commercial grade combination switch
|
| Catalog Number |
271W
|
| UPC |
032664750311
|
| Product Length/Depth |
1.3 in
|
| Product Height |
4.19 in
|
| Product Width |
1.08 in
|
| Product Weight |
0.01 lb
|
| Compliances |
RoHS Compliant
|
| Certifications |
cULus Listed
NOM |
| Product Type |
Commercial grade combination switch
|
Product specifications
| Type |
Standard
|
| Amperage Rating |
15A
|
| Voltage rating |
120/277 V
|
| Number of poles |
Single-pole
|
| Configuration |
(2) toggle
|
| Application |
Commercial
|
| Device grade |
Commercial
|
| Wiring method |
Back and side
|
| Contact type |
Brass
|
| Switch type |
(2) single-pole
|
| Mounting method |
Flush
|
| Closure type |
Maintained
|
| Connector type |
Screw
|
| Material |
Thermoplastic
|
| Allowable wire size |
#14-12 AWG
|
| Operating temperature |
-20 to 60 °C
|
| Torque rating |
14 lbf-inch
|
| Style type |
Duplex
|
| Actuator |
Toggle
|
| Color |
White
|
