Description

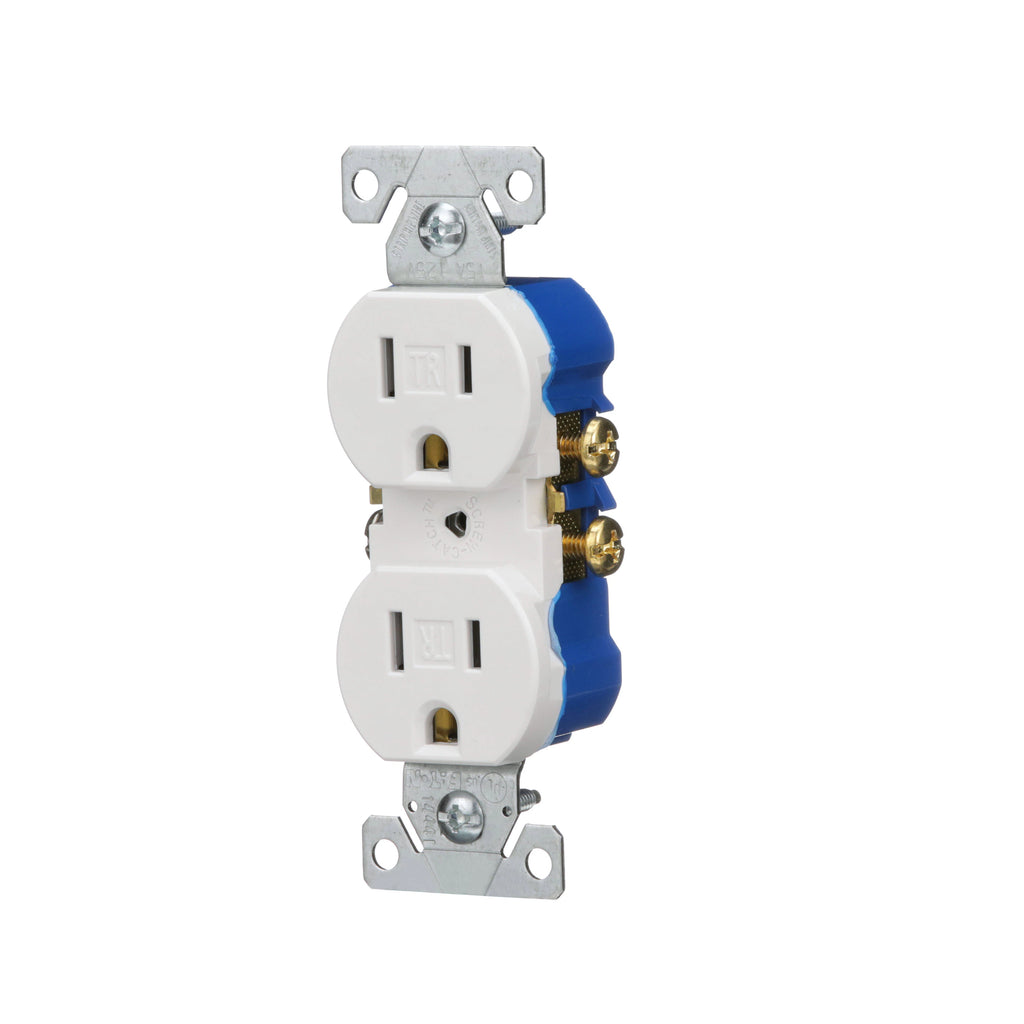

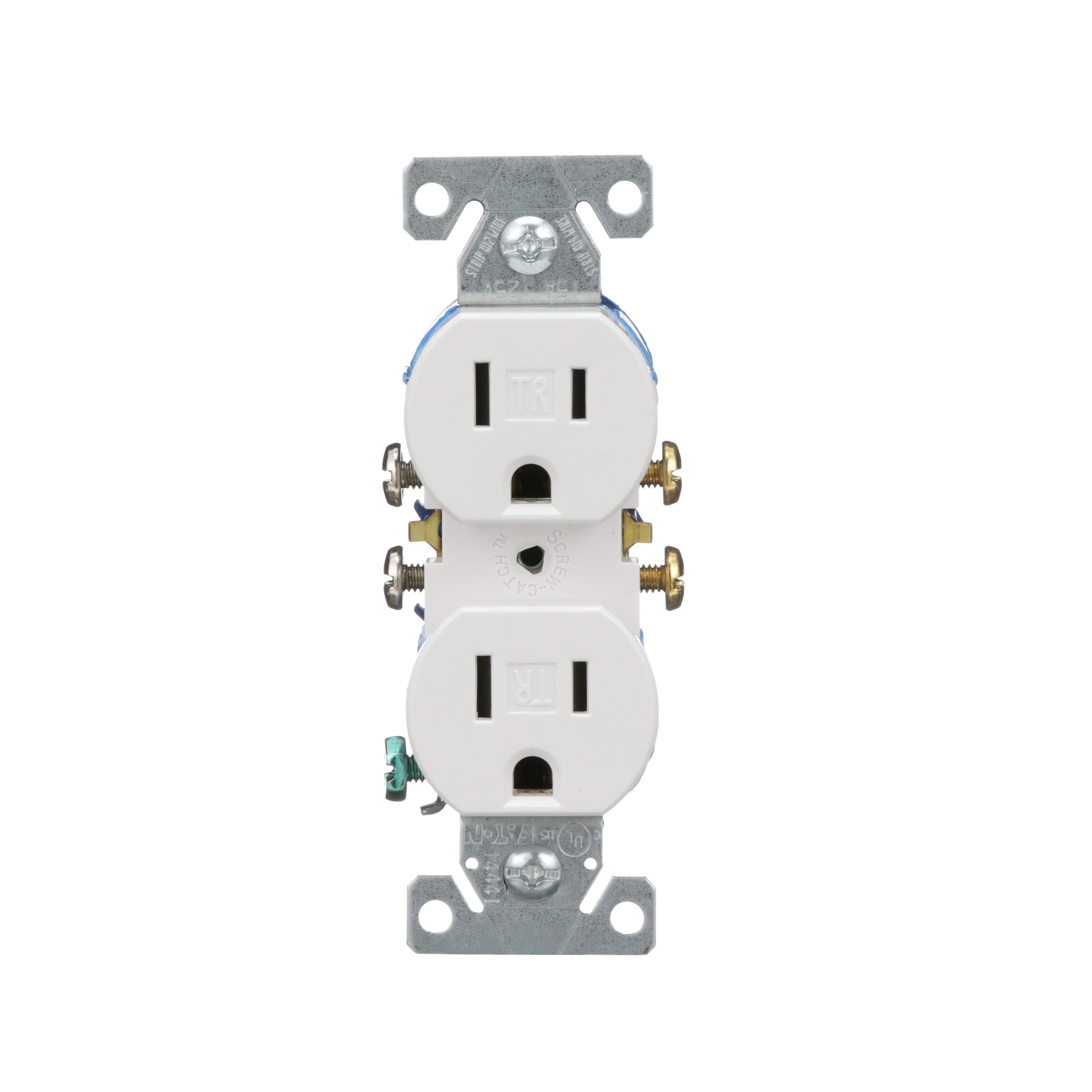

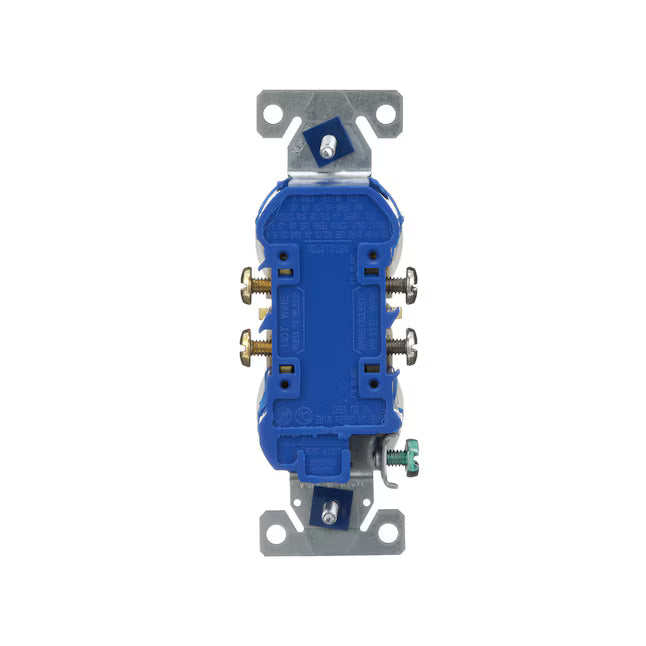

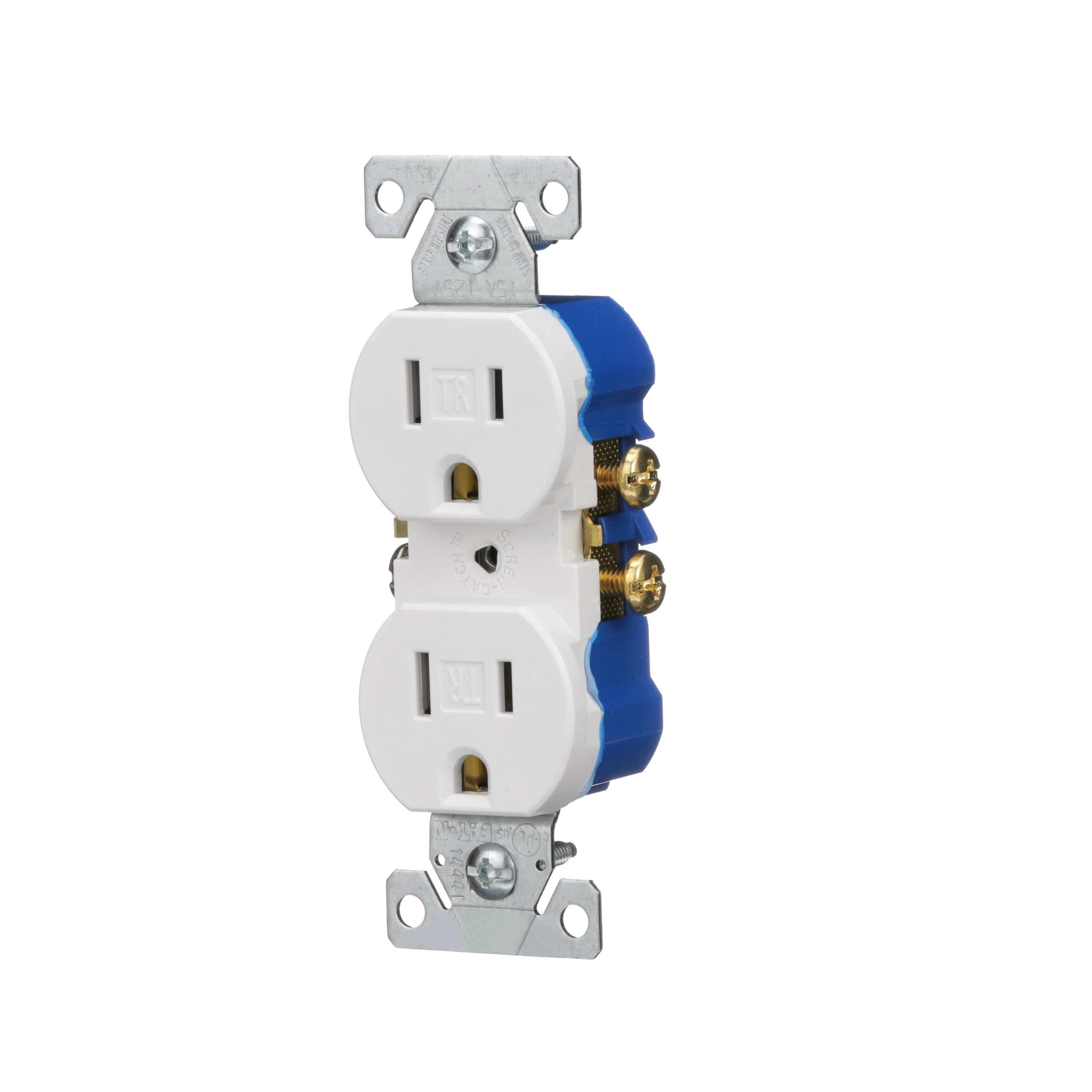

Eaton 15 -Amp White 125-volt Tamper Resistant Residential Duplex Outlet- Case of 10
Product specifications
| Device type |
Receptacle
|
| Amperage Rating |
15A
|
| Voltage rating |
125V
|
| Contact material |
Brass
|
| Features |
Tamper resistant
10-pack |
| Application |
Residential
|
| Device grade |
Standard grade
|
| Wiring method |
Side and push
|
| Number of wires |
Three-wire
|
| Mounting method |
Flush
|
| Number of poles |
Two-pole
|
| Style type |
Standard
|
| Color |
White
|
| Connection type |
Screw
|
| Allowable wire size |
#14-10 AWG (Copper OR Copper Clad Aluminum Only)
|
| NEMA configuration |
5-15R
|
| Torque rating |
14 lbf-inch
|
| Design type |
Straight blade
|
| Face/body material |
Impact-resistant thermoplastic face
PVC Body |
| Receptacle type |
Duplex
|
| Product Name |
Eaton residential grade duplex receptacle
|
| Catalog Number |
TR270W-10-L
|
| UPC |
032664749957
|
| Product Length/Depth |
1.24 in
|
| Product Height |
4 in
|
| Product Width |
0.79 in
|
| Product Weight |
0.01 lb
|
| Certifications |
NOM
cULus Listed |
